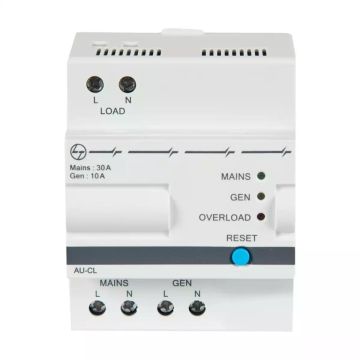

Lauritz Knudsen AU ACCL, EB/DG: 30A/1.5A | 1 Pole with Neutral | 230V AC | Automatic Changeover with Current Limiter | Single Phase | Works with all types of generators* | Quick & Seamless transition from power supply to generator & vice versa
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU ACCL, EB/DG: 30A/1.5A | 1 Pole with Neutral | 230V AC | Automatic Changeover with Current Limiter | Single Phase | Works with all types of generators* | Quick & Seamless transition from power supply to generator & vice versa
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU ACCL EB 30A/DG 1.5A 1P+N 230V AC is a compact & efficient modular device designed for auxiliary control & circuit management in electrical installations. It is suitable for residential, commercial, & light industrial applications where precise control & protection of circuits are required.
With a 1P+N configuration & 230V AC rating, the device provides effective control of both phase & neutral conductors. The auxiliary rating of 1.5A enables enhanced flexibility in control & signaling applications.
How the Device Works
This device operates as a control & auxiliary protection component within an electrical system:
• Supports switching & control of electrical circuits
• Assists in auxiliary operations such as signaling or control integration
• Provides isolation for phase & neutral conductors
• Enhances system control & operational efficiency
It can be integrated into distribution boards or control systems to support reliable circuit operation & monitoring.
Electrical Configuration
• Rated current: 30A (main reference)
• Auxiliary rating: 1.5A
• Poles: 1P+N (Single phase + neutral)
• Rated voltage: 230V AC
• Function: Auxiliary control & protection
• Application: Circuit control, monitoring, & auxiliary switching
Construction & Design
The device is engineered for compactness & reliable performance:
• Modular DIN rail mountable design
• Compact structure for optimized panel space
• High-quality internal components for stable operation
• Designed for integration with electrical & automation systems
• Robust construction for long service life
Safety & Protection
• Supports safe & efficient control of electrical circuits
• Ensures proper isolation of phase & neutral
• Enhances reliability of auxiliary & control circuits
• Reduces risks associated with improper switching
• Improves overall electrical system safety
Mounting & Durability
• DIN rail mounting for quick & easy installation
• Suitable for distribution boards & control panels
• Compact modular construction
• Designed for long-term reliability
• Performs consistently under standard operating conditions
Application Domains
• Residential electrical distribution systems
• Commercial installations
• Control panels & auxiliary circuits
• Automation & monitoring systems
• Electrical infrastructure protection
Key Features
• 30A rated modular auxiliary device
• 1.5A auxiliary control rating
• 1P+N configuration for single phase systems
• 230V AC operation
• Supports control, monitoring, & switching functions
• Compact DIN rail mountable design
• Reliable & durable construction
Applications
• Distribution boards
• Control & automation panels
• Residential electrical systems
• Commercial installations
• Auxiliary circuit control & protection
FAQs
1. What is the purpose of this device?
Ans: It is used for auxiliary control, switching, & protection in electrical circuits.
2. What does 1P+N mean?
Ans: It means the device controls both phase & neutral conductors in a single-phase system.
3. What is the significance of 1.5A auxiliary rating?
Ans: It allows additional flexibility for low-current control & signaling applications.
4. Where can this device be used?
Ans: It can be used in residential, commercial, & control panel installations.
5. How is it installed?
Ans: It is mounted on a DIN rail inside a distribution board or panel.
6. Can it be used in automation systems?
Ans: Yes, it is suitable for auxiliary control & integration in automation systems.
7. Why is this device important?
Ans: It enhances control, safety, & efficiency in electrical circuit management.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -5°C to +50°C |
| Electrical life (Operating Cylces) | 6,000 |
| Tightening Torque | 1.1Nm |
| Termination capacity | 10 Sq. mm (Rigid) 6 Sq. mm (Flexible) |
| No. of Poles | 1P+N |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Impulse Voltage | 2.5kV |
| Rated Conditional SC Current | 3kA |
| Current Rating | EB 30A/DG 1.5A |
| Rated operational voltage (Ue) | 230V |
| Conformance to Standards | IEC 60947-6, IEC 60947-3 |
| Length(mm) | 65.4 |
| Height(mm) | 90.5 |
| Breadth(mm) | 72 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
