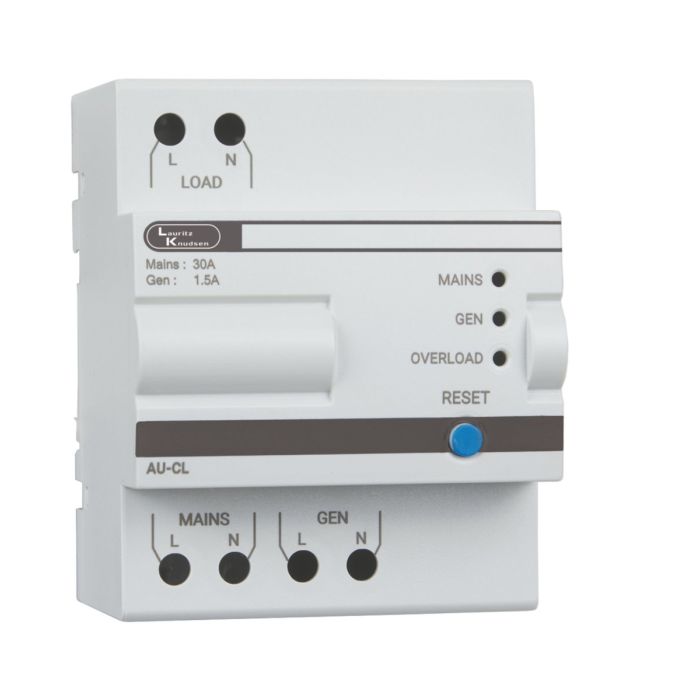

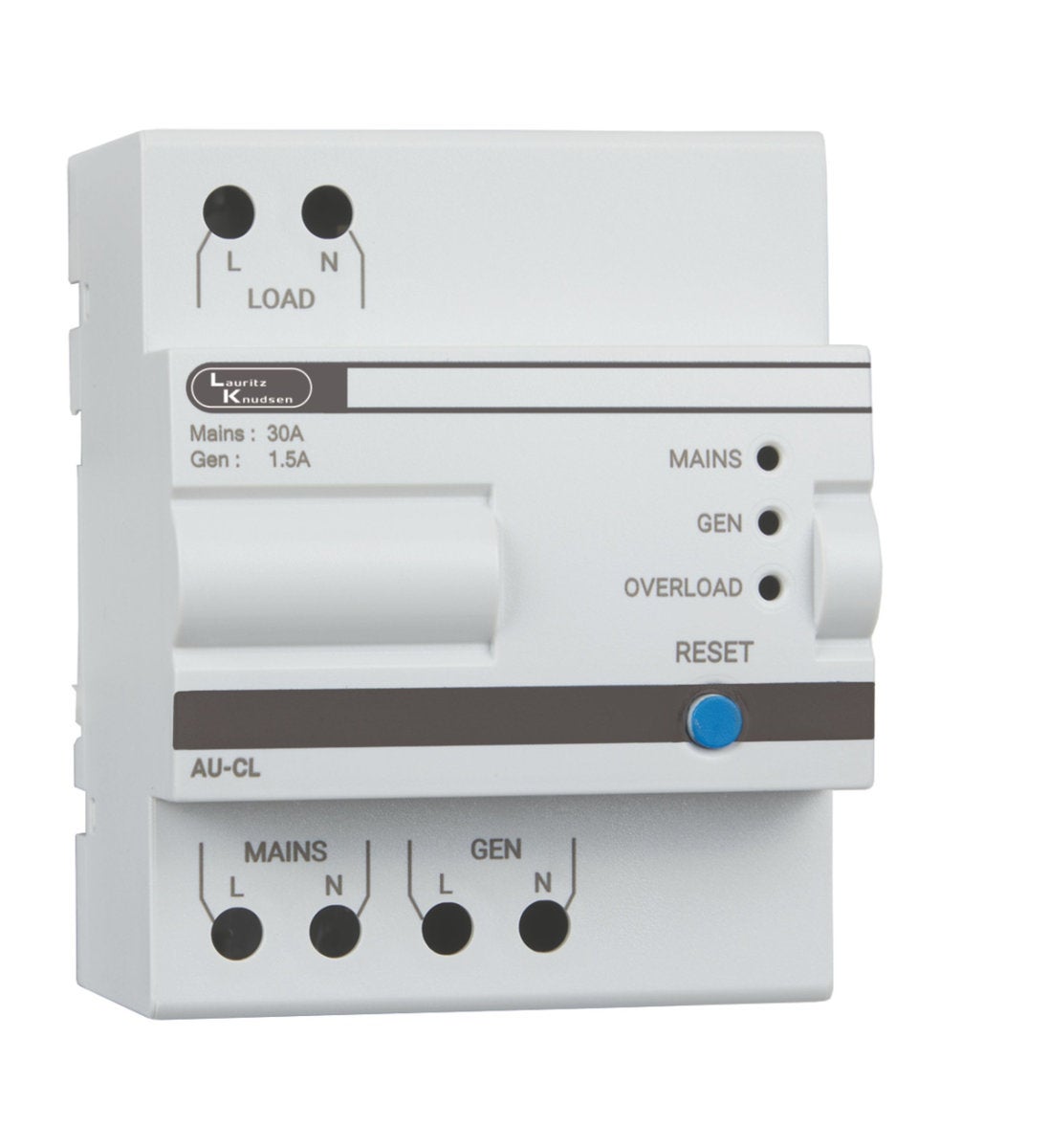

Lauritz Knudsen AU ACCL, EB/DG: 30A/15A | 1 Pole with Neutral | 230V AC | Automatic Changeover with Current Limiter | Single Phase | Works with all types of generators* | Quick & Seamless transition from power supply to generator & vice versa
SKU :
AUCL01030015
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
AUCL01030015
Lauritz Knudsen AU ACCL, EB/DG: 30A/15A | 1 Pole with Neutral | 230V AC | Automatic Changeover with Current Limiter | Single Phase | Works with all types of generators* | Quick & Seamless transition from power supply to generator & vice versa
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹2,930.00
₹1,773.54
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Disclaimer:
Following the brand transition from L&T Switchgear to Lauritz Knudsen effective 29 May 2024, products supplied by sellers may carry either the L&T or Lauritz Knudsen brand name depending on stock availability.
Show More
Lauritz Knudsen AU ACCL, EB/DG: 30A/15A | 1 Pole with Neutral | 230V AC | Automatic Changeover with Current Limiter | Single Phase | Works with all types of generators* | Quick & Seamless transition from power supply to generator & vice versa
₹2,930.00
₹1,773.54
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen ACCL switches the load to back-up/Generator supply when mains (default) supply is disrupted, limiting the supply to the genset rating of ACCL
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -5°C to +50°C |
| Electrical life (Operating Cylces) | 6,000 |
| Tightening Torque | 1.1Nm |
| Termination capacity | 10 Sq. mm (Rigid) 6 Sq. mm (Flexible) |
| No. of Poles | 1P+N |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Impulse Voltage | 2.5kV |
| Rated Conditional SC Current | 3kA |
| Current Rating | EB 30A/DG 15A |
| Rated operational voltage (Ue) | 230V |
| Conformance to Standards | IEC 60947-6, IEC 60947-3 |
| Length(mm) | 65.4 |
| Height(mm) | 90.5 |
| Breadth(mm) | 72 |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
