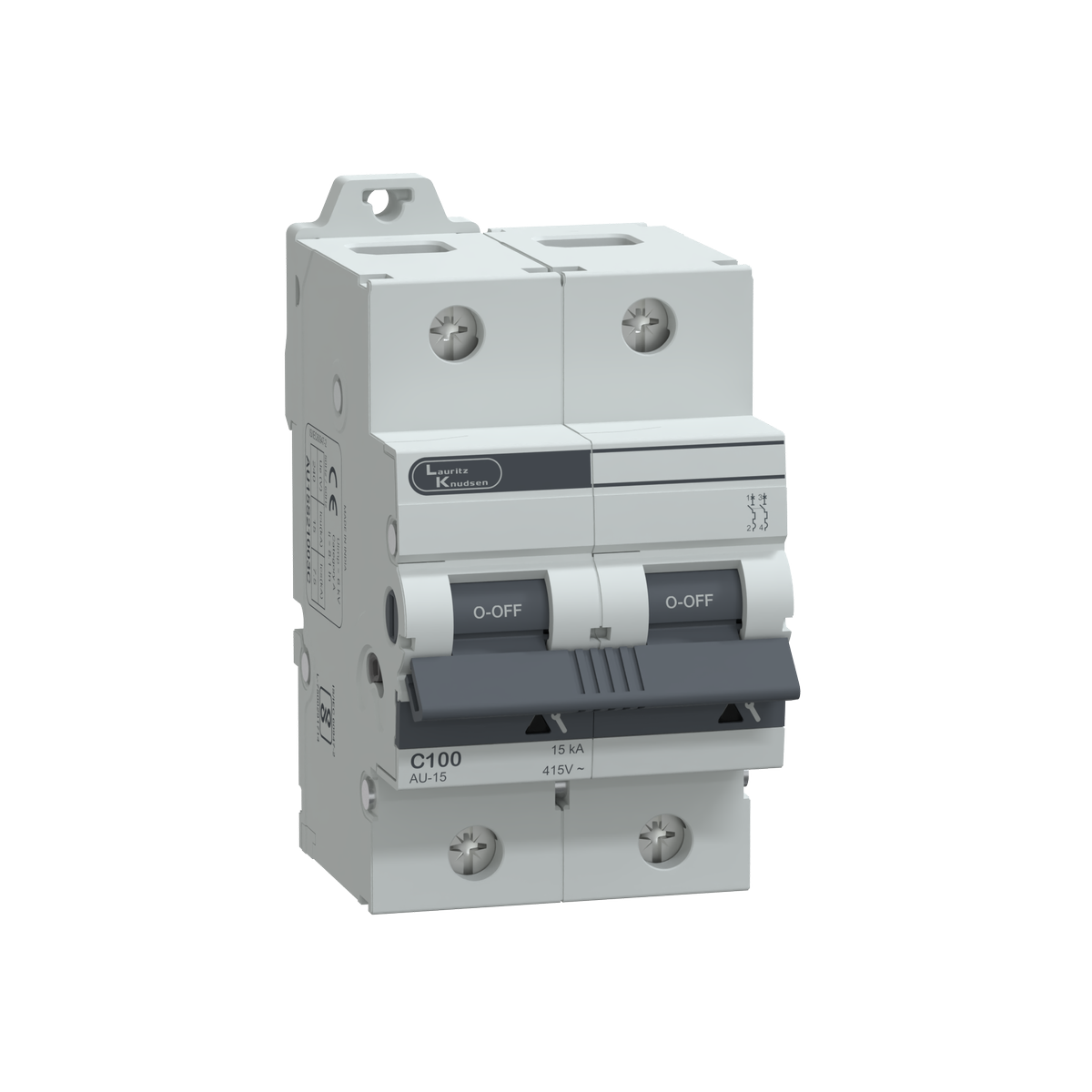

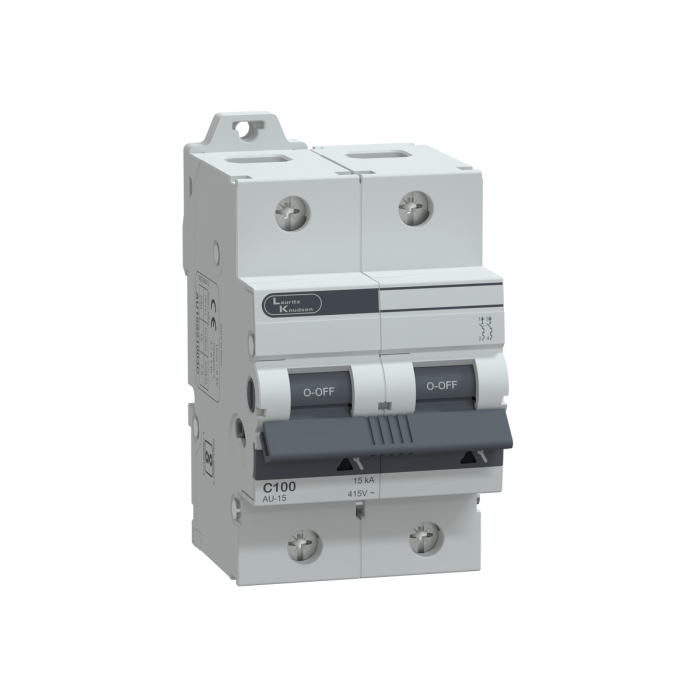

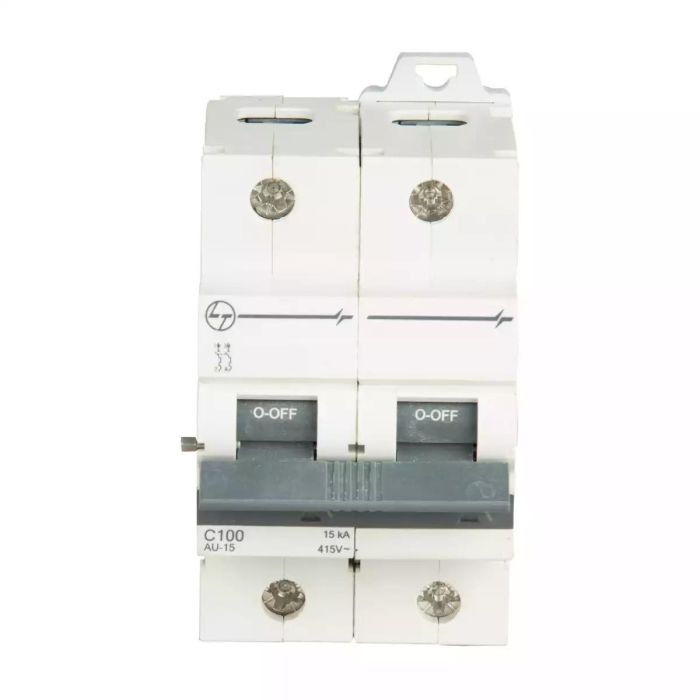

Lauritz Knudsen AU HR MCB, 2 Pole, C Curve, 15kA, 100A, 240V | Suitable for Isolation | Protection Degree - IP 20
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU HR MCB, 2 Pole, C Curve, 15kA, 100A, 240V | Suitable for Isolation | Protection Degree - IP 20
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU HR MCB 100A DP 240V AC 15kA C Curve is a high-capacity Miniature Circuit Breaker designed to provide dependable protection against overload & short circuit conditions. It is ideal for residential, commercial, & industrial applications requiring high current capacity along with enhanced circuit safety.
With a 100A rating & a high breaking capacity of 15kA, this MCB ensures safe disconnection even under severe fault conditions. The double pole configuration provides protection & isolation of both phase & neutral conductors, ensuring maximum safety.
How the MCB Works
This MCB ensures protection through intelligent monitoring & tripping:
• Continuously monitors current flow in the circuit
• Trips automatically under overload conditions
• Disconnects instantly in case of short circuit faults
• Isolates both phase & neutral simultaneously
This provides complete circuit protection & ensures safe operation of connected loads.
Electrical Configuration
• Rated current: 100A
• Poles: Double pole (DP)
• Rated voltage: 240V AC
• Breaking capacity: 15kA
• Tripping curve: C Curve
• Function: Overload & short circuit protection
• Application: High-capacity single-phase circuits
Construction & Design
The MCB is engineered for high performance & durability:
• Double pole design for full circuit isolation
• High 15kA breaking capacity for heavy fault conditions
• C Curve tripping suitable for inductive & moderate inrush loads
• Compact modular design for DIN rail mounting
• Efficient arc extinguishing system
• Consistent & reliable tripping mechanism
Safety & Protection
• Protects against overload & short circuit faults
• Ensures complete isolation of phase & neutral
• Reduces risk of damage to electrical systems & equipment
• Enhances reliability & safety of installations
• Supports safe maintenance & circuit handling
Mounting & Durability
• DIN rail mountable for easy installation
• Suitable for distribution boards & control panels
• Compact modular construction
• Designed for long mechanical & electrical lifespan
• Reliable under continuous & high-load conditions
Application Domains
• Residential electrical distribution
• Commercial power systems
• Industrial installations
• Motor & inductive load circuits
• High current single-phase applications
Key Features
• 100A rated MCB for high load applications
• Double pole (DP) design for phase & neutral protection
• 15kA high breaking capacity
• C Curve for inductive & moderate inrush loads
• Reliable overload & short circuit protection
• DIN rail mountable compact design
• Durable & long-lasting construction
Applications
• Residential distribution boards
• Commercial electrical systems
• Industrial control panels
• Motor & machinery circuits
• High load single-phase power systems
FAQs
1. What does DP mean in this MCB?
Ans: DP (Double Pole) means the breaker disconnects both phase & neutral simultaneously for complete isolation.
2. What is the significance of 15kA breaking capacity?
Ans: It ensures safe interruption of high fault currents up to 15kA.
3. Why use a C Curve MCB?
Ans: C Curve is suitable for circuits with moderate inrush currents such as motors & inductive loads.
4. Where is a 100A DP MCB used?
Ans: It is used in high capacity single-phase circuits in residential, commercial, & industrial systems.
5. Does this MCB protect both conductors?
Ans: Yes, it protects & isolates both phase & neutral.
6. How is it installed?
Ans: It is mounted on a DIN rail inside a distribution board.
7. Why is a DP MCB important?
Ans: It ensures higher safety by completely isolating the circuit during faults or maintenance.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60° C |
| Electrical life (Operating Cylces) | 5,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 70 Sq. mm (Rigid) 50 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 15kA |
| Rated Impulse Voltage | 6kV |
| Current Rating | 100A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 60947-2 |
| Tripping Characteristic | C Curve |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 52.6 |
