main product photo

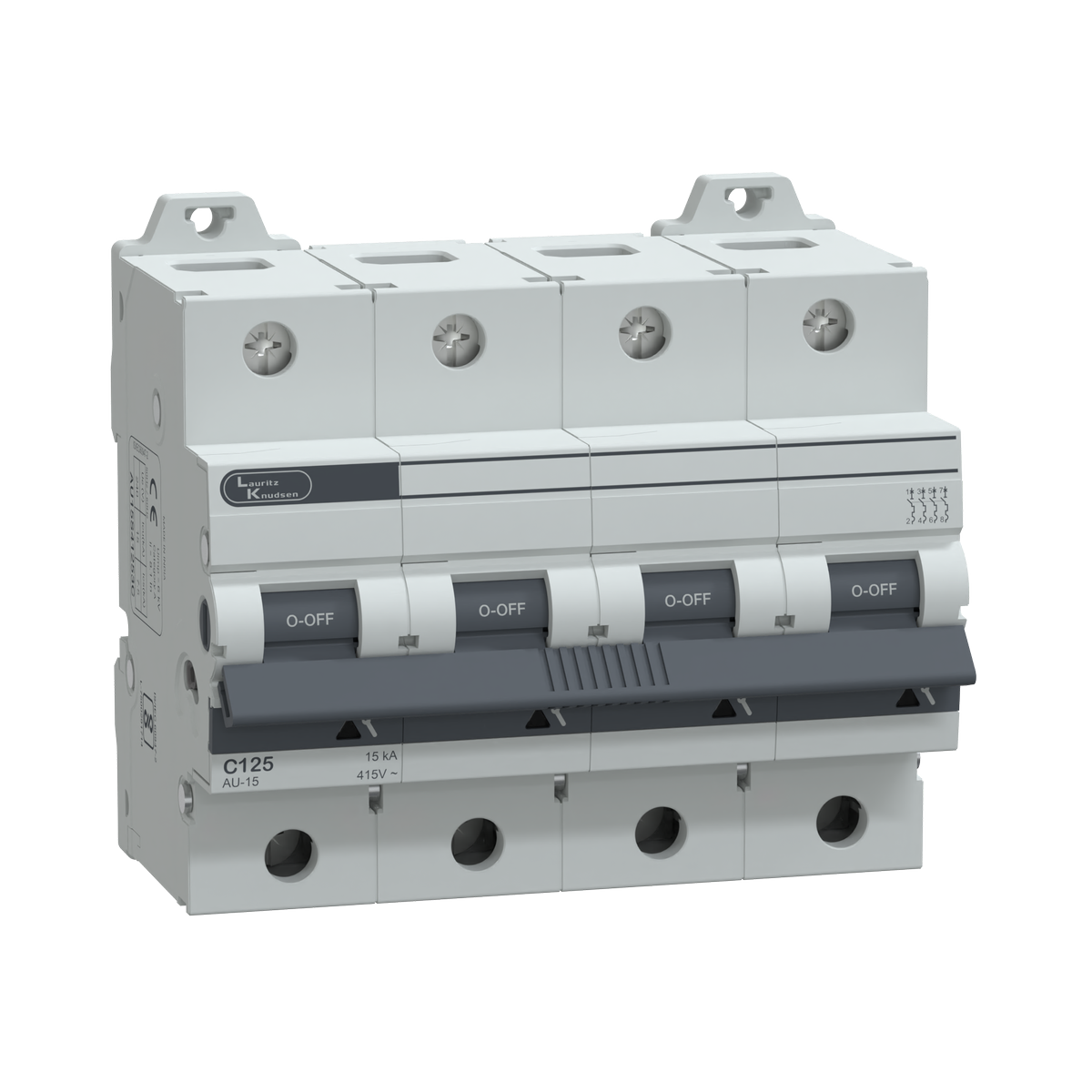

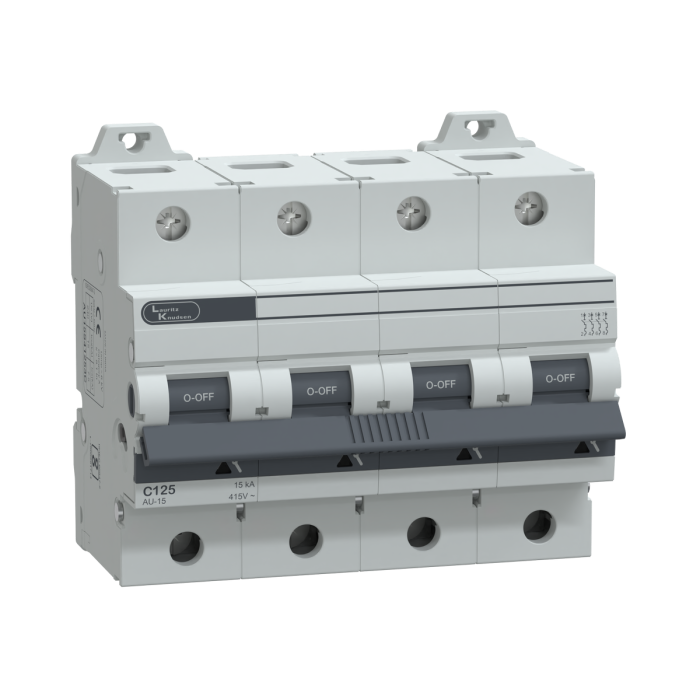

AU HR MCB 125A FP 415V AC 15kA C Curve

AU15S41253C
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • The MCB is a vital protection device. It is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.

Product Details

Discount Percentage Between 0-10 %
Operating Temperature Range -25°C to +60° C
Electrical life (Operating Cylces) 5,000
Tightening Torque 4Nm
Termination capacity 70 Sq. mm (Rigid) 50 Sq. mm (Flexible)
Mechanical Life (Operating Cycles) 20,000
No. of Poles FP
Rated Insulation Voltage Ui (V) 500V
Rated Frequency 50Hz/60Hz
Rated Short-circuit Breaking Capacity 15kA
Rated Impulse Voltage 6kV
Current Rating 125A
Rated operational voltage (Ue) 415V
Conformance to Standards IEC 60947-2
Tripping Characteristic C Curve
Length(mm) 77.5
Height(mm) 100.6
Breadth(mm) 105.2

Related Posts

No Related Posts

Seller Information

Documents

Extended Warranty

Reviews

Write Your Own Review
This is a required field
You're reviewing: AU HR MCB 125A FP 415V AC 15kA C Curve
* Required Field
loader
Loading...

check-circle You submitted your review for moderation.

Customer Who Purchased This Product Also Bought

AU HR MCB 100A TP 415V AC 15kA C Curve
AU15S31003C
Price starting from
₹10,105.00
₹4,531.08
AU HR MCB 100A FP 415V AC 15kA C Curve
AU15S41003C
Price starting from
₹12,870.00
₹5,770.91
AU HR MCB 80A SP 240V AC 15kA C Curve
AU15S10803C
Price starting from
₹2,710.00
₹1,215.16

The AU HR 125 Amp MCB FP 415V AC 15kA C Curve is a high-performance Miniature Circuit Breaker (MCB) designed to safeguard electrical circuits from overloads and short circuits. With a current rating of 125 amps and a breaking capacity of 15kA, this MCB is essential for ensuring the protection and stability of high-power electrical systems.

Features and Benefits

Technical Specifications

Applications

The AU HR MCB 125A is ideal for high-power residential and commercial applications, including lighting circuits, distribution boards, and industrial equipment. It effectively protects circuits from overloads and short circuits, ensuring operational reliability and safety in various environments.

Installation and Usage

Installing the AU HR MCB 125A involves mounting it into a standard DIN rail within an electrical panel. Ensure all connections are secure and follow safety protocols to avoid electrical hazards. Regular maintenance and testing are recommended to confirm the MCB's functionality and performance.

Price and Availability

When looking for the most affordable prices, Lauritz Knudsen Electrical & Automation (Formerly L&T Switchgear) Smartshop is the best place to buy AU HR MCB 125A. We also offer discounts on bulk purchases.
