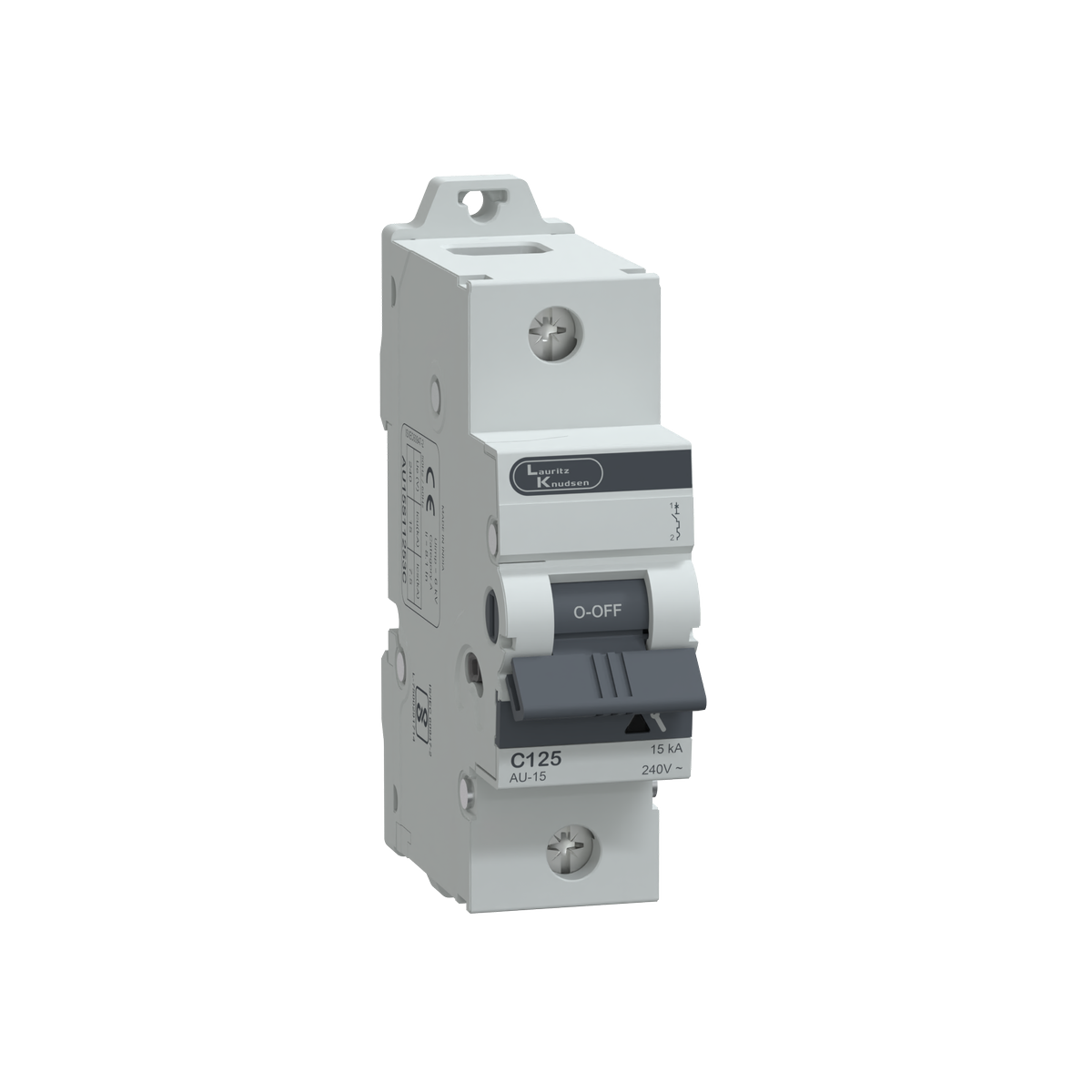

AU HR MCB 125A SP 240V AC 15kA C Curve

In stock
SKU
AU15S11253C
Regular Price ₹3,070.00 Special Price ₹2,535.82
17% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
AU HR MCB 125A SP 240V AC 15kA C Curve

HSN Code - 85362030

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • The MCB is a vital protection device. It is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.
Technical Specifications
  • Discount Percentage
    Between 0-10 %
  • Operating Temperature Range
    -25°C to +60° C
  • Electrical life (Operating Cylces)
    5,000
  • Tightening Torque
    4Nm
  • Termination capacity
    70 Sq. mm (Rigid) 50 Sq. mm (Flexible)
  • Mechanical Life (Operating Cycles)
    20,000
  • No. of Poles
    SP
  • Rated Insulation Voltage Ui (V)
    500V
  • Rated Frequency
    50Hz/60Hz
  • Rated Short-circuit Breaking Capacity
    15kA
  • Rated Impulse Voltage
    6kV
  • Current Rating
    125A
  • Rated operational voltage (Ue)
    240V
  • Conformance to Standards
    IEC 60947-2
  • Tripping Characteristic
    C Curve
  • Length(mm)
    77.5
  • Height(mm)
    100.6
  • Breadth(mm)
    26.3
