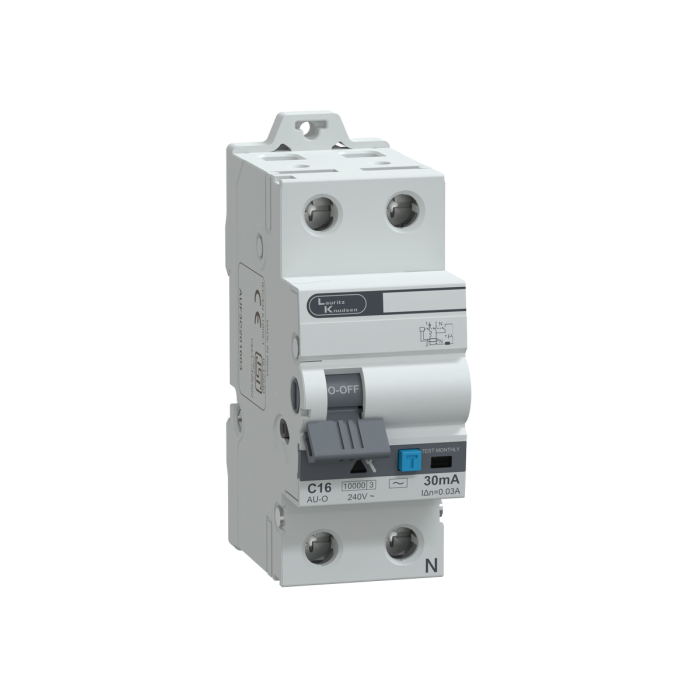

Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, 10 kA, 30 mA, 16A, 240V | Suitable for Isolation| with Enhanced Safety
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, 10 kA, 30 mA, 16A, 240V | Suitable for Isolation| with Enhanced Safety
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCBO 16A DP 240V AC 10kA 30mA C Curve is a compact protection device that combines the functions of both an MCB and an RCCB into a single unit. It provides protection against overload, short circuit, and earth leakage faults for electrical circuits.
With a 16A current rating, this RCBO is suitable for medium load applications such as socket circuits and small equipment loads. The 30mA sensitivity is widely used for general safety protection in residential and commercial installations.
How the RCBO Works
This RCBO operates as a combined protection system:
- Detects overload and short circuit faults similar to an MCB
- Detects earth leakage currents similar to an RCCB
- Trips automatically when abnormal conditions are detected
- Disconnects both live and neutral through double pole operation
This ensures complete circuit isolation and enhances safety during fault conditions.
Electrical Configuration
- Rated current: 16A
- Poles: Double pole (DP)
- Rated voltage: 240V AC
- Breaking capacity: 10kA
- Sensitivity: 30mA
- Trip curve: C Curve
- Application: Overload, short circuit, and earth leakage protection
Construction and Design
The RCBO is designed for reliable performance and easy installation:
- Integrated MCB and RCCB functionality in one unit
- Modular design suitable for DIN rail mounting
- Compact structure for efficient panel space usage
- High mechanical and electrical endurance
- Designed for consistent and precise tripping
Safety and Protection
- Protects against overload and short circuit faults
- 30mA sensitivity provides protection against indirect electric shock
- Detects and isolates earth leakage currents
- Double pole isolation ensures complete disconnection
- Reduces risk of electrical hazards and equipment damage
Mounting and Durability
- DIN rail mounting for easy installation in distribution boards
- Compact modular construction
- Suitable for repeated operation and fault scenarios
- Built for long term durability and stable performance
Application Domains
- Residential electrical distribution systems
- Commercial installations
- Socket and lighting circuits
- General purpose protection circuits
- Distribution boards requiring combined protection
Key Features
- 16A rated RCBO for medium load circuits
- Double pole design for complete circuit isolation
- 10kA breaking capacity for reliable fault interruption
- 30mA sensitivity for general electrical safety
- C curve characteristic for standard applications
- Combines MCB and RCCB functions in one device
- DIN rail compatible for easy installation
Applications
- Residential distribution boards
- Commercial electrical systems
- Lighting circuits
- Socket outlets
- General protection installations
FAQs
1. What is an RCBO?
Ans: An RCBO is a device that combines the functions of an MCB and an RCCB to protect against overload, short circuit, and earth leakage faults.
2. What does 30mA sensitivity mean?
Ans: It indicates the leakage current level at which the device trips and is commonly used for protection against electric shock in general applications.
3. What is the advantage of a double pole RCBO?
Ans: It disconnects both live and neutral, ensuring complete circuit isolation during faults.
4. What does 10kA breaking capacity indicate?
Ans: It represents the maximum fault current the device can safely interrupt.
5. What is a C curve characteristic?
Ans: It is suitable for general purpose circuits with moderate inrush currents such as lighting and socket loads.
6. Where is this RCBO used?
Ans: It is used in residential and commercial installations requiring combined electrical protection.
7. Is installation easy?
Ans: Yes, it is designed for quick installation on standard DIN rails.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 16A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 61009-1, IS 12640-2 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 35 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
Description
About the Product
The AU RCBO 16A DP 240V AC 10kA 30mA C Curve is a compact protection device that combines the functions of both an MCB and an RCCB into a single unit. It provides protection against overload, short circuit, and earth leakage faults for electrical circuits.
With a 16A current rating, this RCBO is suitable for medium load applications such as socket circuits and small equipment loads. The 30mA sensitivity is widely used for general safety protection in residential and commercial installations.
How the RCBO Works
This RCBO operates as a combined protection system:
- Detects overload and short circuit faults similar to an MCB
- Detects earth leakage currents similar to an RCCB
- Trips automatically when abnormal conditions are detected
- Disconnects both live and neutral through double pole operation
This ensures complete circuit isolation and enhances safety during fault conditions.
Electrical Configuration
- Rated current: 16A
- Poles: Double pole (DP)
- Rated voltage: 240V AC
- Breaking capacity: 10kA
- Sensitivity: 30mA
- Trip curve: C Curve
- Application: Overload, short circuit, and earth leakage protection
Construction and Design
The RCBO is designed for reliable performance and easy installation:
- Integrated MCB and RCCB functionality in one unit
- Modular design suitable for DIN rail mounting
- Compact structure for efficient panel space usage
- High mechanical and electrical endurance
- Designed for consistent and precise tripping
Safety and Protection
- Protects against overload and short circuit faults
- 30mA sensitivity provides protection against indirect electric shock
- Detects and isolates earth leakage currents
- Double pole isolation ensures complete disconnection
- Reduces risk of electrical hazards and equipment damage
Mounting and Durability
- DIN rail mounting for easy installation in distribution boards
- Compact modular construction
- Suitable for repeated operation and fault scenarios
- Built for long term durability and stable performance
Application Domains
- Residential electrical distribution systems
- Commercial installations
- Socket and lighting circuits
- General purpose protection circuits
- Distribution boards requiring combined protection
Key Features
- 16A rated RCBO for medium load circuits
- Double pole design for complete circuit isolation
- 10kA breaking capacity for reliable fault interruption
- 30mA sensitivity for general electrical safety
- C curve characteristic for standard applications
- Combines MCB and RCCB functions in one device
- DIN rail compatible for easy installation
Applications
- Residential distribution boards
- Commercial electrical systems
- Lighting circuits
- Socket outlets
- General protection installations
FAQs
1. What is an RCBO?
Ans: An RCBO is a device that combines the functions of an MCB and an RCCB to protect against overload, short circuit, and earth leakage faults.
2. What does 30mA sensitivity mean?
Ans: It indicates the leakage current level at which the device trips and is commonly used for protection against electric shock in general applications.
3. What is the advantage of a double pole RCBO?
Ans: It disconnects both live and neutral, ensuring complete circuit isolation during faults.
4. What does 10kA breaking capacity indicate?
Ans: It represents the maximum fault current the device can safely interrupt.
5. What is a C curve characteristic?
Ans: It is suitable for general purpose circuits with moderate inrush currents such as lighting and socket loads.
6. Where is this RCBO used?
Ans: It is used in residential and commercial installations requiring combined electrical protection.
7. Is installation easy?
Ans: Yes, it is designed for quick installation on standard DIN rails.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 16A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 61009-1, IS 12640-2 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 35 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
