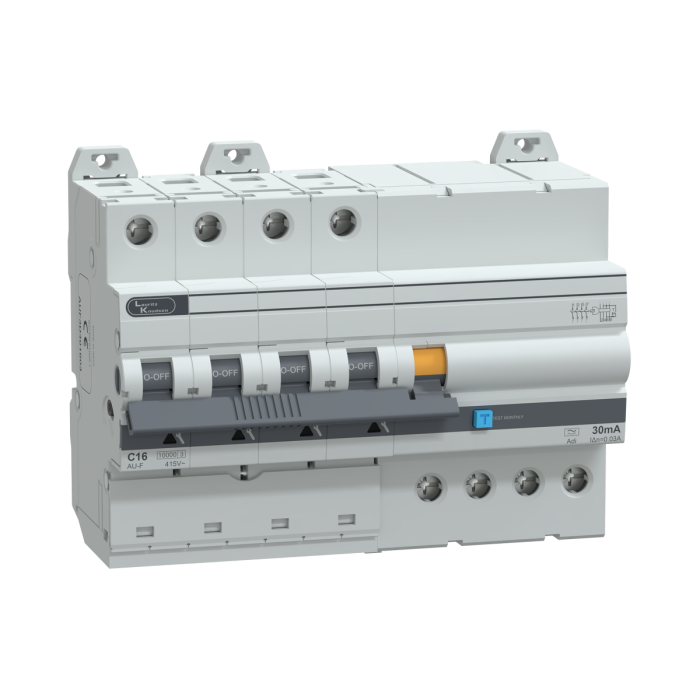

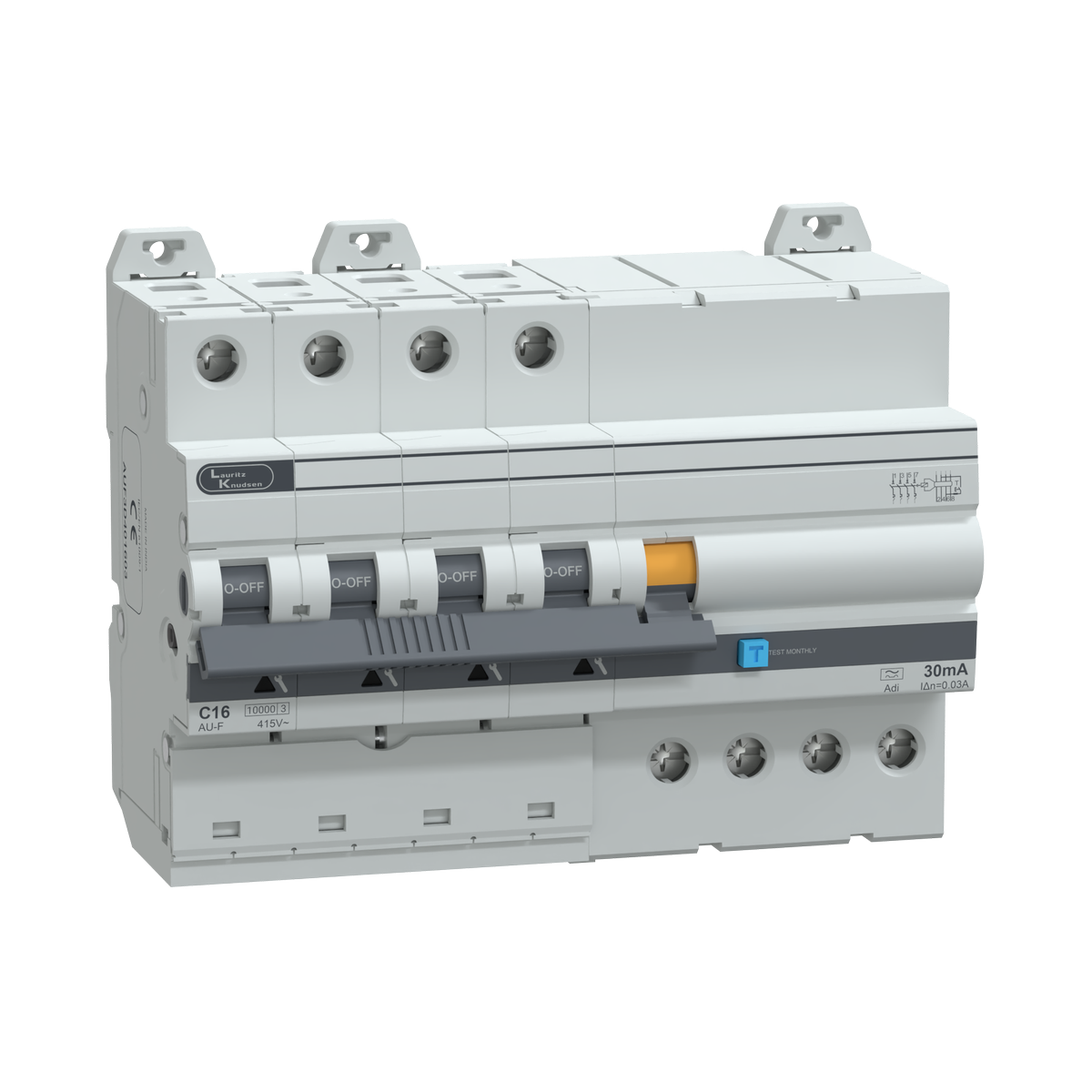

Lauritz Knudsen AU Standard RCBO, 4 Pole, C Curve, Adi 10 kA, 30 mA, 16A, 415V | Suitable for isolation | with Added Immunity
SKU :
AUF3D401603
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
AUF3D401603
Lauritz Knudsen AU Standard RCBO, 4 Pole, C Curve, Adi 10 kA, 30 mA, 16A, 415V | Suitable for isolation | with Added Immunity
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹7,480.00
₹5,295.84
Incl. Tax
To View the best prices please Log In / Register
Shipping:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping:
Out of stock
Lauritz Knudsen AU Standard RCBO, 4 Pole, C Curve, Adi 10 kA, 30 mA, 16A, 415V | Suitable for isolation | with Added Immunity
₹7,480.00
₹5,295.84
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen RCBOs provides protection from overload, short-circuit and earth leakage.Type Adi : Suitable for AC + Pulsating DC (Type A) + Harmonics
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 16A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 103.8 |
| Breadth(mm) | 131.25 |
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Description
- Lauritz Knudsen RCBOs provides protection from overload, short-circuit and earth leakage.Type Adi : Suitable for AC + Pulsating DC (Type A) + Harmonics
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 16A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 103.8 |
| Breadth(mm) | 131.25 |
