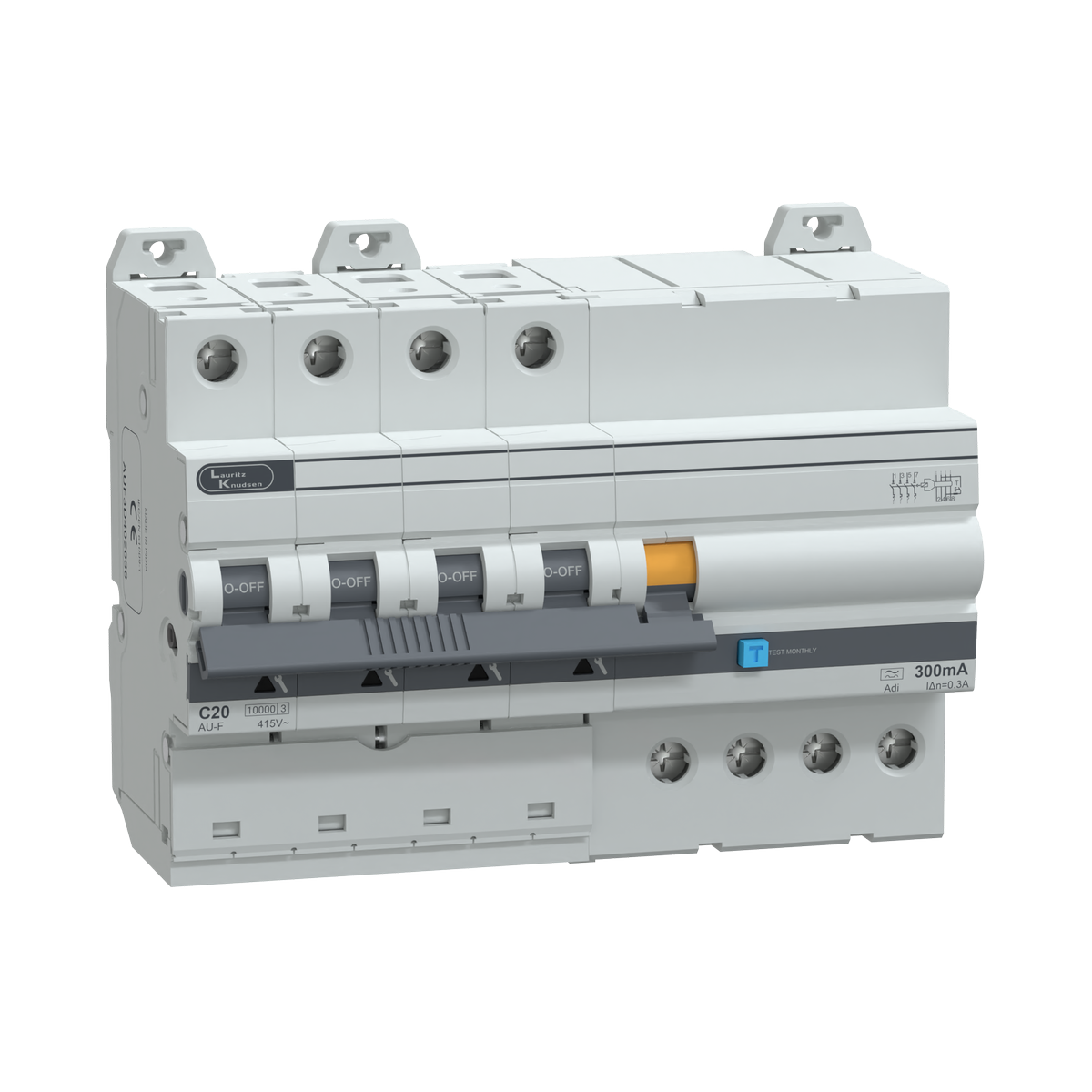

Lauritz Knudsen AU standard RCBO, 4 Pole, C Curve, Adi 10kA, 300mA, 20A, 415V
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCBO 20A FP 415V ADI 10kA 300mA C Curve is a four pole protection device that combines MCB & RCCB functionality into a single compact unit. It is enhanced with ADI (Advanced Detection Intelligence) technology, ensuring accurate leakage detection & reliable protection in three phase electrical systems.
With a 20A current rating, this RCBO is suitable for medium load applications such as machinery, control panels, & commercial installations. The 300mA leakage sensitivity is typically used for fire protection & equipment safety where higher leakage thresholds are required.
How the RCBO Works
This four pole RCBO operates as a complete protection system:
• Detects overload & short circuit conditions similar to an MCB
• Detects earth leakage currents using advanced sensing technology
• Trips automatically when abnormal conditions are detected
• Disconnects all three phases & neutral simultaneously
The ADI technology enhances detection precision, reduces nuisance tripping, & improves response time for dependable performance.
Electrical Configuration
• Rated current: 20A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Technology: ADI (Advanced Detection / Intelligent leakage sensing)
• Breaking capacity: 10kA
• Sensitivity: 300mA
• Trip curve: C Curve
• Application: Overload, short circuit, & earth leakage protection
Construction & Design
The RCBO is engineered for reliable performance in three phase systems:
• Integrated MCB & RCCB functionality in one device
• Advanced ADI system for enhanced leakage detection
• Modular design compatible with DIN rail mounting
• Compact construction for optimized panel space usage
• High mechanical & electrical endurance
• Designed for accurate & stable tripping performance
Safety & Protection
• Protects against overload & short circuit faults
• Detects earth leakage currents to enhance system safety
• 300mA sensitivity suitable for fire protection & equipment safety
• Four pole isolation ensures complete disconnection of all phases & neutral
• Reduces risk of electrical hazards, fire, & equipment damage
Mounting & Durability
• DIN rail mounting for easy installation• Suitable for three phase distribution boards & panels
• Compact modular construction
• Designed for repeated operation & fault conditions
• Built for long term durability & reliable performance
Application Domains
• Three phase distribution systems
• Industrial electrical installations
• Commercial buildings
• Machinery & control panels
• Fire protection & equipment safety systems
Key Features
• 20A rated RCBO for three phase medium load circuits
• Four pole design for complete phase & neutral isolation
• 10kA breaking capacity for reliable fault interruption
• 300mA sensitivity for fire & equipment protection
• ADI technology for advanced leakage detection
• C curve characteristic for general purpose applications
• Combines MCB & RCCB functions in one unit
• DIN rail compatible for easy installation
Applications
• Industrial panels
• Commercial electrical systems
• Machinery circuits
• Distribution boards
• Electrical control & protection systems
FAQs
1. What is ADI in this RCBO?
Ans: ADI refers to advanced detection technology that improves leakage current sensing accuracy & ensures reliable tripping performance.
2. What does FP mean?
Ans: FP stands for four pole, meaning it disconnects all three phases & neutral simultaneously.
3. What does 300mA sensitivity indicate?
Ans: It indicates the leakage current level at which the device trips & is typically used for fire protection & equipment safety.
4. Why use a four pole RCBO?
Ans: It ensures complete isolation of all phases & neutral in three phase systems during faults.
5. What does 10kA breaking capacity mean?
Ans: It represents the maximum fault current the device can safely interrupt.
6. What is a C curve characteristic?
Ans: It is suitable for circuits with moderate inrush currents such as motors & industrial equipment.
7. Where can this RCBO be used?
Ans: It is suitable for industrial & commercial three phase installations requiring reliable combined electrical protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 20A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 300mA |
| Length(mm) | 77.5 |
| Height(mm) | 103.8 |
| Breadth(mm) | 131.25 |
