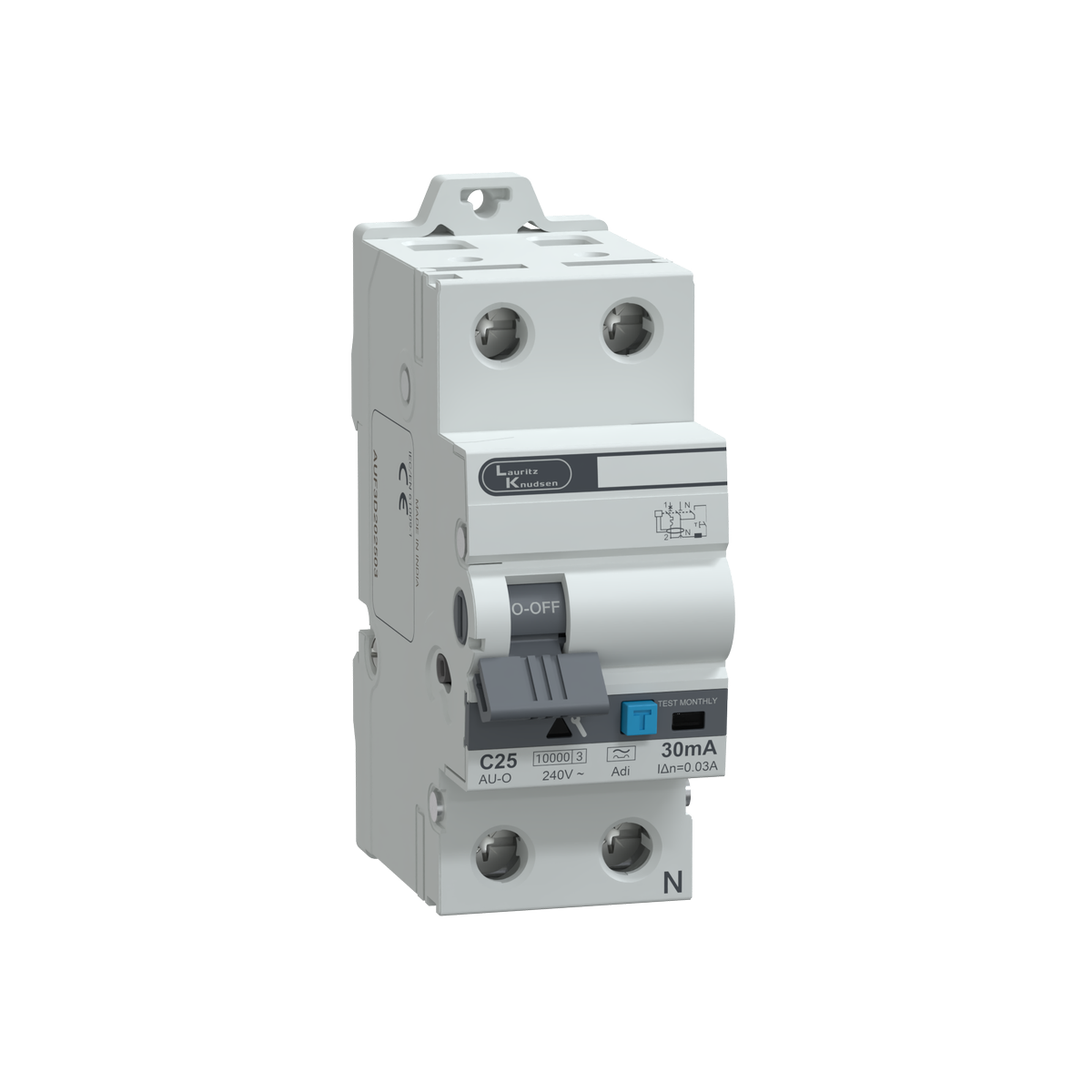

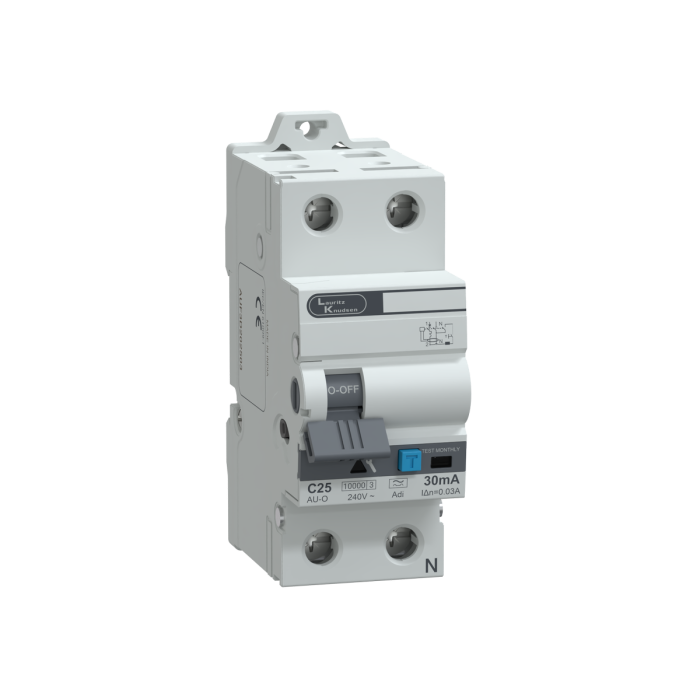

Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, Adi 10 kA, 30 mA, 25A, 240V | Suitable for isolation | with Added Immunity
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, Adi 10 kA, 30 mA, 25A, 240V | Suitable for isolation | with Added Immunity
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCBO 25A DP 240V ADI 10kA 30mA C Curve is a compact & reliable protection device that integrates both MCB & RCCB functionality into a single unit. It features ADI (Advanced Detection Intelligence) technology, ensuring accurate leakage detection & dependable protection in single phase electrical systems.
With a 25A current rating, this RCBO is ideal for medium load applications such as socket circuits, appliances, & small machinery. The 30mA leakage sensitivity provides effective protection against electric shock, making it suitable for residential & commercial safety-critical installations.
How the RCBO Works
This RCBO operates as a complete protection system:
• Detects overload & short circuit conditions similar to an MCB
• Detects earth leakage currents using advanced sensing technology
• Trips automatically when abnormal conditions occur
• Disconnects both live & neutral through double pole operation
The ADI technology enhances detection accuracy, improves response speed, & reduces nuisance tripping for stable & reliable performance.
Electrical Configuration
• Rated current: 25A
• Poles: Double pole (DP)
• Rated voltage: 240V AC
• Technology: ADI (Advanced Detection / Intelligent leakage sensing)
• Breaking capacity: 10kA
• Sensitivity: 30mA
• Trip curve: C Curve
• Application: Overload, short circuit, & earth leakage protection
Construction & Design
The RCBO is engineered for durability & efficient operation:
• Integrated MCB & RCCB functionality in one compact device
• Advanced ADI system for improved leakage detection accuracy
• Modular design compatible with DIN rail mounting
• Compact construction for optimized panel space usage
• High mechanical & electrical endurance
• Designed for consistent & accurate tripping
Safety & Protection
• Protects against overload & short circuit faults
• 30mA sensitivity ensures protection against electric shock
• Detects earth leakage currents with high precision
• Double pole isolation ensures complete circuit disconnection
• Reduces risk of electrical hazards & equipment damage
Mounting & Durability
• DIN rail mounting for easy installation• Suitable for residential & commercial distribution boards
• Compact modular construction
• Designed for frequent operation & fault handling
• Built for long term durability & reliable performance
Application Domains
• Residential socket circuits
• Appliance & equipment circuits
• Commercial electrical installations
• Distribution boards
• Safety-critical power systems
Key Features
• 25A rated RCBO for medium load circuits
• Double pole design for complete circuit isolation
• 10kA breaking capacity for reliable fault interruption
• 30mA sensitivity for personnel safety
• ADI technology for advanced leakage detection
• C curve characteristic for general purpose applications
• Combines MCB & RCCB functions in one unit
• DIN rail compatible for easy installation
Applications
• Residential electrical systems
• Commercial installations
• Appliance circuits
• Distribution boards
• Electrical protection systems
FAQs
1. What is ADI in this RCBO?
Ans: ADI stands for advanced detection technology that improves leakage current sensing accuracy & ensures reliable tripping performance.
2. What is the use of a 25A RCBO?
Ans: It is used for medium load circuits such as sockets, appliances, & small equipment installations.
3. What does 30mA sensitivity indicate?
Ans: It provides protection against electric shock by detecting low leakage currents.
4. Why is double pole protection important?
Ans: It disconnects both live & neutral, ensuring complete circuit isolation during faults.
5. What does 10kA breaking capacity mean?
Ans: It represents the maximum fault current the device can safely interrupt.
6. What is a C curve characteristic?
Ans: It is suitable for circuits with moderate inrush currents such as appliances & general electrical loads.
7. Where can this RCBO be used?
Ans: It is suitable for residential & commercial installations requiring reliable combined electrical protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 25A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 35 |
