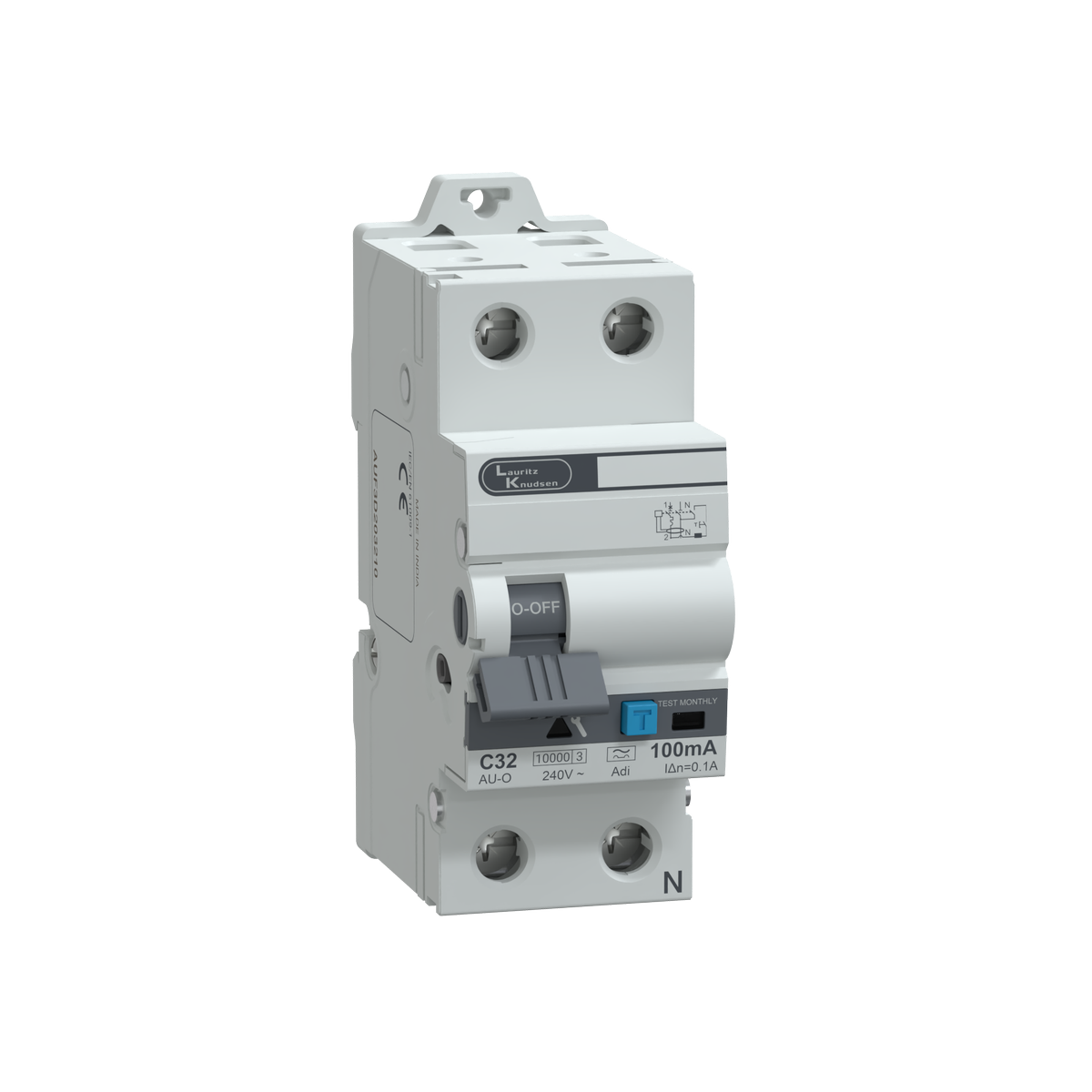

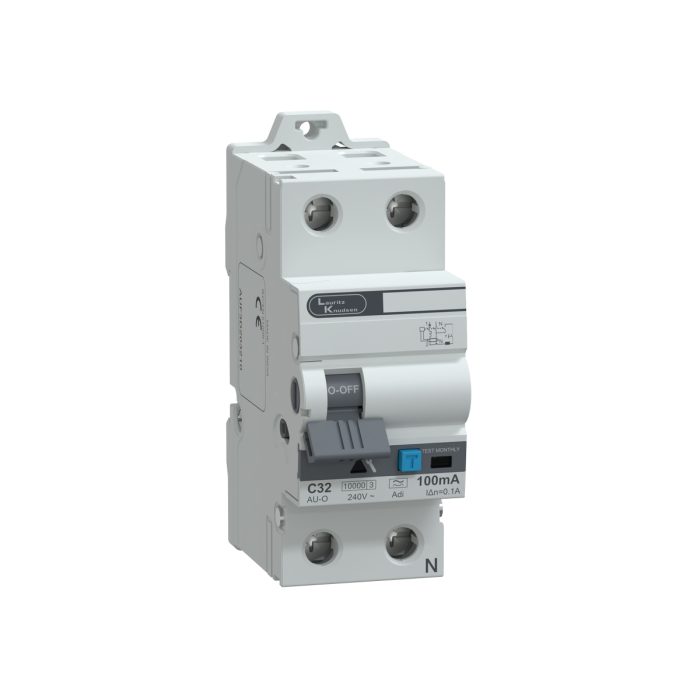

Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, Adi 10 kA, 100 mA, 32A, 240V | Suitable for isolation | with Added Immunity
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, Adi 10 kA, 100 mA, 32A, 240V | Suitable for isolation | with Added Immunity
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCBO 32A DP 240V ADI 10kA 100mA C Curve is a compact & high-performance protection device that integrates both MCB & RCCB functionalities into a single unit. It features ADI (Advanced Detection Intelligence) technology, providing enhanced accuracy & reliable protection in single phase electrical systems.
With a 32A current rating, this RCBO is ideal for medium to high load applications such as heavy appliances, socket circuits, & small machinery. The 100mA leakage sensitivity is typically used for equipment protection & fire safety where higher leakage thresholds are required.
How the RCBO Works
This RCBO functions as a complete protection system:
• Detects overload & short circuit faults similar to an MCB
• Detects earth leakage currents using advanced sensing technology
• Trips automatically when abnormal conditions occur
• Disconnects both live & neutral through double pole operation
The ADI technology improves detection accuracy, enhances response time, & reduces nuisance tripping, ensuring dependable system protection.
Electrical Configuration
• Rated current: 32A
• Poles: Double pole (DP)
• Rated voltage: 240V AC
• Technology: ADI (Advanced Detection / Intelligent leakage sensing)
• Breaking capacity: 10kA
• Sensitivity: 100mA
• Trip curve: C Curve
• Application: Overload, short circuit, & earth leakage protection
Construction & Design
The RCBO is engineered for efficient & durable performance:
• Integrated MCB & RCCB functionality in one compact device
• Advanced ADI system for accurate leakage detection
• Modular design compatible with DIN rail mounting
• Compact construction for optimized panel space utilization
• High mechanical & electrical endurance
• Designed for stable & consistent tripping performance
Safety & Protection
• Protects against overload & short circuit faults
• Detects earth leakage currents to safeguard equipment
• 100mA sensitivity suitable for fire prevention & system safety
• Double pole isolation ensures complete circuit disconnection
• Reduces risk of electrical hazards & equipment damage
Mounting & Durability
• DIN rail mounting for easy installation• Suitable for residential & commercial distribution boards
• Compact modular construction
• Designed for frequent operation & fault handling
• Built for long term durability & reliable performance
Application Domains
• Residential socket circuits
• Heavy appliance circuits
• Commercial electrical installations
• Distribution boards
• Equipment protection & fire safety systems
Key Features
• 32A rated RCBO for medium to high load circuits
• Double pole design for complete circuit isolation
• 10kA breaking capacity for reliable fault interruption
• 100mA sensitivity for equipment protection & fire safety
• ADI technology for advanced leakage detection
• C curve characteristic for general purpose applications
• Combines MCB & RCCB functions in one unit
• DIN rail compatible for easy installation
Applications
• Residential electrical systems
• Commercial installations
• Appliance & equipment circuits
• Distribution boards
• Electrical protection systems
FAQs
1. What is ADI in this RCBO?
Ans: ADI refers to advanced detection technology that improves leakage current sensing accuracy & ensures reliable tripping.
2. What is the use of a 32A RCBO?
Ans: It is used for medium to high load circuits such as heavy appliances, socket circuits, & small machinery.
3. What does 100mA sensitivity indicate?
Ans: It indicates the leakage current level at which the device trips & is mainly used for equipment protection & fire safety.
4. Why is double pole protection important?
Ans: It disconnects both live & neutral, ensuring complete circuit isolation during faults.
5. What does 10kA breaking capacity mean?
Ans: It represents the maximum fault current the device can safely interrupt.
6. What is a C curve characteristic?
Ans: It is suitable for circuits with moderate inrush currents such as appliances & general electrical loads.
7. Where can this RCBO be used?
Ans: It is suitable for residential & commercial installations requiring reliable combined electrical protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 32A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 100mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 35 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
