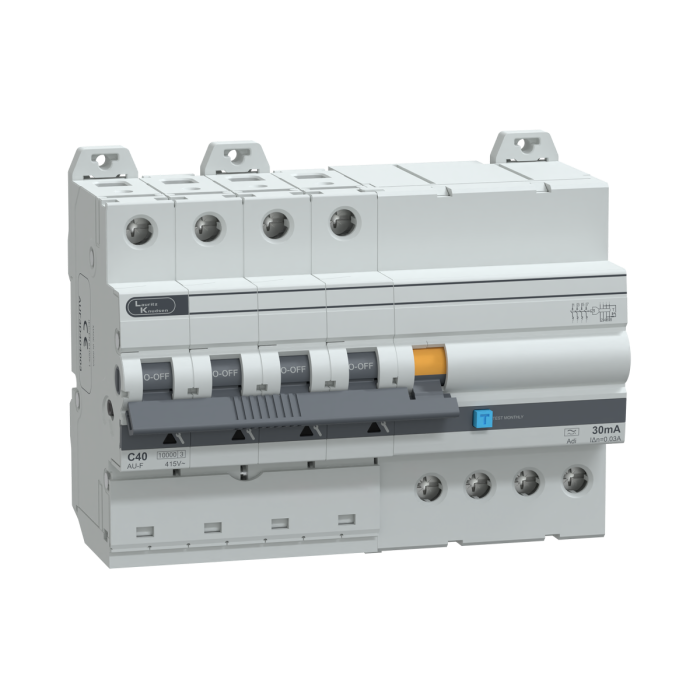

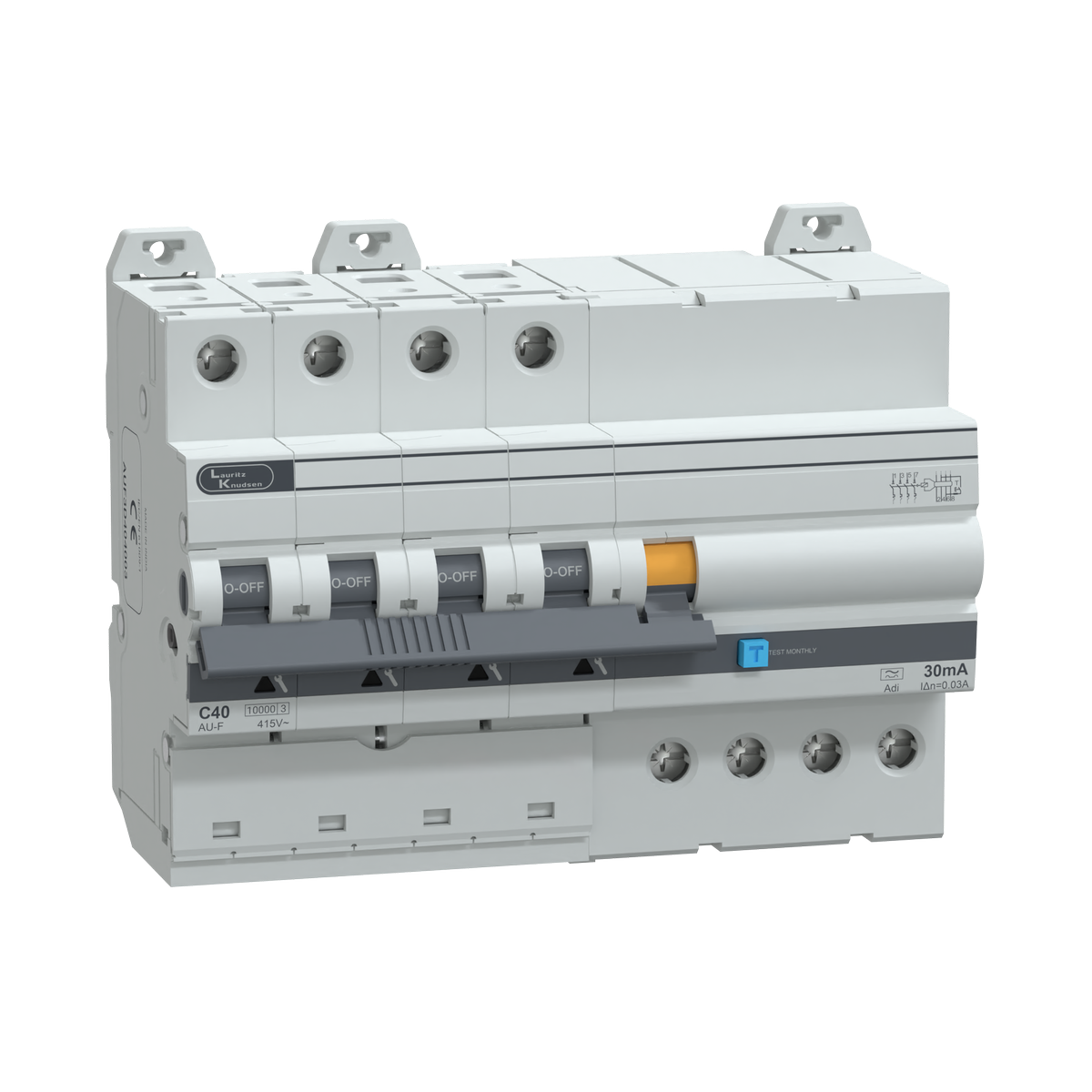

Lauritz Knudsen AU RCBO 40A FP 415V Adi 10kA 30mA C Curve
AUF3D404003
₹7,255.00
₹0.00
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
AUF3D404003
Lauritz Knudsen AU RCBO 40A FP 415V Adi 10kA 30mA C Curve
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Lauritz Knudsen AU RCBO 40A FP 415V Adi 10kA 30mA C Curve
₹7,255.00
₹0.00
Description
- Lauritz Knudsen RCBOs provides protection from overload, short-circuit and earth leakage.Type Adi : Suitable for AC + Pulsating DC (Type A) + Harmonics
Product Details
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 40A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 103.8 |
| Breadth(mm) | 131.25 |
