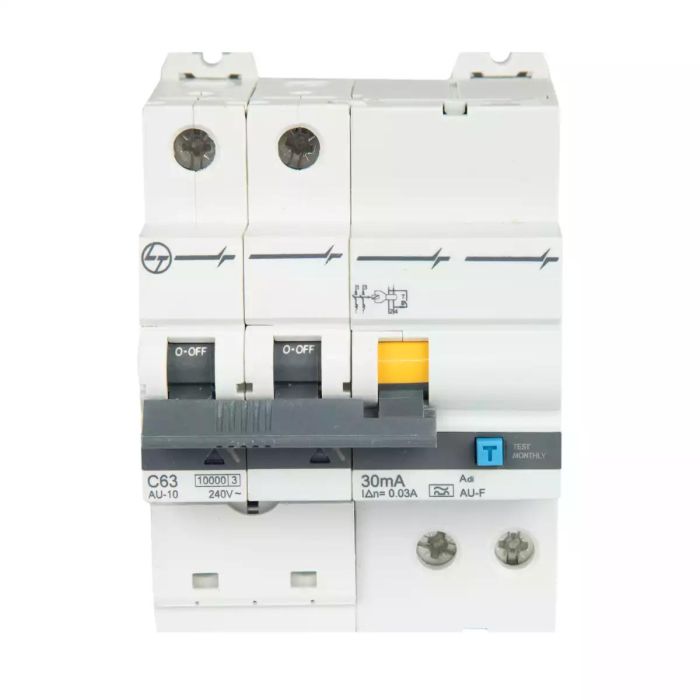

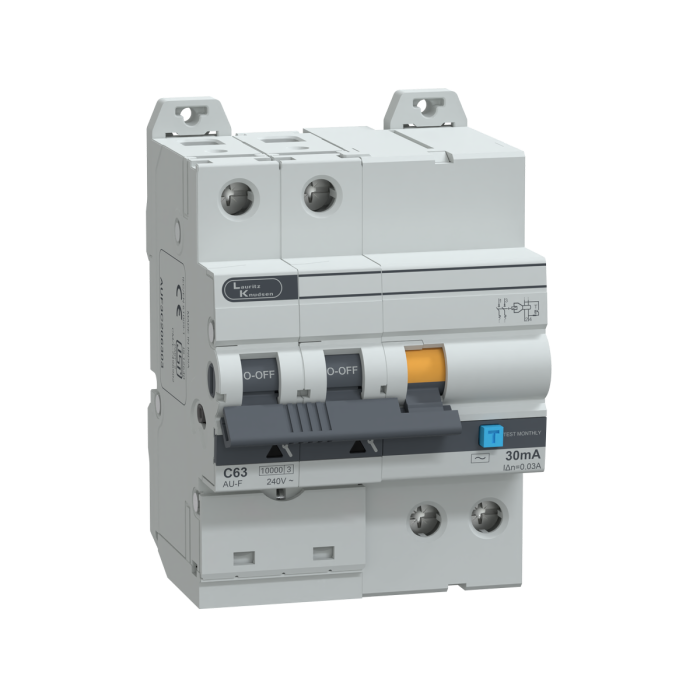

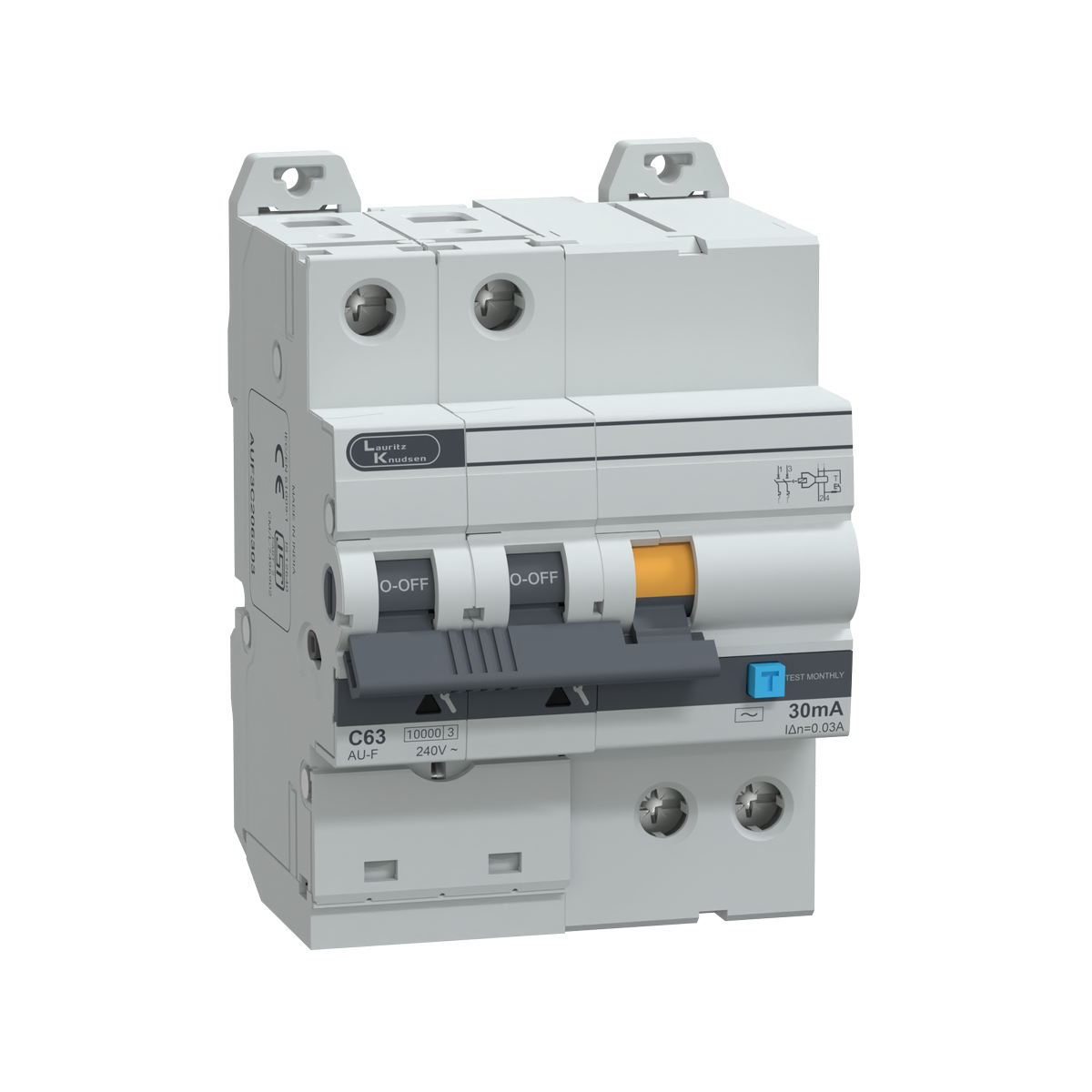

Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, 10 kA, 30 mA, 63A, 240V | Suitable for Isolation| with Enhanced Safety
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCBO 63A DP 240V AC 10kA 30mA C Curve is a high-capacity protection device that integrates both MCB & RCCB functionalities into a single unit. It is designed to protect electrical circuits from overload, short circuit, & earth leakage faults in high load applications.
With a 63A rating, this RCBO is suitable for heavy-duty circuits such as main power lines, large appliances, & industrial equipment. The 30mA leakage sensitivity provides effective protection against electric shock, making it suitable for safety-critical applications in residential, commercial, & industrial environments.
How the RCBO Works
This RCBO operates as a combined protection system:
• Detects overload & short circuit conditions similar to an MCB
• Detects earth leakage currents similar to an RCCB
• Automatically trips when abnormal conditions are detected
• Disconnects both live & neutral through double pole operation
This ensures complete circuit isolation & comprehensive protection against electrical faults.
Electrical Configuration
• Rated current: 63A
• Poles: Double pole (DP)
• Rated voltage: 240V AC
• Breaking capacity: 10kA
• Sensitivity: 30mA
• Trip curve: C Curve
• Application: Overload, short circuit, & earth leakage protection
Construction & Design
The RCBO is designed for robust performance & high load operation:
• Integrated MCB & RCCB functionality in one unit
• Modular design suitable for DIN rail mounting
• Compact construction despite high current rating
• High mechanical & electrical endurance
• Designed for stable & precise tripping under load conditions
Safety & Protection
• Provides protection against overload & short circuit faults
• 30mA sensitivity ensures protection against electric shock
• Detects & isolates earth leakage currents
• Double pole isolation ensures full circuit disconnection
• Reduces risk of electrical hazards, equipment damage, & fire
Mounting & Durability
• DIN rail mounting for easy installation in distribution boards• Designed for high load circuits & frequent operation
• Compact modular structure
• Built for long term durability & consistent performance
Application Domains
• Main distribution circuits
• Commercial electrical installations
• Industrial panels & systems
• Heavy appliance & equipment circuits
• High load power distribution systems
Key Features
• 63A rated RCBO for high load applications
• Double pole design for complete circuit isolation
• 10kA breaking capacity for reliable fault interruption
• 30mA sensitivity for electrical safety protection
• C curve characteristic suitable for general & power circuits
• Combines MCB & RCCB functions in one device
• DIN rail compatible for easy installation
Applications
• Main distribution boards
• Industrial electrical systems
• Commercial power installations
• Heavy machinery circuits
• High load appliance connections
FAQs
1. What is an RCBO?
Ans: An RCBO is a protective device combining MCB & RCCB functions to protect circuits from overload, short circuit, & earth leakage faults.
2. What does 30mA sensitivity indicate?
Ans: It indicates the leakage current threshold at which the device trips, providing protection against electric shock.
3. Why is a 63A RCBO used?
Ans: A 63A RCBO is used for high load circuits such as main supply lines & large equipment.
4. What is the benefit of double pole protection?
Ans: It disconnects both live & neutral, ensuring complete isolation during faults.
5. What does 10kA breaking capacity mean?
Ans: It is the maximum fault current the device can safely interrupt without damage.
6. What is a C curve RCBO suitable for?
Ans: C curve is suitable for circuits with moderate inrush currents such as motors & general electrical loads.
7. Is this RCBO suitable for industrial use?
Ans: Yes, it is ideal for commercial & industrial applications requiring high load protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 63A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 61009-1, IS 12640-2 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 103.6 |
| Breadth(mm) | 70 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
