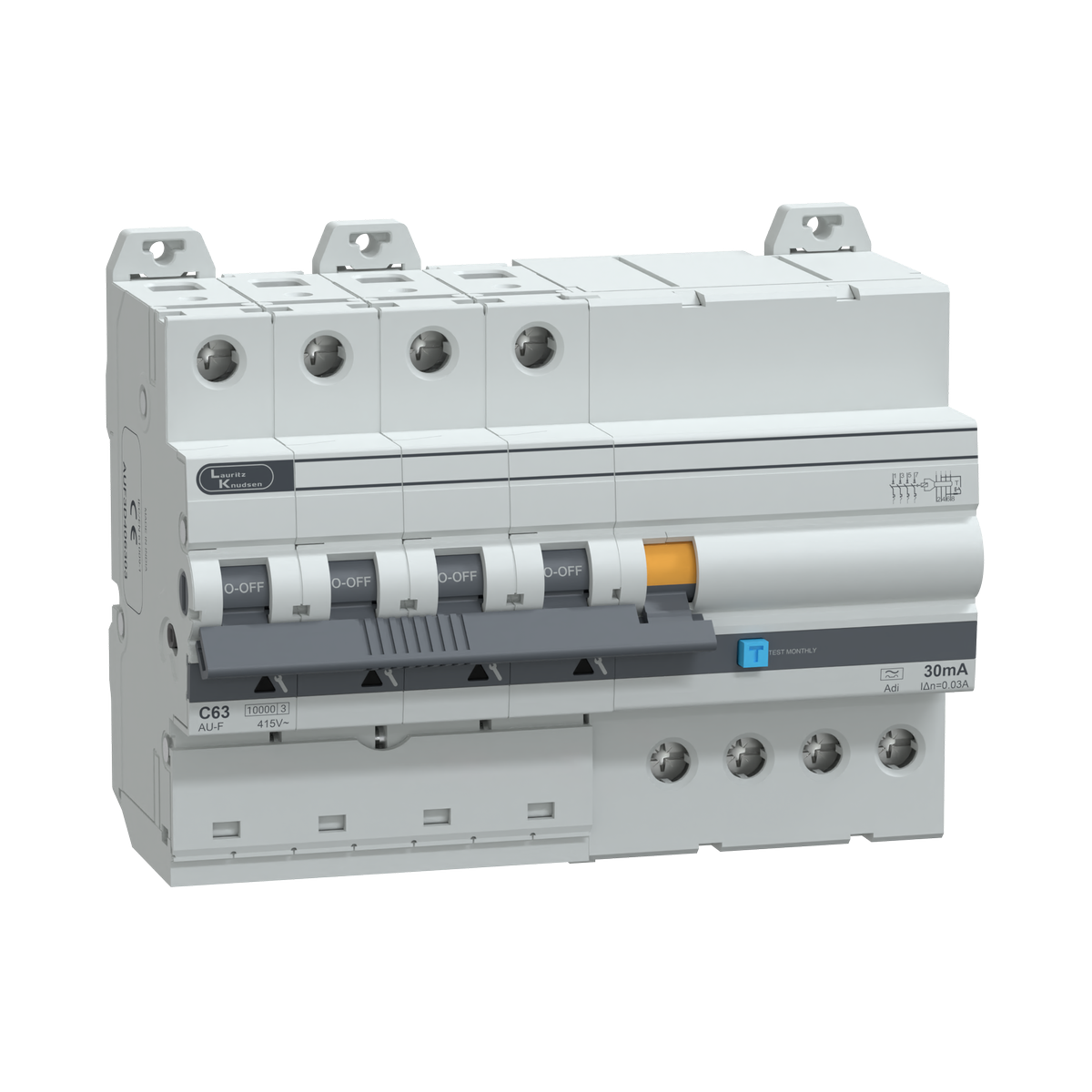

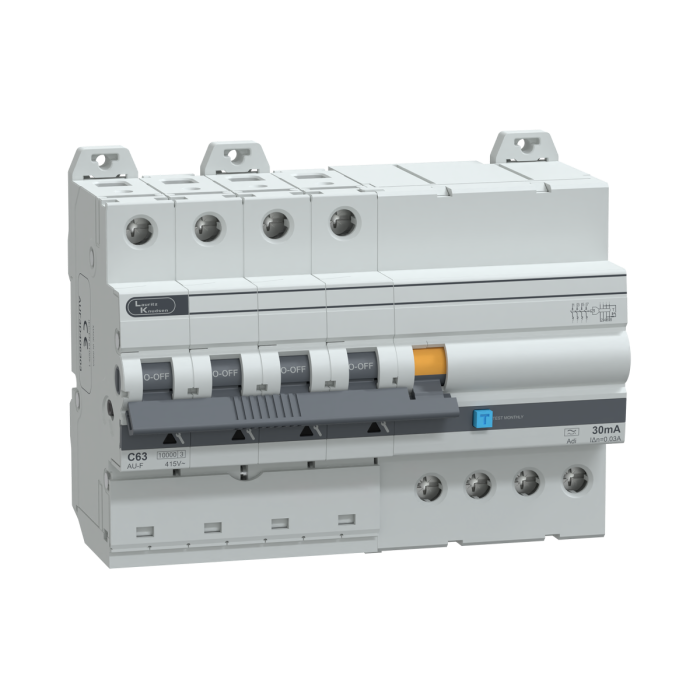

Lauritz Knudsen AU Standard RCBO, 4 Pole, C Curve, Adi 10 kA, 30 mA, 63A, 415V | Suitable for isolation | with Added Immunity
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCBO 63A FP 415V ADI 10kA 30mA C Curve is a high-capacity four pole protection device that combines MCB & RCCB functionalities into a single compact unit. It is enhanced with ADI (Advanced Detection Intelligence) technology, providing precise leakage detection & reliable protection in demanding three phase electrical systems.
With a 63A current rating, this RCBO is suitable for heavy-duty applications such as industrial machinery, commercial power systems, & main distribution panels. The 30mA leakage sensitivity ensures effective protection against electric shock, making it ideal for safety-critical installations.
How the RCBO Works
This four pole RCBO operates as a comprehensive protection system:
• Detects overload & short circuit faults similar to an MCB
• Detects earth leakage currents using advanced sensing technology
• Trips automatically when abnormal conditions occur
• Disconnects all three phases & neutral simultaneously
The ADI technology improves detection accuracy, enhances response speed, & minimizes nuisance tripping for reliable operation.
Electrical Configuration
• Rated current: 63A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Technology: ADI (Advanced Detection / Intelligent leakage sensing)
• Breaking capacity: 10kA
• Sensitivity: 30mA
• Trip curve: C Curve
• Application: Overload, short circuit, & earth leakage protection
Construction & Design
The RCBO is engineered for robust & efficient performance:
• Integrated MCB & RCCB functionality in one device
• Advanced ADI system for accurate leakage detection
• Modular design compatible with DIN rail mounting
• Compact construction for optimized panel space usage
• High mechanical & electrical endurance
• Designed for stable & precise tripping performance
Safety & Protection
• Protects against overload & short circuit faults
• 30mA sensitivity provides protection against electric shock
• Detects earth leakage currents for improved system safety
• Four pole isolation ensures complete disconnection of all phases & neutral
• Reduces risk of electrical hazards, fire, & equipment damage
Mounting & Durability
• DIN rail mounting for easy installation• Suitable for three phase distribution boards & industrial panels
• Compact modular structure
• Designed for frequent operation & fault conditions
• Built for long term durability & reliable performance
Application Domains
• Three phase distribution systems
• Industrial electrical installations
• Commercial power systems
• Heavy machinery & equipment circuits
• Main distribution panels
Key Features
• 63A rated RCBO for high load three phase circuits
• Four pole design for complete phase & neutral isolation
• 10kA breaking capacity for reliable fault interruption
• 30mA sensitivity for personnel safety
• ADI technology for advanced leakage detection
• C curve characteristic suitable for general & power circuits
• Combines MCB & RCCB functions in one unit
• DIN rail compatible for easy installation
Applications
• Industrial panels & machinery
• Commercial electrical systems
• Main distribution boards
• Heavy load power circuits
• Electrical control & protection systems
FAQs
1. What is ADI in this RCBO?
Ans: ADI refers to advanced detection technology that enhances leakage current sensing accuracy & ensures reliable tripping performance.
2. What does FP mean?
Ans: FP stands for four pole, meaning it disconnects all three phases & neutral simultaneously.
3. What does 30mA sensitivity indicate?
Ans: It provides protection against electric shock by detecting low leakage currents.
4. Why use a 63A RCBO?
Ans: It is used for high load applications such as main power distribution, industrial equipment, & commercial installations.
5. What does 10kA breaking capacity mean?
Ans: It represents the maximum fault current the device can safely interrupt.
6. What is a C curve characteristic?
Ans: It is suitable for circuits with moderate inrush currents like motors & industrial equipment.
7. Where can this RCBO be used?
Ans: It is ideal for industrial & commercial three phase installations requiring reliable combined electrical protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 63A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 103.8 |
| Breadth(mm) | 131.25 |
