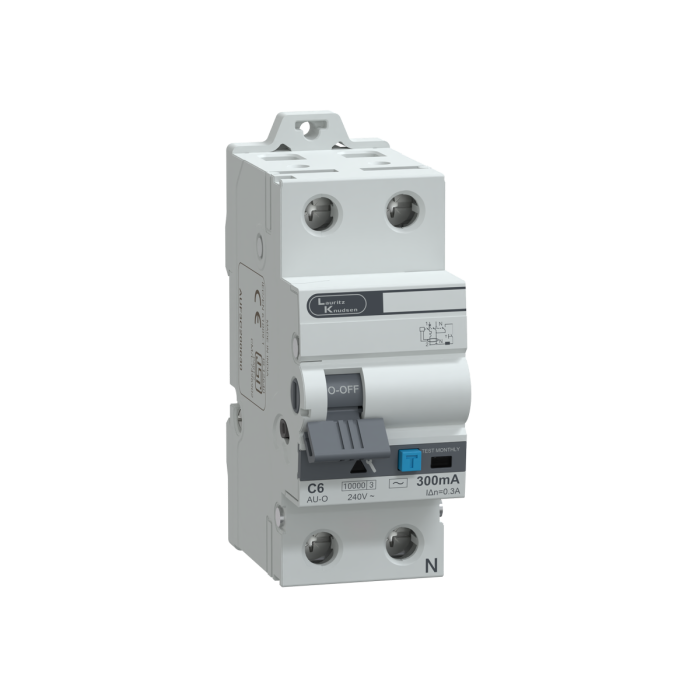

Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, 10 kA, 300 mA, 6A, 240V | Suitable for Isolation| with Enhanced Safety
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU Standard RCBO, 2 Pole, C Curve, 10 kA, 300 mA, 6A, 240V | Suitable for Isolation| with Enhanced Safety
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCBO 6A DP 240V AC 10kA 300mA C Curve is a compact protection device that combines the functionality of an MCB and an RCCB in a single unit. It is designed to protect electrical circuits from overload, short circuit, and earth leakage faults.
With a 6A current rating, this RCBO is suitable for low load circuits. The 300mA leakage sensitivity is typically used for fire protection and equipment safety in applications where a higher leakage threshold is acceptable.
How the RCBO Works
This RCBO operates as a combined protection system:
- Detects overload and short circuit conditions similar to an MCB
- Detects earth leakage currents similar to an RCCB
- Trips automatically in the event of a fault condition
- Disconnects both live and neutral through double pole operation
This ensures complete circuit isolation and enhanced system protection.
Electrical Configuration
- Rated current: 6A
- Poles: Double pole (DP)
- Rated voltage: 240V AC
- Breaking capacity: 10kA
- Sensitivity: 300mA
- Trip curve: C Curve
- Application: Overload, short circuit, and earth leakage protection
Construction and Design
The RCBO is designed for compact installation and reliable performance:
- Integrated MCB and RCCB functionality in one device
- Modular design suitable for DIN rail mounting
- Compact structure for efficient space utilization
- High mechanical and electrical endurance
- Designed for accurate and consistent tripping
Safety and Protection
- Protects against overload and short circuit faults
- Detects earth leakage currents for improved safety
- 300mA sensitivity suitable for fire protection and equipment safety
- Double pole isolation ensures complete circuit disconnection
- Reduces risk of electrical hazards and system damage
Mounting and Durability
- Designed for DIN rail mounting in distribution boards
- Compact modular construction
- Suitable for repeated operation and fault conditions
- Built for long term durability and reliable performance
Application Domains
- Commercial electrical installations
- Industrial control panels
- Equipment protection circuits
- Distribution boards requiring fire protection
- Systems with higher leakage tolerance
Key Features
- 6A rated RCBO for low load circuits
- Double pole design for complete isolation
- 10kA breaking capacity for fault protection
- 300mA sensitivity for fire and equipment protection
- C curve characteristic for general purpose applications
- Combines MCB and RCCB functions in one unit
- DIN rail compatible for easy installation
Applications
- Commercial distribution boards
- Industrial panels
- Equipment protection circuits
- Control systems
- General electrical installations
FAQs
1. What is an RCBO?
Ans: An RCBO is a device that combines the functions of an MCB and an RCCB, providing protection against overload, short circuit, and earth leakage.
2. What does 300mA sensitivity mean?
Ans: It indicates the leakage current level at which the device trips, typically used for fire protection and equipment safety rather than personal protection.
3. What is the advantage of a double pole RCBO?
Ans: It disconnects both live and neutral, ensuring complete circuit isolation during faults.
4. What does 10kA breaking capacity indicate?
Ans: It represents the maximum fault current the device can safely interrupt.
5. What is a C curve characteristic?
Ans: It is suitable for general purpose circuits with moderate inrush currents.
6. Where can this RCBO be used?
Ans: It is used in commercial and industrial installations requiring combined protection.
7. Is installation easy?
Ans: Yes, it is designed for quick installation on standard DIN rails.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | DP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 6A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 61009-1, IS 12640-2 |
| Tripping Characteristic | C Curve |
| Sensitivity | 300mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 35 |
