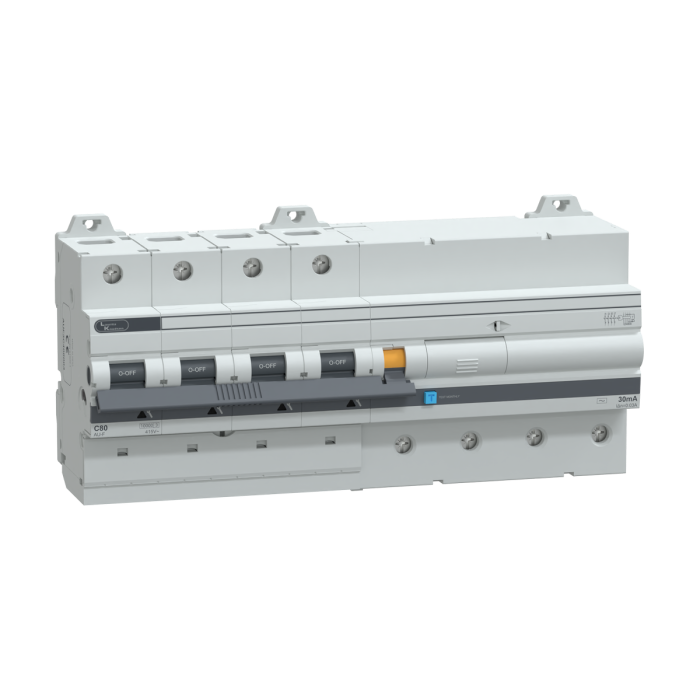

Lauritz Knudsen AU Standard RCBO, 4 Pole, C Curve, 10 kA, 30 mA, 80A, 415V | Suitable for Isolation| with Enhanced Safety
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product

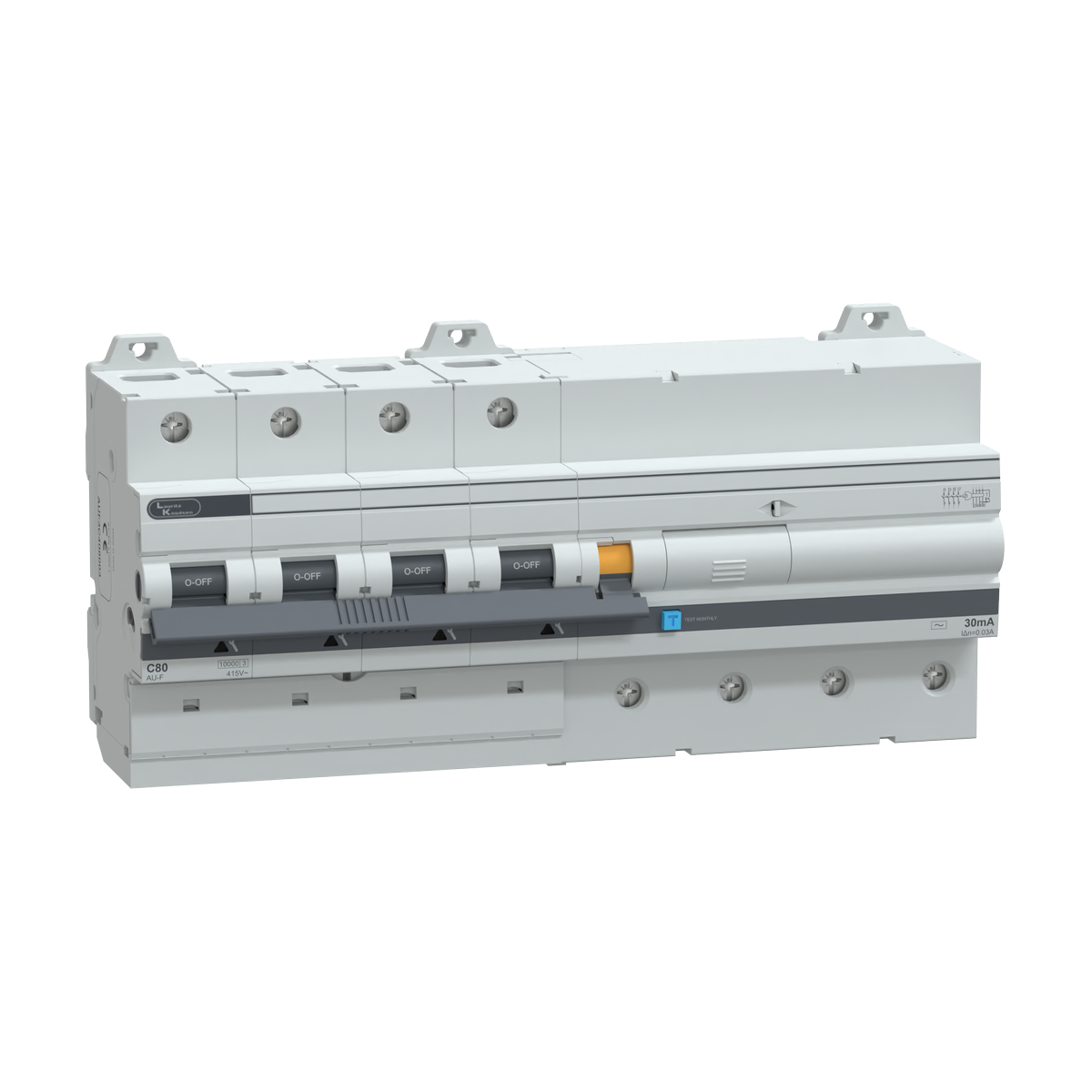

The AU RCBO 80A FP 415V AC 10kA 30mA C Curve is a high-capacity four pole protection device that integrates both MCB & RCCB functionality into a single unit. It is engineered for three phase electrical systems requiring dependable protection against overload, short circuit, & earth leakage faults.
With an 80A current rating, this RCBO is ideal for heavy-duty applications such as main distribution lines, industrial machinery, & high power commercial systems. The 30mA leakage sensitivity provides effective protection against electric shock, making it suitable for safety-critical installations.
How the RCBO Works
This four pole RCBO operates as a complete protection system:
• Detects overload & short circuit faults similar to an MCB
• Detects earth leakage currents like an RCCB
• Trips automatically when abnormal conditions occur
• Disconnects all three phases & neutral simultaneously
This ensures complete circuit isolation & enhances overall safety in three phase electrical setups.
Electrical Configuration
• Rated current: 80A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Breaking capacity: 10kA
• Sensitivity: 30mA
• Trip curve: C Curve
• Application: Overload, short circuit, & earth leakage protection
Construction & Design
The RCBO is designed for high performance & long term reliability:
• Integrated MCB & RCCB functionality in one compact device
• Modular design compatible with DIN rail mounting
• Compact construction for efficient panel space utilization
• High mechanical & electrical endurance
• Designed for accurate & consistent tripping performance
Safety & Protection
• Protects against overload & short circuit faults
• 30mA sensitivity ensures protection against electric shock
• Detects & isolates earth leakage currents
• Four pole isolation ensures complete disconnection of all phases & neutral
• Reduces risk of electrical hazards, fire, & equipment damage
Mounting & Durability
• DIN rail mounting for easy installation• Suitable for three phase distribution boards & industrial panels
• Compact modular design
• Designed for frequent operation & fault handling
• Built for long term durability & reliable performance
Application Domains
• Main distribution panels
• Industrial electrical installations
• Commercial power systems
• Heavy machinery & high load equipment circuits
• Three phase high load power distribution networks
Key Features
• 80A rated RCBO for high load three phase circuits
• Four pole design for complete phase & neutral isolation
• 10kA breaking capacity for reliable fault interruption
• 30mA sensitivity for personnel safety
• C curve characteristic for general & power applications
• Combines MCB & RCCB functions in one device
• DIN rail compatible for easy installation
Applications
• Industrial panels & heavy machinery
• Commercial electrical systems
• Main distribution boards
• High load power circuits
• Electrical control & protection systems
FAQs
1. What does FP mean in this RCBO?
Ans: FP stands for four pole, meaning it disconnects all three phases & neutral simultaneously.
2. What is the voltage rating of this RCBO?
Ans: It is designed for 415V AC three phase systems.
3. What does 30mA sensitivity indicate?
Ans: It provides protection against electric shock by detecting low leakage currents.
4. Why use an 80A RCBO?
Ans: It is used for high load applications such as main supply lines & heavy equipment.
5. What does 10kA breaking capacity mean?
Ans: It indicates the maximum fault current the device can safely interrupt.
6. What is a C curve characteristic?
Ans: It is suitable for circuits with moderate inrush currents such as motors & industrial machinery.
7. Where can this RCBO be used?
Ans: It is ideal for industrial & commercial three phase installations requiring high load & reliable protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 5,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 70 Sq. mm (rigid) 50 Sq. mm (flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IEC 61009-1 |
| Rated Impulse Voltage | 6kV |
| Current Rating | 80A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 61009-1 |
| Tripping Characteristic | C Curve |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 103.8 |
| Breadth(mm) | 210.2 |
