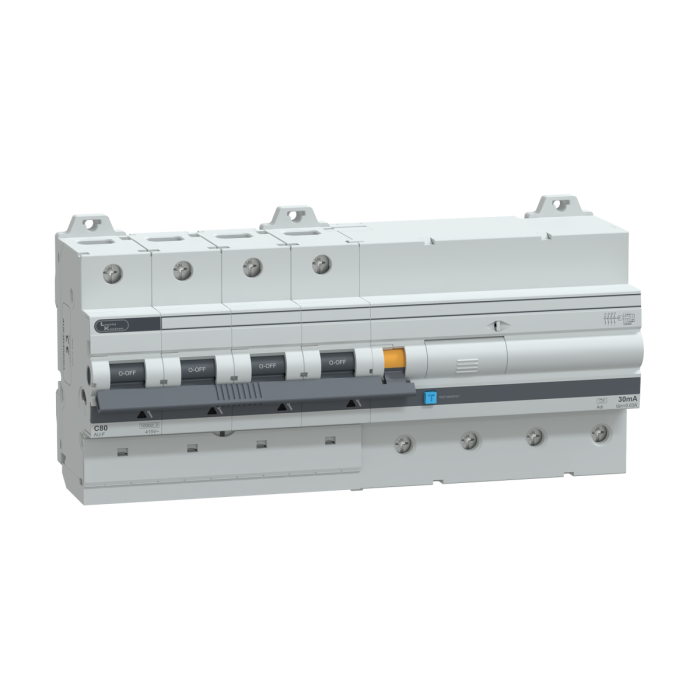

main product photo

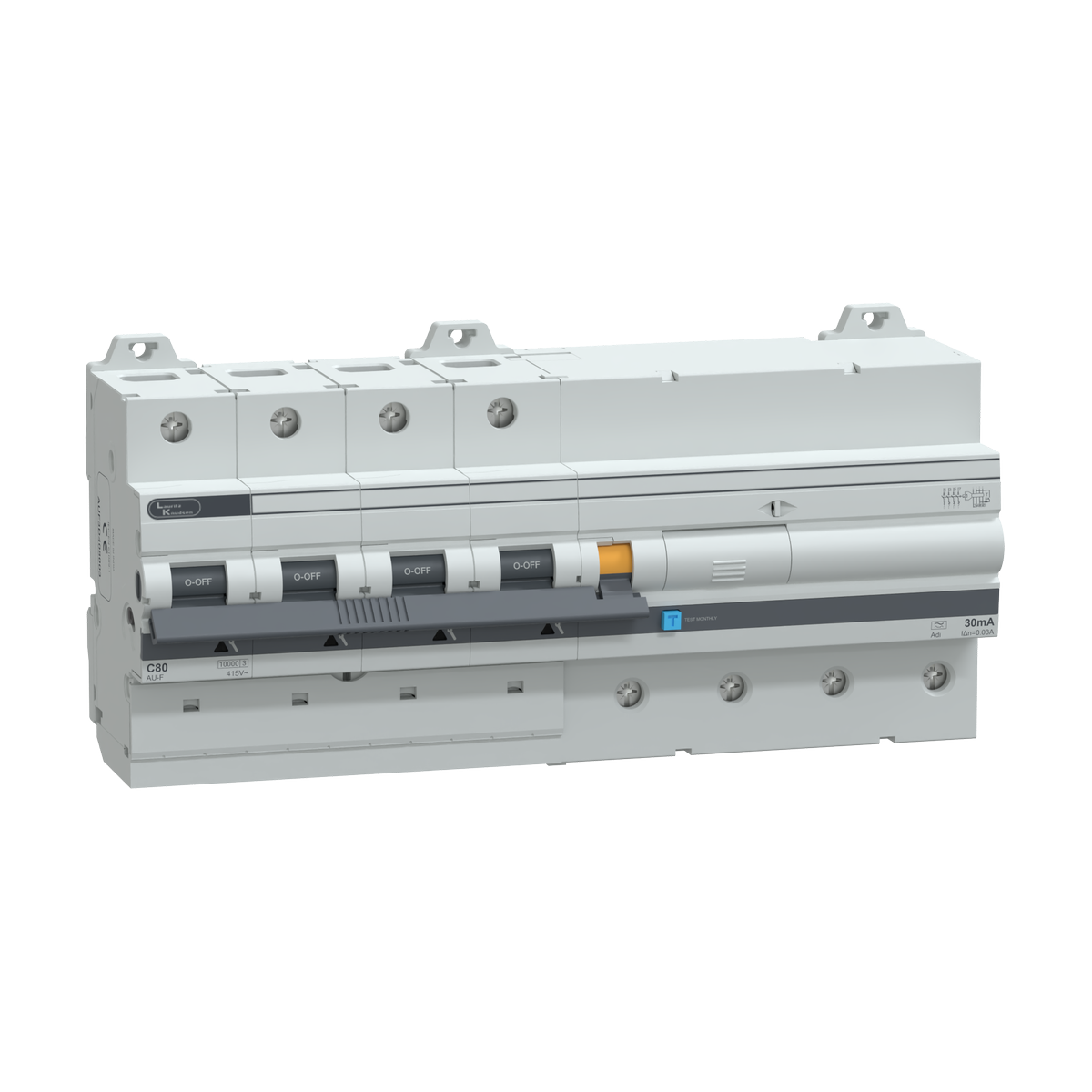

AU RCBO 80A FP 415V Adi 10kA 30mA C Curve

In stock
SKU
AUF3D408003
Regular Price ₹25,685.00 Special Price ₹21,215.81
17% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
AU RCBO 80A FP 415V Adi 10kA 30mA C Curve

HSN Code - 85362090

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • RCBOs provides protection from overload, short-circuit and earth leakage. Type Adi : Suitable for AC + Pulsating DC (Type A) + Harmonics
Technical Specifications
  • Discount Percentage
    Between 0-10 %
  • Operating Temperature Range
    -25°C to +60°C
  • Electrical life (Operating Cylces)
    5,000
  • Tightening Torque
    4Nm
  • Termination capacity
    70 Sq. mm (rigid) 50 Sq. mm (flexible)
  • Mechanical Life (Operating Cycles)
    20,000
  • No. of Poles
    FP
  • Rated Insulation Voltage Ui (V)
    500V
  • Rated Frequency
    50Hz
  • Rated Short-circuit Breaking Capacity
    10kA as per IEC 61009-1
  • Rated Impulse Voltage
    6kV
  • Current Rating
    80A
  • Rated operational voltage (Ue)
    415V
  • Conformance to Standards
    IEC 61009-1
  • Tripping Characteristic
    C Curve
  • Sensitivity
    30mA
  • Length(mm)
    77.5
  • Height(mm)
    103.8
  • Breadth(mm)
    210.2
