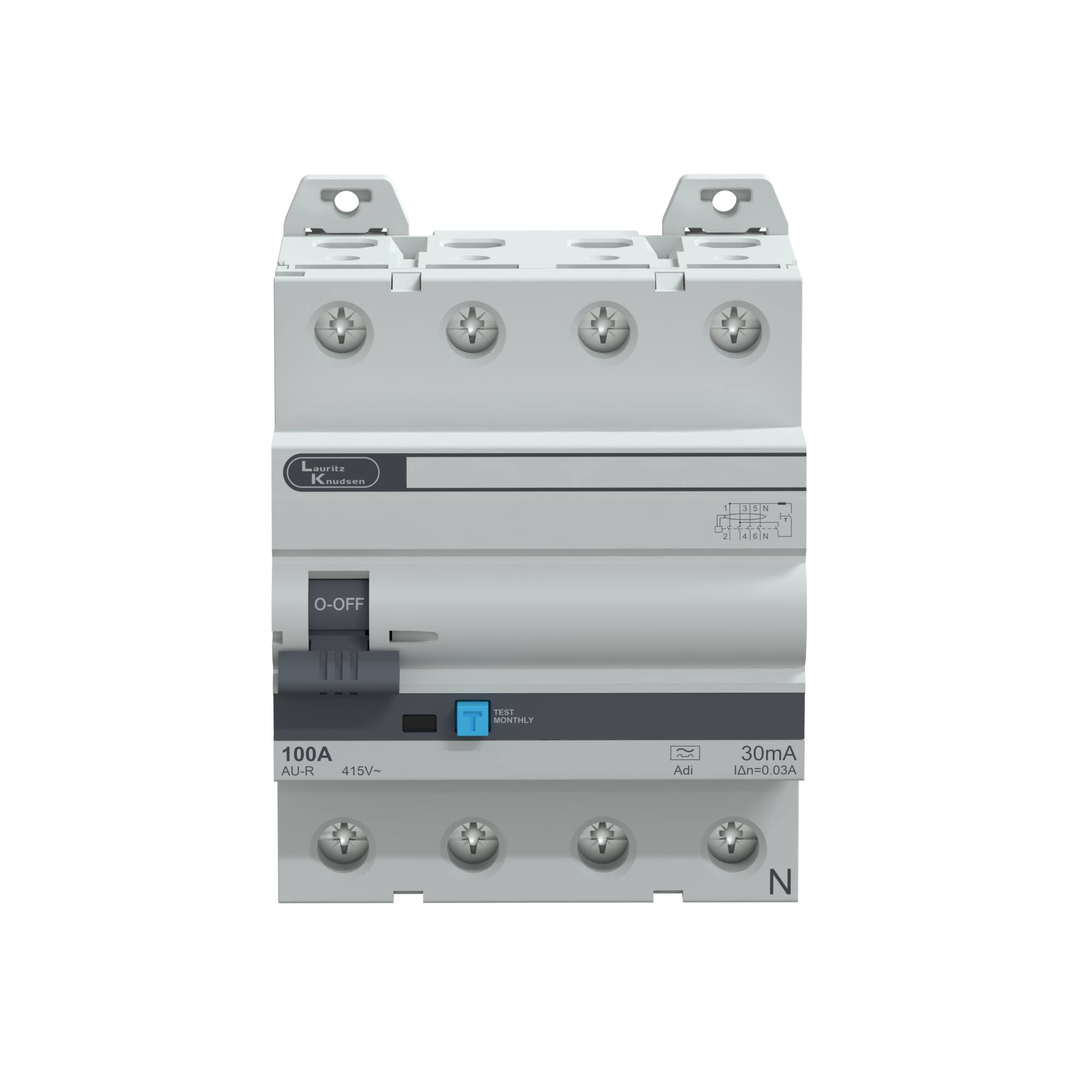

Lauritz Knudsen AU Standard RCCB, 4 Pole, Adi 30mA, 100A, 415V | for Household to Industrial applications | Prevents Unauthorized Access | Earth Leakage Fault Indication | with Added Immunity
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU Standard RCCB, 4 Pole, Adi 30mA, 100A, 415V | for Household to Industrial applications | Prevents Unauthorized Access | Earth Leakage Fault Indication | with Added Immunity
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCCB 100A FP 415V ADI 30mA is a high-capacity four pole Residual Current Circuit Breaker designed to provide effective protection against earth leakage faults in three phase electrical systems. It helps safeguard users & installations by instantly disconnecting power when leakage currents are detected, reducing the risk of electric shock & electrical hazards.
Featuring ADI (Advanced Detection Intelligence) technology, this RCCB ensures accurate & stable leakage detection. With a 100A current rating, it is ideal for high load applications such as main distribution boards, industrial systems, & large commercial installations.
How the RCCB Works
This RCCB provides dedicated earth leakage protection through continuous monitoring:
• Monitors current balance across all three phases & neutral
• Detects imbalance caused by leakage current or insulation faults
• Trips instantly when leakage exceeds 30mA threshold
• Disconnects all three phases & neutral simultaneously
This ensures rapid fault isolation & maximum safety in three phase systems.
Electrical Configuration
• Rated current: 100A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Technology: ADI (Advanced Detection / Intelligent sensing)
• Sensitivity: 30mA
• Function: Earth leakage protection only
• Application: Personal safety & leakage fault protection
Construction & Design
The RCCB is engineered for heavy-duty performance & reliability:
• Dedicated RCCB functionality for precise leakage detection
• Advanced ADI sensing for enhanced detection accuracy
• Modular design compatible with DIN rail mounting
• Compact construction for optimized panel space utilization
• High mechanical & electrical endurance
• Designed for stable & consistent tripping performance
Safety & Protection
• Protects against electric shock
• Detects earth leakage currents quickly & accurately
• 30mA sensitivity ensures high level of personnel safety
• Four pole isolation ensures complete disconnection of all phases & neutral
• Helps prevent electrical hazards & system failures
Mounting & Durability
• DIN rail mounting for quick & easy installation• Suitable for three phase distribution boards & main panels
• Compact modular construction
• Designed for continuous operation & demanding conditions
• Built for long term durability & dependable performance
Application Domains
• Main distribution boards
• Industrial electrical systems
• Commercial installations
• High load three phase circuits
• Safety-critical power systems
Key Features
• 100A rated RCCB for high load three phase circuits
• Four pole design for complete phase & neutral isolation
• 30mA sensitivity for personnel protection
• ADI technology for advanced leakage detection
• Dedicated earth leakage protection device
• DIN rail compatible for easy installation
• Compact & robust design
Applications
• Industrial panels
• Commercial electrical systems
• Main distribution boards
• Heavy machinery circuits
• Electrical safety systems
FAQs
1. What is the function of this RCCB?
Ans: It detects earth leakage currents & disconnects power to prevent electric shock & electrical hazards.
2. What does 30mA sensitivity indicate?
Ans: It means the device trips at low leakage current levels, providing protection against electric shock.
3. Does this RCCB provide overload protection?
Ans: No, it must be used along with MCBs for overload & short circuit protection.
4. Why is a four pole RCCB required?
Ans: It disconnects all three phases & neutral, ensuring complete isolation in three phase systems.
5. Where is a 100A FP RCCB used?
Ans: It is used in high load three phase applications such as industrial & commercial power systems.
6. What is ADI technology?
Ans: ADI improves leakage detection accuracy & ensures reliable & consistent tripping performance.
7. Where should this RCCB be installed?
Ans: It should be installed in three phase distribution boards to provide effective earth leakage protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 50 Sq. mm (rigid) / 35 Sq. mm (flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Residual Making & Breaking capacity | 1kA |
| Rated Impulse Voltage | 6kV |
| Rated Conditional SC Current | 10kA |
| Current Rating | 100A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 61008-1 |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 70 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
