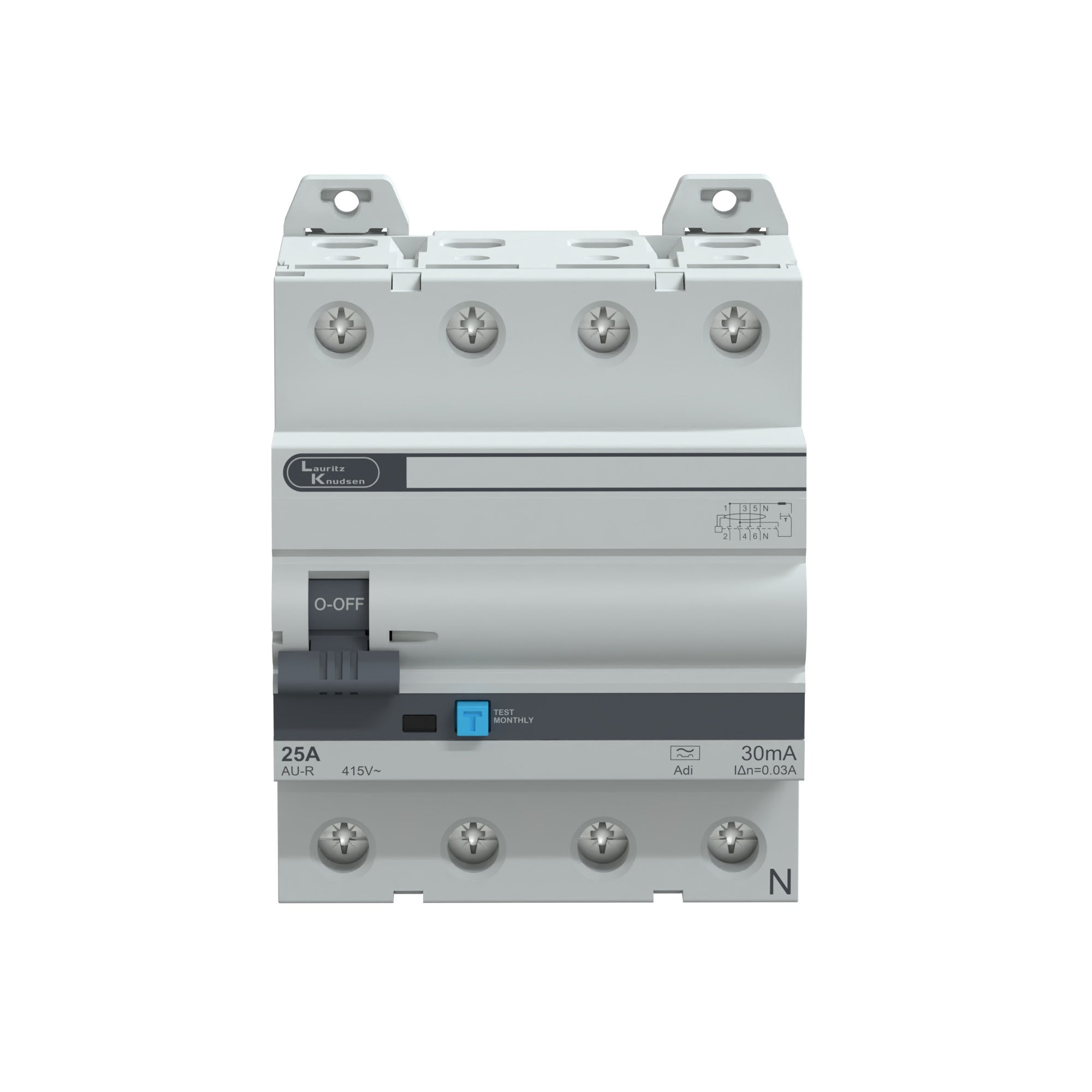

Lauritz Knudsen AU Standard RCCB, 4 Pole, Adi 30mA, 25A, 415V | for Household to Industrial applications | Prevents Unauthorized Access | Earth Leakage Fault Indication | with Added Immunity
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU Standard RCCB, 4 Pole, Adi 30mA, 25A, 415V | for Household to Industrial applications | Prevents Unauthorized Access | Earth Leakage Fault Indication | with Added Immunity
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU RCCB 25A FP 415V ADI 30mA is a four pole Residual Current Circuit Breaker designed to provide protection against earth leakage currents in three phase electrical systems. It is specifically used to safeguard human life & electrical systems by detecting leakage currents & disconnecting the circuit instantly.
Equipped with ADI (Advanced Detection Intelligence) technology, this RCCB ensures precise sensing & dependable operation. With a 25A current rating, it is suitable for moderate load three phase circuits in industrial & commercial environments.
How the RCCB Works
This RCCB provides dedicated leakage protection through continuous monitoring:
• Monitors current balance across all three phases & neutral
• Detects imbalance caused by leakage current
• Trips instantly when leakage exceeds 30mA threshold
• Disconnects all three phases & neutral simultaneously
This ensures fast fault isolation & enhanced protection against electric shock.
Electrical Configuration
• Rated current: 25A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Technology: ADI (Advanced Detection / Intelligent sensing)
• Sensitivity: 30mA
• Function: Earth leakage protection only
• Application: Personal safety & leakage fault protection
Construction & Design
The RCCB is engineered for reliable performance in three phase systems:
• Dedicated RCCB functionality for accurate leakage detection
• Advanced ADI sensing for improved precision
• Modular design compatible with DIN rail mounting
• Compact structure for optimized panel space
• High mechanical & electrical endurance
• Designed for consistent & stable tripping
Safety & Protection
• Provides protection against electric shock
• Detects earth leakage currents quickly & accurately
• 30mA sensitivity ensures high level of personal safety
• Four pole isolation ensures complete disconnection of phases & neutral
• Helps prevent electrical hazards & system failures
Mounting & Durability
• DIN rail mounting for easy installation• Suitable for three phase distribution boards
• Compact modular construction
• Designed for frequent operation & safety compliance
• Built for long term durability & reliable performance
Application Domains
• Three phase distribution systems
• Industrial electrical installations
• Commercial buildings
• Machinery & control panels
• Safety-critical power circuits
Key Features
• 25A rated RCCB for three phase moderate load circuits
• Four pole design for complete phase & neutral isolation
• 30mA sensitivity for personnel safety
• ADI technology for advanced leakage detection
• Dedicated earth leakage protection device
• DIN rail compatible for easy installation
• Compact & durable design
Applications
• Industrial panels
• Commercial electrical systems
• Three phase distribution boards
• Control panels & machinery circuits
• Electrical safety systems
FAQs
1. What is the function of this RCCB?
Ans: It provides protection against earth leakage currents to prevent electric shock & electrical hazards.
2. What does 30mA sensitivity indicate?
Ans: It means the device trips at low leakage current levels, ensuring protection against electric shock.
3. Does this RCCB protect against overload?
Ans: No, it must be used with MCBs for overload & short circuit protection.
4. Why is a four pole RCCB used?
Ans: It disconnects all three phases & neutral, ensuring complete isolation in three phase systems.
5. Where is a 25A FP RCCB used?
Ans: It is used in moderate load three phase circuits in industrial & commercial installations.
6. What is ADI technology?
Ans: ADI improves leakage detection accuracy & ensures reliable tripping performance.
7. Where should this RCCB be installed?
Ans: It should be installed in three phase distribution boards for effective leakage protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60°C |
| Electrical life (Operating Cylces) | 10,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Residual Making & Breaking capacity | 1kA |
| Rated Impulse Voltage | 6kV |
| Rated Conditional SC Current | 10kA |
| Current Rating | 25A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 61008-1 |
| Sensitivity | 30mA |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 70 |
