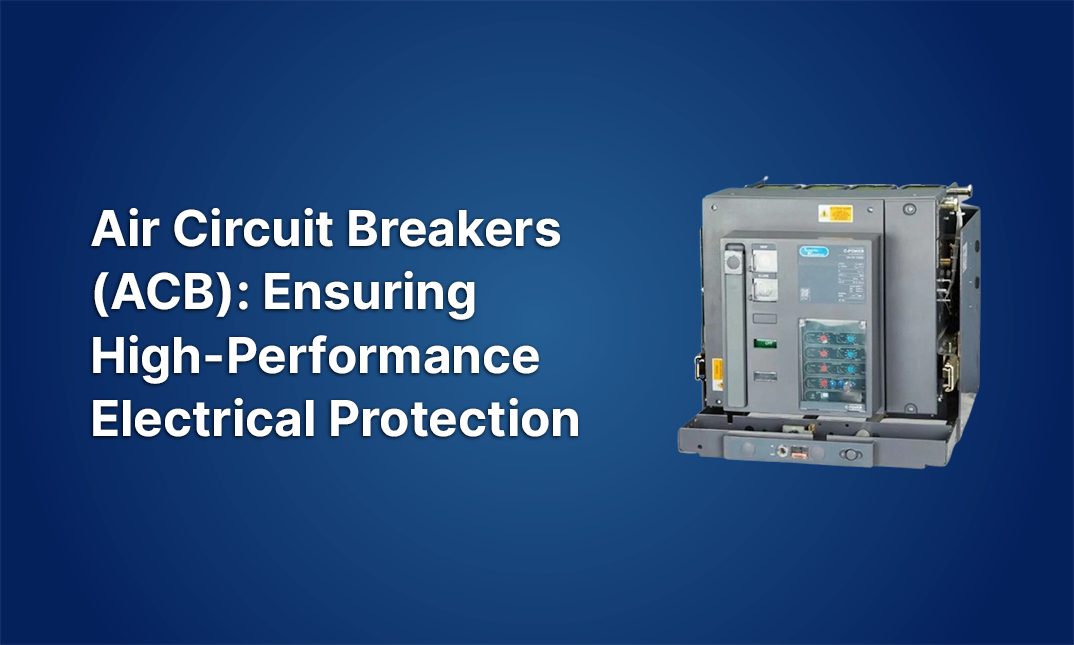

Air Circuit Breakers (ACB): Ensuring High-Performance Electrical Protection

Protection of circuits remains vital for industrial and commercial electrical systems when delivering safe power through the prevention of system faults. The Air Circuit Breaker (ACB) stands as the most dependable device for protecting industrial circuits. ACBs have extensive applications as low-voltage circuit breaker solutions since they can manage strong current flows under tough operating environments.

This blog provides a detailed look into the Air Circuit Breaker, its operational mechanism, types, usage, and benefits. It will also highlight the significance of these breakers in electrical systems today.

What is an Air Circuit Breaker?

The term Air Circuit Breaker (ACB) defines a specific electrical device that interrupts circuit flow using air as its primary disruption mechanism. The economy of fault current interruption comes through the air as the arc-quenching medium in Air Circuit Breakers (ACBs), which safeguard electrical circuits. An ACB breaker operates without demanding any insulation medium, such as oil or vacuum, which enhances safety and environmental friendliness.

How Does an AC Circuit Breaker Work?

The automatic disconnection of electrical power occurs when an AC circuit breaker detects overcurrent events, short circuit faults, or any system faults. The key working mechanism involves:

1. 1. Detection of Faults: ACBs are equipped with protective relays that sense abnormal current levels.

2. 2. Triggering the Trip Mechanism: When a fault is detected, the trip coil is activated, causing the breaker to open.

3. 3. Arc Extinction: As the breaker opens, an electric arc forms between the contacts. The arc is cooled and extinguished using arc chutes and blowout mechanisms, ensuring rapid disconnection.

4. 4. Circuit Isolation: The circuit is safely isolated, preventing damage to connected equipment.

5. 5. Manual or Automatic Reset: Once the fault is cleared, the breaker can be reset manually or automatically.

Types of Air Circuit Breakers (ACB)

ACBs come in different configurations to suit various industrial applications. The major types include:

1. Plain Break Type ACB

• Uses simple arc chutes to extinguish the arc.

• Suitable for low-power applications.

2. Magnetic Blowout Type ACB

• Uses magnetic fields to stretch and cool the arc.

• Effective for higher current ratings.

3. Cross-Blast Type ACB

• Directs a high-speed air blast across the arc to extinguish it quickly.

• Ideal for heavy-duty industrial applications.

4. Grid Type ACB

• Uses grid-shaped arc chutes to split and cool the arc.

• Ensures efficient arc extinction and minimal contact wear.

Each type has specific benefits, and the choice depends on voltage level, load capacity, and industrial requirements.

Applications of Air Circuit Breakers (ACB)

Air Circuit Breakers find multiple industry uses because they enable protective circuit control for high-current systems. The main usages of air circuit breakers occur across the following domains:

1. 1. Industrial Circuit Protection

   Air Circuit Breakers protect motors, transformers, and heavy machinery in manufacturing plants, power stations, and refineries.

2. 2. Commercial Buildings

   These components are routinely placed in big office buildings, hospitals, and shopping centers to prevent both electrical breakdowns and fire events.

3. 3. Power Generation & Distribution

   Substations, along with electricity grids, use the device to guarantee secure power distribution.

4. 4. Renewable Energy Systems

   The power conversion systems of solar and wind power plants receive protection through these components.

5. 5. Marine & Transportation

   ACBs deliver exceptional breaking Capacity through their strong engineering to maintain nonstop power delivery while defending the safety of electrical systems.

Difference Between ACB and Other Circuit Breakers

While MCCBs are suitable for low-power applications and VCBs are preferred for high-voltage systems, ACBs remain the best choice for heavy industrial loads and large commercial setups.

Also Read: Circuit Breaker: Types, Uses, and Applications

Factors to Consider When Buying an ACB Breaker

Several key elements need evaluation before purchasing an ACB breaker.

• Select a breaker with a sufficient rating that matches the highest possible current requirement of your system.

• The selection of ACBs requires a high breaking capacity to resist heavy fault currents.

• The power distribution system determines whether you need three poles or four poles for your ACB breaker selection.

• Users can choose manual operation or motorized controls and remote-based control mechanisms for their breaker systems.

• Protection functions should include overcurrent, short circuit, and earth fault features.

Advantages of Air Circuit Breakers (ACB)

ACBs offer several benefits over other types of low-voltage circuit breakers, including:

1. High Breaking Capacity

• It can handle large fault currents up to 6300A, making it ideal for industrial use.

2. Easy Maintenance

• Unlike oil-based breakers, ACBs require minimal upkeep and have a long service life.

3. Enhanced Safety

• The absence of oil or vacuum chambers reduces the risk of explosions and toxic emissions.

4. Remote Operation & Automation

• Many modern ACB breakers come with electronic trip units, allowing remote monitoring and operation.

5. Reliability in Harsh Environments

• Performs efficiently in high temperatures, dust-prone areas, and vibration-heavy environments.

ACB Breaker Price: What to Expect?

The toggle switch price of an ACB varies based on factors like current rating, brand, and features. Here’s a general price range:

• Basic 630A ACB Breaker: ₹30,000 - ₹50,000

• 1000A to 1600A ACB: ₹60,000 - ₹1,00,000

• 2500A to 4000A ACB: ₹1,50,000 - ₹3,00,000

• 5000A and above: ₹4,00,000+

It’s always recommended to compare options and buy from trusted suppliers to ensure reliability.

Conclusion

The need for industrial and commercial electrical safety depends on Air Circuit Breakers (ACBs) serving as fundamental protective devices. The device provides strong breaking capability, extended durability, and remote operation capabilities that are suitable for low-voltage circuit breaker applications. An air circuit breaker (ACB) stands as the optimal solution for protecting large industrial machinery through its circuits and commercial facilities with their breakers.

High-quality AC circuit breakers, industrial protection solutions, and low-voltage circuit breakers are available at SmartShop by Lauritz Knudsen Electrical & Automation. The company provides a complete selection of ACBs alongside electrical products that focus on safety performance and efficiency for power distribution systems.
