Factors to be considered while selecting right VFD
Selecting the right Variable Frequency Drive (VFD) is crucial for optimizing the performance and efficiency of electric motor-driven systems. The proper VFD can enable precise control of motor speed and torque, leading to energy savings, reduced wear and tear on equipment, and improved process control.
Additionally, selecting the appropriate VFD ensures compatibility with the specific motor and application requirements, leading to enhanced reliability and longevity of the overall system. Ultimately, the right VFD selection can significantly impact energy consumption, operational costs, and equipment performance, making it a key decision in the design and operation of motor-driven systems.
Application
-
Constant Torque
-
Overload requirement : Within 150% of rated current
-
Repeated overload
-
Select Heavy Duty VFD : 150% overload for 1 Min.
-
Variable Torque
- Overload requirement : Within 110% of rated current
- Overload is not frequent
- Select Normal Duty Drive : 110% overload for 1 Min
Motor Name plate
Inverter should be selected based on the motor rated current rather than just kW of the motor
For Constant torque load
IHD of Drive ≥ Motor rated current
For Variable torque load
IND of Drive ≥ Motor rated current

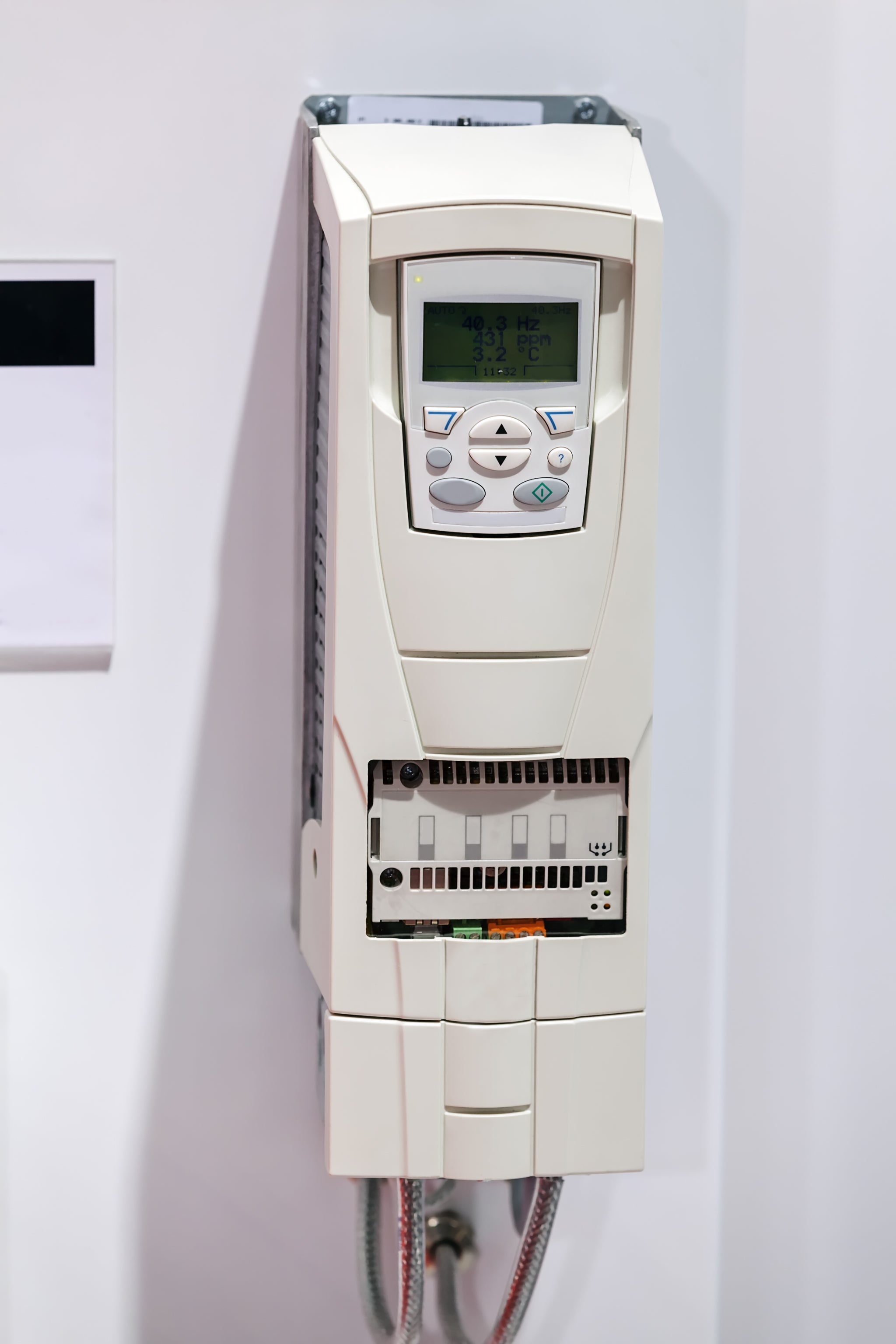

Supply Voltage
The supply voltage is crucial when selecting a Variable Frequency Drive (VFD) for a motor because it directly impacts the VFD's compatibility with the power system and the motor. The VFD must match the supply voltage to operate effectively and safely. Mismatched supply voltage can lead to operational issues, decreased efficiency, and potentially damage the VFD and the motor. Therefore, ensuring the VFD's supply voltage aligns with the power system and motor specifications is essential for seamless integration and optimal performance.
Ambient Temperature
High ambient temperatures can impact the VFD's thermal performance, potentially leading to overheating and reduced operational efficiency. It's important to select a VFD that is rated for the specific ambient temperature conditions of the installation site to ensure reliable and safe operation. Additionally, considering ambient temperature helps in choosing the appropriate enclosure and cooling methods to maintain the VFD's optimal operating conditions. This consideration is essential for preventing premature VFD failure and ensuring long-term system reliability.
Altitude
At higher altitudes, air density decreases, which can impact the VFD's cooling capabilities. As a result, the VFD may need to be derated or specially designed to operate effectively in low-air-density environments. When selecting a VFD for a motor at higher altitudes, it's crucial to consider the manufacturer's altitude derating guidelines to ensure that the VFD can handle the reduced cooling capacity at elevated locations.
Cable Distance to Motor
Longer cable lengths can lead to increased capacitance and inductance in the cables, which in turn can cause voltage spikes and reflected waves that may affect the VFD's output and the motor's insulation. Additionally, longer cable distances can result in greater voltage drop, potentially affecting the motor's performance and efficiency.
