Fused Disconnect Switch Vs Circuit Breaker

Electrical currents in your house act as the knights guarding your stronghold. Therefore, choosing the correct protective equipment for your electrical system is pivotal. The lesser-known heroes that keep possible fires, short circuits, and electrical overloads at bay are circuit breakers and fuse disconnect switches. Making the correct decision extends the lifespan and improves the efficiency of your electrical infrastructure in addition to ensuring safety.

In this blog, we will explore why choosing a circuit breaker or a fused disconnect switch wisely is essential to protecting your electrical stronghold along with the key differences between fuse disconnect switch vs circuit breaker.

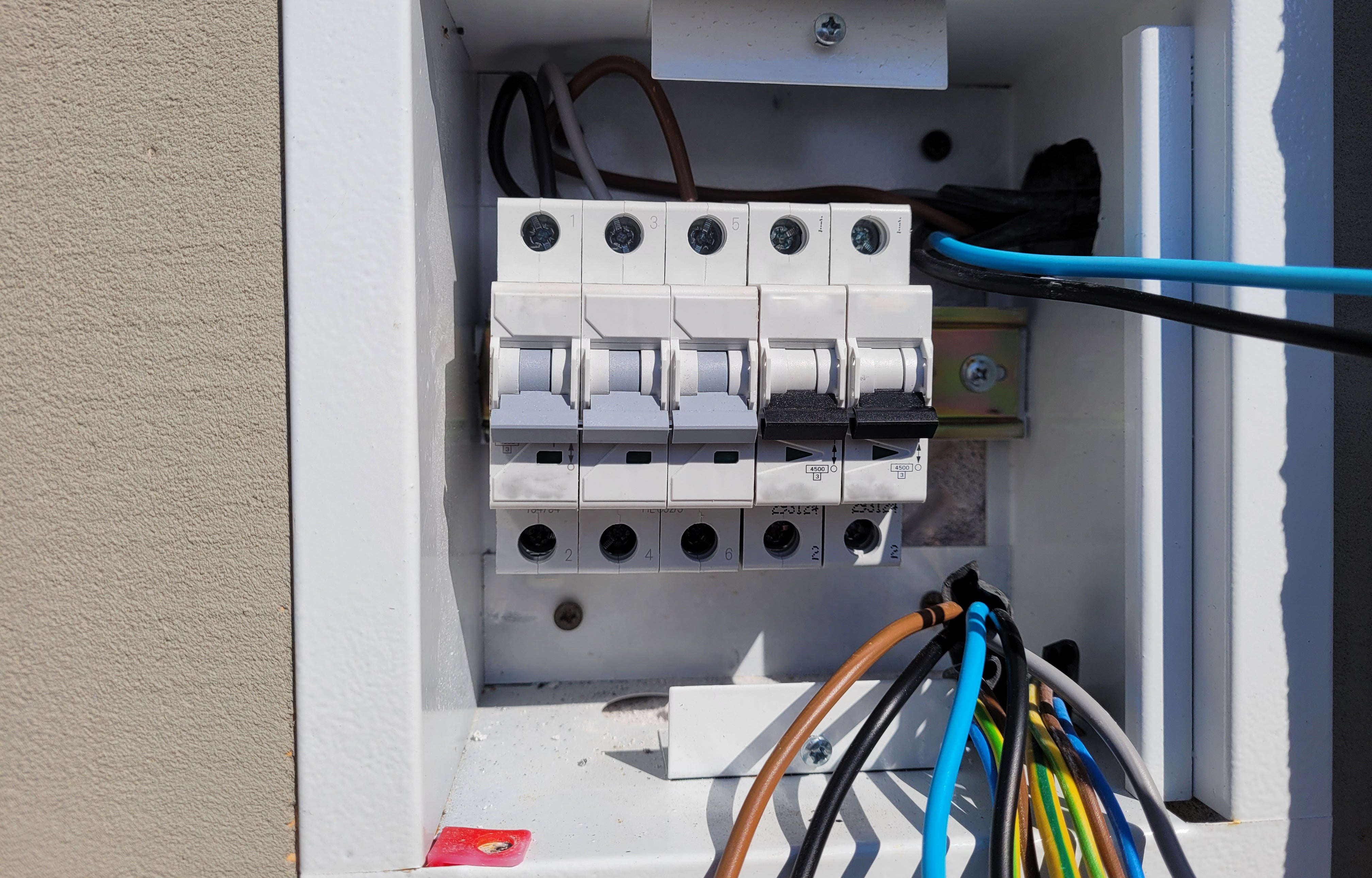

What is a Fused Disconnect Switch?

A fused disconnect switch protects electrical systems from overcurrent and short circuits by cutting off power when faults occur. It combines a manual switch for safe operation with a fuse that breaks the circuit during excess current. Common in industrial and commercial setups, it offers a simple, cost-effective, and reliable safety solution for high-load equipment.

Functions of a Fused Disconnect Switch

A fused disconnect switch is an electrical device that combines the functions of a switch and a fuse, providing both isolation and protection in electrical circuits. Its key functions include:

Circuit Isolation

A fused disconnect switch allows safe isolation of electrical equipment from the power supply. By opening the switch, the circuit is completely disconnected, ensuring that maintenance or repair work can be carried out without the risk of electric shock or accidental energization.

Overcurrent Protection

The fuse component protects the circuit against overcurrent conditions such as overloads and short circuits. If the current exceeds a safe limit, the fuse melts (blows), interrupting the flow of electricity and preventing damage to equipment and wiring.

Manual Control of Power Supply

It acts as a manual on/off control for electrical systems. Operators can easily switch the power supply on or off as required, making it useful in industrial, commercial, and residential installations where controlled operation is needed.

Enhanced Safety and Equipment Protection

By combining switching and fusing in one unit, it enhances overall system safety. It prevents electrical fires, protects connected devices from damage, and reduces the risk of hazardous conditions caused by electrical faults

The Mechanism of a Fuse Disconnect Switch

 A fused disconnect switch works through a combination of manual switching and fuse protection. The switch allows operators to control the electrical circuit. On the other hand, the fuse protects equipment from excessive current. It interrupts the circuit to prevent:

• Overheating

• Equipment damage

• Other electrical hazards during an abnormal electrical condition

Fuse-Based Overcurrent Protection

The fuse inside the disconnect switch plays a critical role. The fuse element begins to heat up when current exceeds the safe limit. It melts and breaks the circuit when the temperature rises beyond its rating. This quick response prevents excessive current from damaging connected equipment. Also, it ensures the safety of electrical systems.

Manual Circuit Isolation

A fused disconnect switch allows manual disconnection of electrical circuits. This feature helps during equipment inspection, repair, or replacement. Technicians can safely work on electrical components. It eradicates the risk of accidental power flow or electrical shock by isolating the circuit.

Rapid Fault Interruption

The fuse responds almost instantly when electrical faults occur. The fuse element melts. It interrupts the electrical path. This stops current from flowing through the system. The fast interruption reduces the risk of overheating, electrical fires, and serious damage to electrical equipment.

Equipment Protection Mechanism

The combined action of the switch and fuse helps protect electrical equipment from abnormal operating conditions. The switch allows controlled disconnection of the circuit. On the other hand, the fuse protects against excessive current. These components create a simple yet reliable protection system commonly used in industrial and commercial electrical installations.

Application of a Fused Disconnect Switch

The application of fused disconnect switch devices is common in systems where equipment protection and safe maintenance isolation are required. Some of the most common applications of these devices are as follows.

Industrial Electrical Panels

Many industrial control panels use fused disconnect switches. They help isolate equipment safely. These switches allow technicians to disconnect electrical power before working on machines. So, these switches help reduce safety risks during maintenance.

Motor Protection Systems

Electric motors often operate under heavy loads. Fused disconnect switches protect these systems. They interrupt the circuit when excessive current occurs. This prevents overheating and equipment damage.

HVAC Equipment

Heating and cooling systems frequently include fused disconnect switches. These switches allow service technicians to disconnect power before servicing compressors, fans, or other electrical components.

Power Isolation for Maintenance

Electrical circuits must be isolated completely during maintenance. A fused disconnect switch allows technicians to disconnect the power safely while the fuse provides additional protection against electrical faults.

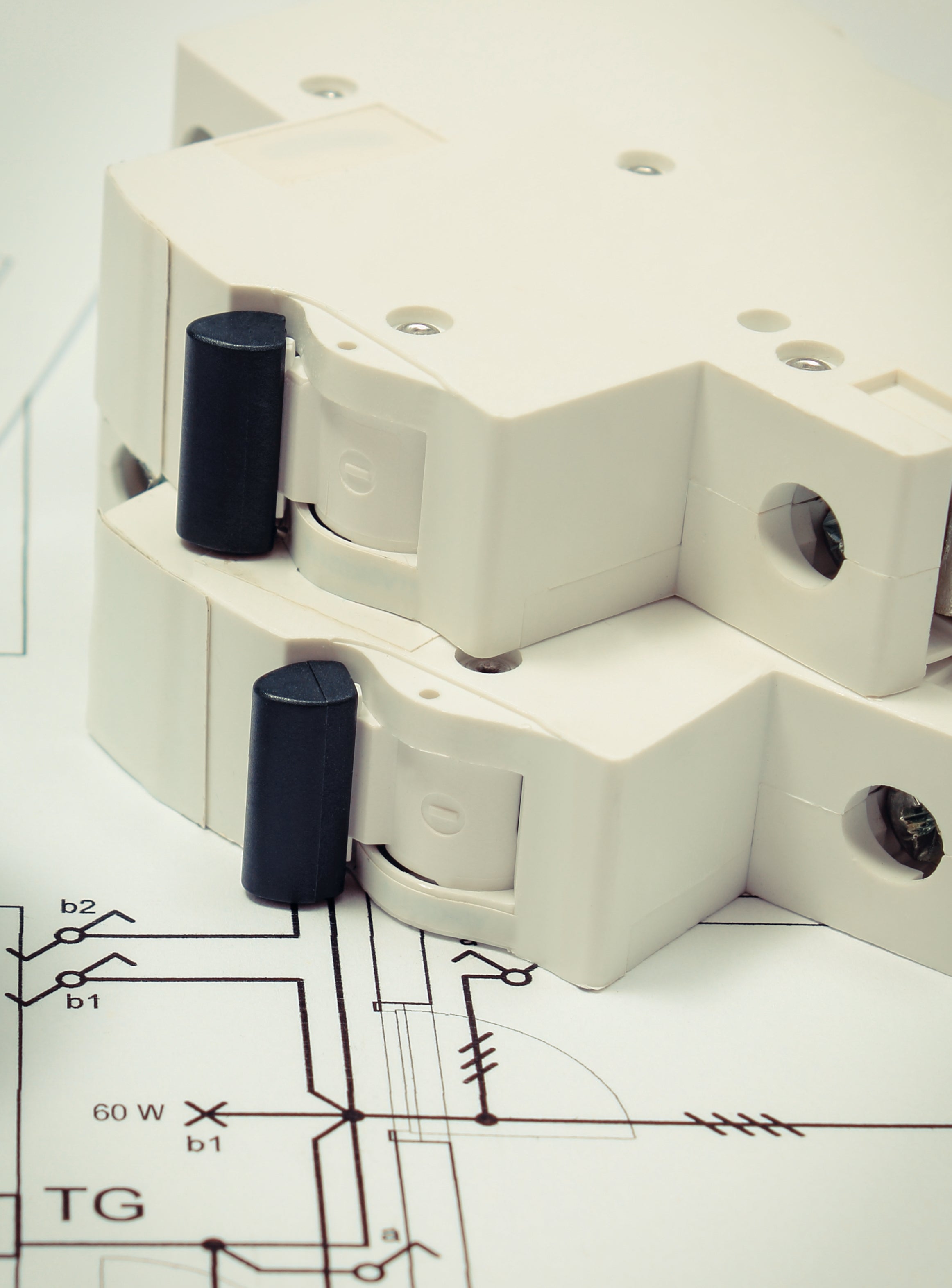

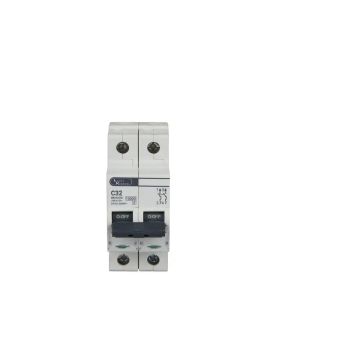

What is a Circuit Breaker?

A circuit breaker is a vital electrical component that protects circuits from overcurrent, short circuits, and faults by cutting off power. It is reliable, reduces fire risks and outages, and extends equipment lifespan. Circuit breakers also offer isolation, selective protection, and can be reset easily without causing harmful fumes or damage.

Functions of Circuit Breaker

Circuit breakers perform several important protective and operational roles. They help maintain safe current levels. They also interrupt faults automatically and allow manual control of circuits when required. The functions of circuit breaker devices make them essential devices. They manage power distribution and protect equipment in modern electrical installations.

Overcurrent Protection

One of the primary functions of circuit breaker devices is protecting electrical circuits from overload conditions. The breaker trips automatically and disconnects the circuit when current exceeds the safe operating limit. This helps prevent overheating of wiring. It also reduces the risk of damage to connected appliances or industrial equipment.

Short Circuit Protection

Circuit breakers react quickly when a short circuit occurs in an electrical system. A sudden surge of current activates the breaker’s internal protection mechanism. This causes it to trip immediately. The fast response helps protect electrical wiring, panels, and equipment from severe damage caused by excessive electrical energy.

Automatic Fault Interruption

Circuit breakers continuously monitor electrical current. They interrupt the circuit automatically when unsafe conditions arise. This automatic operation reduces the need for manual intervention during faults. It also helps maintain electrical safety in systems where uninterrupted monitoring and rapid response are required.

Electrical Circuit Control

Circuit breakers also serve as switching devices. Technicians and engineers can manually turn circuits on or off during installation, testing, or maintenance work. This control capability helps manage electrical distribution efficiently. It also ensures that equipment can be safely isolated when required.

The Mechanism of a Circuit Breaker

Circuit breakers use internal detection systems. They monitor the electrical current flowing through a circuit. The breaker interrupts the circuit automatically during abnormal electrical conditions. This protective mechanism helps prevent damage to wiring and equipment. It maintains the overall safety of electrical systems.

Thermal Protection Mechanism

Many circuit breakers use thermal protection to detect overload conditions. A bimetallic strip inside the breaker heats up when excessive current flows through the circuit. The strip bends and triggers the tripping mechanism as the temperature rises. This action disconnects the circuit. Eventually, it prevents overheating of electrical wiring.

Magnetic Fault Detection

Circuit breakers also include magnetic protection that reacts quickly to short circuit faults. An electromagnetic coil inside the breaker generates a strong magnetic force when a sudden current surge occurs. This force activates the trip mechanism immediately. It disconnects the circuit and protects electrical equipment from severe damage.

Automatic Circuit Interruption

The breaker trips without requiring manual intervention when abnormal current levels are detected. This automatic interruption ensures that electrical faults are handled quickly. It helps maintain safe operation within residential, commercial, and industrial electrical systems.

Reset and Restoration of Power

The circuit can usually be restored by resetting the breaker after a circuit breaker trips. The breaker handle can be moved back to its original position once the cause of the fault has been identified and corrected. This reset capability allows circuit breakers to be reused without replacing internal components.

Application of a Circuit Breaker

Circuit breakers are widely used in electrical systems. This is because they provide reliable protection. Also, these devices can be easily reset after a fault. Below are some of the most common application of circuit breaker devices.

Residential Electrical Protection

Circuit breakers protect electrical wiring and appliances from overload conditions in homes. The breaker trips and stops the electrical flow when too many devices draw power from a single circuit. This helps prevent overheating of wires. It also reduces the risk of electrical fires, making residential electrical protection a primary application of circuit breaker devices.

Commercial Electrical Systems

Office buildings, hospitals, and commercial facilities rely heavily on circuit breakers. They help maintain safe electrical operations. These devices monitor electrical current continuously. They disconnect circuits when abnormal conditions appear. This ensures that equipment remains protected. Also, they ensure that the power distribution stays stable.

Industrial Equipment Protection

Heavy machinery and motors require strong electrical protection. Circuit breakers in power distribution panels monitor these circuits. The breaker trips quickly. It isolates the faulty section of the system when an overload occurs.

Electrical Distribution Control

Another important function of circuit breaker devices is circuit control. Engineers and technicians can manually switch circuits on or off during installation or maintenance. This capability makes breakers useful for both protection and system management.

Difference Between Fused Disconnect Switch and Circuit Breaker

The main difference between fused disconnect switch vs circuit breaker lies in how each device interrupts the electrical current. Below is a table differentiating between fused disconnect switch vs circuit breaker for your better understanding.

Fused Disconnect Switch vs Circuit Breaker: Which Application Should You Choose?

You must evaluate the following when evaluating fused disconnect switch vs circuit breaker:

• Protection level

• Operational needs

• Maintenance practices

When you evaluate disconnect switch vs circuit breaker, you will realise that both devices serve important roles in circuit safety and control. It is important to understand where each device performs best. This helps engineers and technicians select the most suitable solution for reliable electrical performance.

When to Choose Fused Disconnect Switch

A fused disconnect switch is often selected in:

• Installations where strong short-circuit protection are needed

• Installations where safe manual isolation are required.

Industrial motor circuits, HVAC systems, and equipment panels commonly use these switches. Their fuse mechanism responds quickly to excessive current. Also, the manual switching feature allows technicians to disconnect power safely during servicing or inspection.

When to Choose Circuit Breaker

Circuit breakers are generally preferred in systems that require frequent switching. They also offer easy fault restoration and continuous monitoring of electrical current. Residential distribution boards, commercial buildings, and industrial control panels often rely on breakers. Their reset capability reduces downtime. Also, their automatic tripping mechanism helps maintain safe and stable electrical operation across multiple circuits.

Also Read: Miniature Circuit Breaker (MCB) Vs Isolator Switch: Understanding Differences And Uses

Conclusion

Choosing the right electrical protection device is like securing your home—it ensures safety, reliability, and peace of mind. Circuit breakers and fused disconnect switches protect systems from hazards. Lauritz Knudsen Smartshop offers a wide range of reliable devices, providing efficient protection for residential, commercial, and industrial electrical needs.

 FAQ

Q1. Can a fused disconnect switch replace a circuit breaker?

Ans. A fused disconnect switch can sometimes perform a similar protective function. But it does not completely replace a circuit breaker in every application. Fused switches rely on replaceable fuse elements for protection. On the other hand, circuit breakers trip automatically and can be reset. The choice depends on system design, maintenance preference, and protection requirements.

Q2. Where are fused disconnect switches commonly used?

Ans. Fused disconnect switches are widely used in:

• Industrial panels

• HVAC systems

• Motor control installations

• Electrical distribution boards

They isolate electrical circuits during maintenance. The switches also protect equipment from overload or short-circuit conditions. These devices are especially useful where manual disconnection and strong fault protection are required.

Q3. Which device is easier to operate?

Ans. Circuit breakers are generally easier to operate. This is because they can simply be reset after a fault occurs. In contrast, a fused disconnect switch requires the fuse to be replaced before restoring power. However, both devices are reliable. They are simple to use when installed properly within an electrical protection system.

Q4. Where are circuit breakers typically used?

Ans. Circuit breakers are commonly installed in:

• Residential electrical panels

• Commercial buildings

• Industrial power systems

They help protect electrical circuits from overload and short-circuit conditions by automatically interrupting current flow. Their reset capability makes them suitable for installations where faults may occur more frequently.

Q5. What happens when a fused disconnect switch operates?

Ans. The fuse element inside the device melts. It interrupts the electrical circuit when a fused disconnect switch operates due to excessive current. This stops the flow of electricity. It helps protect connected equipment from damage. The blown fuse must be replaced with a correctly rated one before power restoration.

Q6. Which device is better for industrial applications?

Ans. Both circuit breakers and fused disconnect switches are widely used in industrial installations. Their usage depends on protection needs. Circuit breakers offer reset capability and advanced monitoring features. On the other hand, fused disconnect switches provide fast short-circuit protection and safe manual isolation. The appropriate device depends on system design and operational requirements.

Q7. What are the signs that a circuit breaker needs maintenance or replacement?

Ans. The following signs may indicate that a circuit breaker requires inspection or replacement:

• Frequent tripping

• Overheating

• Burning smells

• Unusual noises

• Visible physical damage

Regular testing and maintenance help ensure reliable performance. A qualified electrician should examine the breaker to maintain electrical safety.

Q8. Which provides better short-circuit protection?

Ans. Fused disconnect switches often provide extremely fast short-circuit protection. This is because the fuse melts quickly when excessive current flows. Circuit breakers also offer strong protection. But their response depends on the internal protection mechanism. Both devices are used together for improved overall electrical safety in many industrial systems.

Q9. Which device needs more maintenance?

Ans. Fused disconnect switches may require more maintenance. This is because the fuse must be replaced after it operates during a fault. Circuit breakers typically require less frequent replacement. This is because they can be reset. However, both devices should be inspected periodically. It ensures they continue providing safe and reliable circuit protection.
