How to Test and Maintain MCB Switches for Optimal Performance?

How to test and maintain MCB switches for optimal  performance?

Miniature Circuit Breakers are designed for durability and long-term use. An MCB might stay idle for years and still function as intended. But if a malfunction occurs, major errors can happen. Circuit breaker testing and maintenance can help in reducing that risk and ensure the smooth running of your electrical installation and connected equipment.

MCB Testing & Maintenance Guide – Quick Navigation

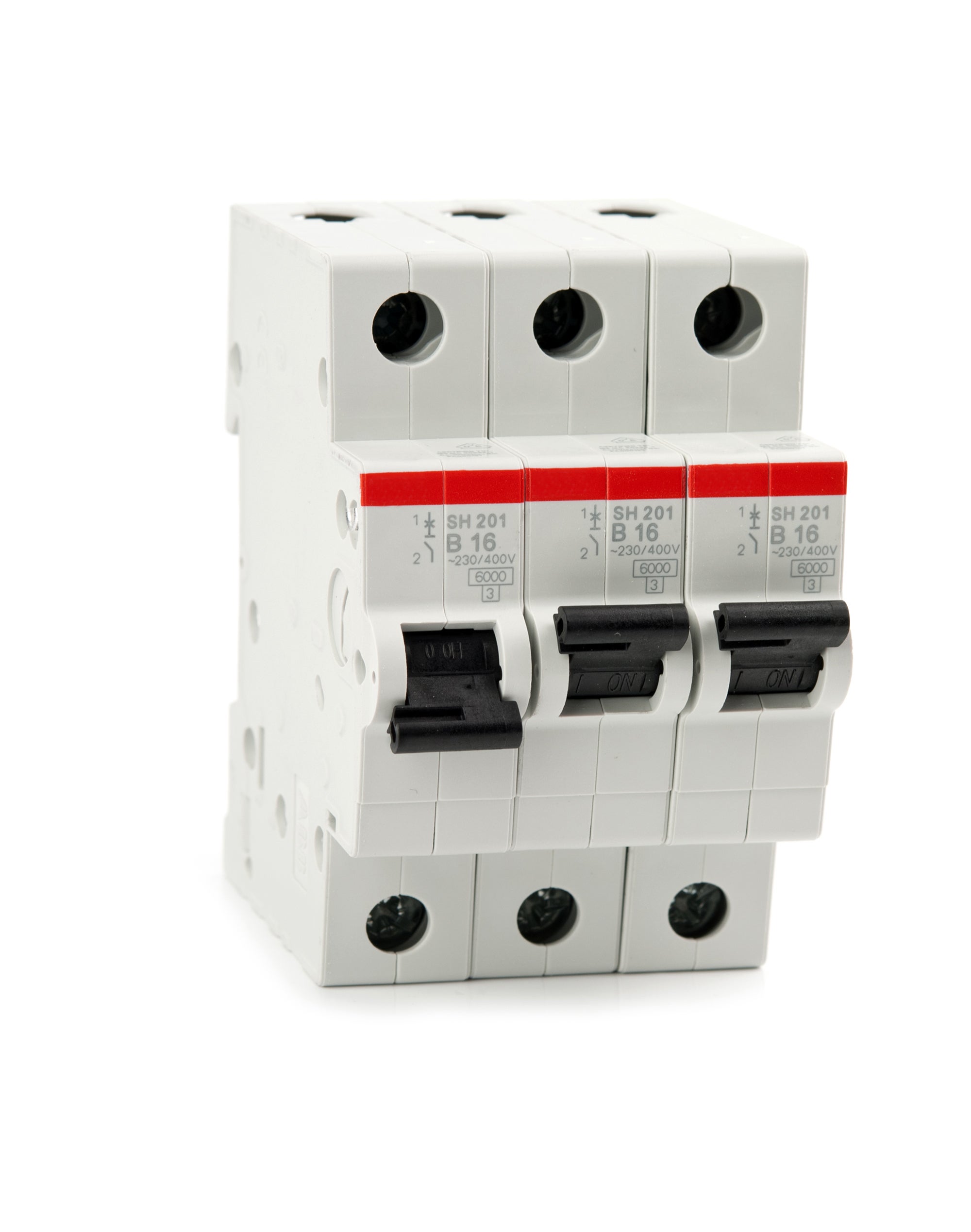

What is MCB Switch?

An MCB switch, or Miniature Circuit Breaker, is a key part of any electrical setup. It turns off electrical circuits when faults occur, such as overloads or short circuits. Unlike fuses, which must be swapped after each trip, MCBs can be reset with ease. Knowing what is MCB switch, how to test mcb, and how it works is the first step to keeping your home or office safe and sound.

Use of MCB Switch

MCB switches are integral in protecting homes and workspaces from electrical risks. From saving costly devices to keeping the system up and safe, they serve many uses. Here are the key ways an MCB switch helps you.

  • Protection from Overload: An MCB switch for home cuts the power when too much flow is sensed, which keeps wires and devices from harm or fire.

  • Safety in Electrical Systems: A smart MCB switch adds a strong line of safety. It trips fast when a fault occurs, which helps stop shocks and heat build-up.

  • Home and Commercial Applications: In homes, the MCB switch for home protects all the devices. In big work zones, it keeps large loads and machines safe from faults.

  • Easy Operation and Maintenance: The MCB switch is made to be quick and smooth to use, and it without the need for complex tools.

  • Cost-Effective Solution: Even with an affordable MCB switch price, it gives great value. It’s a smart buy for both homes and businesses that want safe electrical circuits.

Steps for Checking and Testing an MCB

Before we begin with the list of things to check when testing an MCB, please note that all such checks should be performed by a certified professional or an electrician with field knowledge. Handling electrical components without the proper tools and knowhow can be hazardous.

Steps for Checking and Testing an MCB

Now, let's have a look at the steps for testing an already installed circuit breaker for quality and performance.

Step 1: Visual Examination of the MCB Box and MCBs

  1. 1. The MCB box and plastic parts should be clean and without visible damage or defects. Since these components are often installed in exposed environments, there is always a possibility of damage, such as cracks or air bubbles or deformation on the surface.

  2. 2. The metal parts of the MCB box and MCB should not be corroded or showing signs of damage. Exposure to moisture or damp conditions can prematurely damage the external and internal metal parts in an MCB. And since metals are good conductors of heat and electricity, a damaged part can increase the risk of handling the device.

  3. 3. The content and color of the labels should be clearly visible. This is especially required if you plan to swap out components and install replacements. Undamaged MCB labels can help you identify the product specifications and easily find a like-for-like replacement.

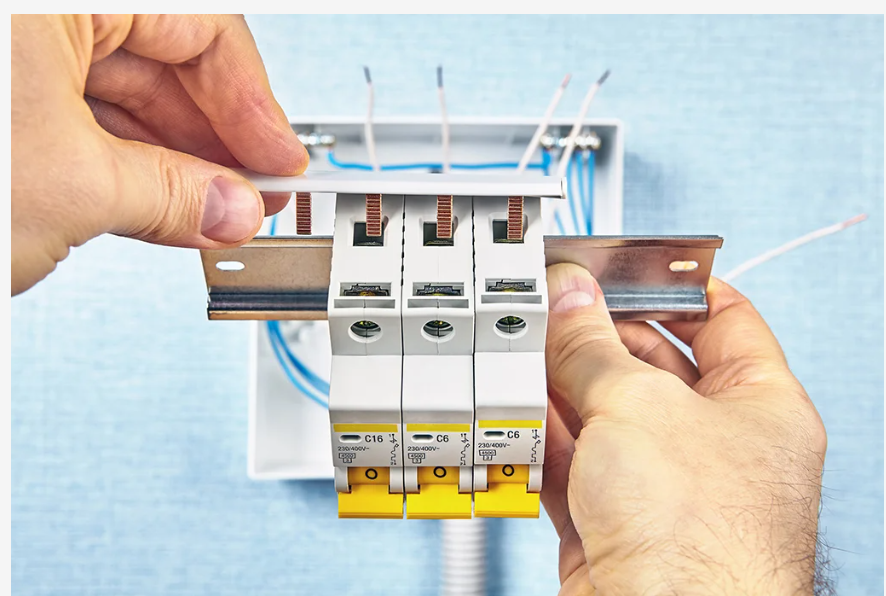

  4. 4. Lastly, another thing to note is that the MCB should be aligned and fixed properly on the board without any protrusions or wires sticking out from the side.

Step 2: Testing the mechanical operation of an MCB switch

All miniature circuit breakers are factory tested for safe and smooth operation before shipping. For example, Lauritz Knudsen (Formerly L&T Switchgear) circuit breakers promise years of reliable use by going through a rigorous testing phase before they are packaged and made available to the end users.

Ideally, an MCB switch should be able to perform five on and off cycling operations without slipping or jamming. If your MCB switch passes this test, then it can be assumed that the MCB is mechanically sound.

Step 3: Checking the performance of your MCB switches

Testing MCB performance requires a slightly more technical approach than the visual and mechanical inspections recommended above.

  1. 1. Delay Testing: This is performed to verify the tripping time of an installed miniature circuit breaker under overload conditions. It helps in testing for thermal overload protection and magnetic short-circuit protection provided by the MCB.

  2. 2. Instantaneous Testing: There are different types of MCBs, separated by curve type (e.g., B, C, D) that defines the range of currents at which an MCB will trip (see table below). Instantaneous MCB testing allows the technician to determine if the unit is able to trip (open the circuit) within the pre-defined timeframe to ensure equipment and personnel safety.

    MCB Type

    Input Current Range

    Trip Time

    Type B

    3 to 5 times the full load current

    0.04 to 13 sec

    Type C

    5 to 10 times the full load current

    0.04 to 5 sec

    Type D

    10 to 20 times the full load current

    0.04 to 3 sec

    Type K

    8 to 12 times the full load current

    <0.1 sec

    Type Z

    2 to 3 times the full load current

    <0.1 sec

  3. 3. Power Frequency withstand Voltage Test: This test is conducted to check the insulating strength of an installed MCB by applying high voltage at power line frequency (usually 50 Hz to 60 Hz) for specific durations. It tests the ability of the MCB to withstand voltage spikes that may occur in real-world electrical systems.

Maintenance Tips for MCB Switches

Maintaining your MCB switch is important for its long-term use and safe operation. Regular checks and proper care help prevent potential damage, improve working, and increase the service life of your electrical system. Here’s how to maintain your breakers effectively.

  • Regular Visual Inspections: Look for cracks, discoloration, or damage. A compromised MCB switch casing can affect performance and may be an early sign of internal issues.

  • Mechanical Testing: To verify if the MCB is working or not, perform manual on/off cycling. The switch should move freely without jamming or resistance.

  • Testing Under Load: A key step in the MCB testing procedure, load testing ensures the breaker reacts accurately to overload and short-circuit conditions.

  • Cleaning and Lubrication: Dust and grime can affect the switch mechanism. Clean your MCB switch with a dry cloth and ensure components move freely.

  • Record Maintenance Results: Always log your MCB testing procedure and findings. Keeping a record helps in troubleshooting and comparing future performance.

How to Fix MCB Switch?

When an MCB switch trips or fails, identifying and knowing how to fix MCB switch quickly is essential to restoring power and protecting your electrical system. The following methods help in diagnosing and addressing common MCB faults.

  • Identify the Issue: To know how to check MCB is working or not, inspect for loose connections, physical damage, or frequent tripping that might indicate internal failure.

  • Resetting the MCB: Once you’ve identified and fixed the fault, simply flip the MCB switch back to the 'ON' position. If it stays up, the issue may be resolved.

  • Replacing Faulty Components: If you're unsure how to fix the MCB switch, consult an electrician. Damaged or burnt switches should be replaced with compatible models.

  • Check Electrical Connections: Loose or corroded wires can affect performance. Tighten all terminals to ensure proper contact and consistent operation of the MCB switch.

  • Test After Repairs: After repair or replacement, conduct the full MCB testing procedure to confirm that the unit is functioning as expected.

Things to Remember When Testing & Fixes an MCB

Certain precautions to take before you begin testing & fixing an MCB box:

  1. 1. Have proper test equipment to carry out the maintenance. Normally, you will need a power source, a current transformer, a voltage transformer, a multimeter, jumper wires, and a test set.

  2. 2. Always isolate the circuit breaker from power supply. Also, lock out and tag the circuit breaker to prevent anyone else from accidentally activating it.

  3. 3. Know the technical specifications of the MCB you are testing. It's important to know the rated response time, trip current, and trip voltage to test an MCB. Testing a unit without knowing the specifications may lead to accidental damage or electrical hazards.

  4. 4. Remember to test the circuit breaker contacts. Contacts are the part that make or break the electrical connection to an MCB. Check their condition and alignment with a contact resistance tester.

  5. 5. Record and tag your test results after the checks. It will be helpful if and when you decide to test the electrical setup again.

  6. 6. Clean electrical products using a dry and non-abrasive cloth.

  7. 7. Disconnect and replace faulty MCBs, wiring, and other accessories immediately.

Also Read:

Why are MCBs Important?

MCBs are not just safety devices; they protect homes, devices, and people from harm. They keep the whole electrical setup safe and sound. Here’s why the MCB switch is important in any electrical setup.

  • Prevention of Electrical Fires: Faults can lead to excessive heat and arcing. The MCB switch immediately cuts power during such events, preventing fires before they start.

  • Protection of Expensive Equipment: The smart MCB switch helps protect appliances, computers, and industrial machinery from costly electrical damage.

  • Ensuring Operational Efficiency: A healthy MCB switch ensures minimal downtime. Quick tripping during faults helps keep operations running smoothly without extended outages.

  • Compliance with Safety Standards: Using an approved MCB switch for home or business ensures your system meets safety regulations and reduces liability in the event of electrical faults.

  • Durability and Long-Term Use: With the right MCB testing procedure and care, these breakers offer a long operational life, delivering reliable protection for years.

Which Type of MCB is Commonly Used in Homes?

Now, you may be wondering, which type of MCB do you have at your home? Typically, Type C MCBs are used for domestic applications. These MCBs are capable of supporting medium current load and trip when the flow of current exceeds 5-10 times over normal.

a) Type B MCB

Type B MCBs are perfect for home setups with resistive loads, types as lighting, heating, or sockets. These breakers trip when the flow exceeds 3 to 5 times the rated load, offering safety for faults. They are the most commonly used MCB switches for home installations.

b) Type C MCB

Type C MCBs are used in homes where devices like Refrigerators, AC, or washing machines are used. These MCB switches trip at 5 to 10 times the full load current, making them suitable for slightly higher inrush currents during equipment startup.

c) Type D MCB

Type D MCBs are used for commercial applications that include heavy loads like large motors or transformers. These breakers trip at 10 to 20 times the full load current and are not typically recommended as a standard MCB switch for home use due to their delayed response.

d) Type K MCB

Type K MCBs are used to handle high inrush currents from motors and transformers but provide faster response than Type D. They trip at 8 to 12 times the full load current. This type is commonly used in a light industrial setup but can be used in advanced smart MCB switch systems.

e) Type Z MCB

Type Z MCBs are highly sensitive and trip quickly, between 2 to 3 times the rated current. They are ideal for protecting delicate electronic devices. Although not common in general, MCB switches for home setups are valuable in systems requiring fast disconnection.

Learn more about: Types, Sizes, and Uses of MCB

Looking for High Quality MCB Switches Online?

In case you recently had your electrical setup inspected and found some anomalies, and are now looking for high-quality replacement MCBs online, the Lauritz Knudsen (LKEA) is here to help you buy the best electrical components online. We are the official channel for selling Lauritz Knudsen (Formerly L&T Switchgear) products online in India. Sign-up today to browse and order MCBs and other electrical products at the best available prices.

FAQs: Common Questions About MCB Testing & Maintenance

Q1. How often should MCB switches be tested?

Ans: Test your MCB switch once a year or after any fault. Regular checking confirms the best performance and safety.

Q2. What are the signs that my MCB needs maintenance?

Ans: If your MCB switch trips frequently or doesn't reset easily, it may need servicing or replacement.

Q3. How do I reset an MCB switch after it trips?

Ans: Flip the MCB switch to OFF, identify the issue, fix it, and turn it back to 'ON'. If it holds, the fault is cleared.

Q4. Can I test the MCB switch under load conditions?

Ans: Yes, load testing is part of the MCB testing procedure and confirms that the breaker trips under fault conditions.

Q5. Are there any safety precautions to take when maintaining or testing MCB switches?

Ans: Always shut off the power and follow the standard MCB testing procedure to avoid electrical damage.

Q6. Can an MCB be replaced easily?

Ans: Yes, replacing an MCB switch is easy but it should be done by a certified expert for safety.
