What is an Induction Motor? Types and Applications

Motors are everywhere, quietly converting electrical energy into motion all day long. Still, most people never think about motors unless something stops spinning. A fan slows down, a pump refuses to start, or a machine makes an unfamiliar sound. This is usually when the word “motor” comes up.

Among all the motor types used today, induction motors are by far the most common. Not because they are fancy or complex, but because they work without fuss. They tolerate rough conditions, don’t need much attention, and last longer than most people expect. To really understand what is induction motor, it helps to move away from formulas and focus on how it behaves when connected to power and load.

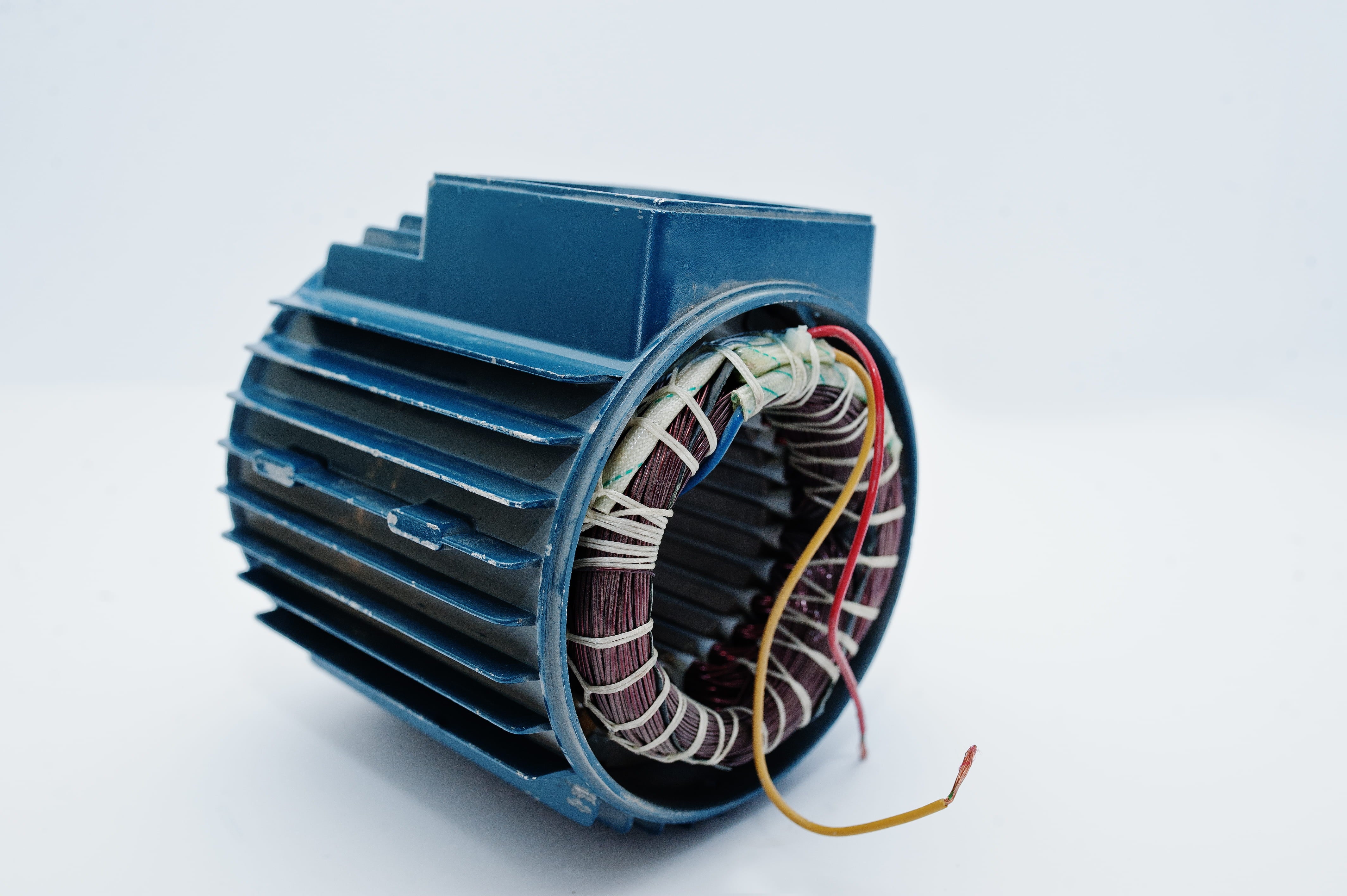

What is Induction Motor?

When people ask what is induction motor, they are usually expecting a strict definition. In practical terms, an induction motor is a machine where electricity never touches the rotating part directly. Power is supplied to the stator, and the rotor reacts to it without any physical electrical connection.

As current flows through the stator, it creates a magnetic field that doesn’t stay still. This field moves. When this moving field passes over the rotor conductors, it induces current in them. This is the heart of the induction motor principle. The rotor current and stator magnetic field interact, producing force. The force causes rotation.

One detail that matters a lot is speed. The rotor never reaches the same speed as the magnetic field. It always stays slightly behind. The small difference is not a flaw, it’s necessary. Without it, induction would stop. Understanding what is induction motor becomes much easier once this idea clicks.

Induction Motor Characteristics

Every motor has habits. Induction motors are no different. These habits are what engineers refer to as induction motor characteristics, and they matter more in real use than in theory. Before separating them, it’s important to remember that no characteristic works alone. Change the load, and everything shifts slightly.

Speed Behaviour

An induction motor doesn’t change speed dramatically when the load varies. It slows down a little, but not enough to cause problems in most applications. That’s why it’s trusted in systems where steady motion matters. This small speed variation helps absorb load changes smoothly without sudden jerks or stress on connected mechanical parts.

Torque Behaviour

Torque builds up as the rotor slips more. There is a peak point, after which the motor cannot handle extra load. This natural limit prevents mechanical damage in many cases. If the load continues to increase beyond this point, the motor slows rapidly and may eventually stall.

Current Draw

At startup, the motor draws more current than during normal operation. As it gains speed, current settles down. This behaviour explains why protection and starting methods are necessary. Without proper control, high starting current can stress cables, switches, and power supply systems.

Efficiency Pattern

Efficiency improves as the motor approaches its designed load. Running far below that load wastes energy. Lightly loaded motors continue consuming power, but much of it is lost as heat rather than useful output.

How does an Induction Motor Work?

Many people wonder how does an induction motor start when the rotor isn’t powered directly. The answer lies in slip. At the moment of startup, the rotor is stationary. Slip is maximum. This creates strong induced current and enough torque to begin rotation.

Explaining how does an induction motor work becomes easier if you imagine motion instead of wiring diagrams. The stator creates movement. The rotor responds. That’s the entire story.

Magnetic Field Creation

When AC supply reaches the stator, a rotating magnetic field is formed. Its speed depends on supply frequency and motor design. This field is uniform and continuous, creating the conditions needed for smooth rotation without sudden changes or interruptions.

Rotor Reaction

This rotating field cuts through the rotor conductors. Because of electromagnetic induction, current appears in the rotor. The induced current exists only because of relative motion, which is why the rotor must lag behind the magnetic field.

Torque Generation

The rotor current interacts with the magnetic field, creating force. That force pushes the rotor in the same direction as the field. This interaction follows basic electromagnetic laws and is responsible for converting electrical energy into usable mechanical motion.

Continuous Operation

The rotor never catches up completely. The constant lag keeps the process going. As long as electrical supply and load are present, this slight speed difference sustains torque and continuous rotation.

This simple interaction explains how does an induction motor work in daily operation.

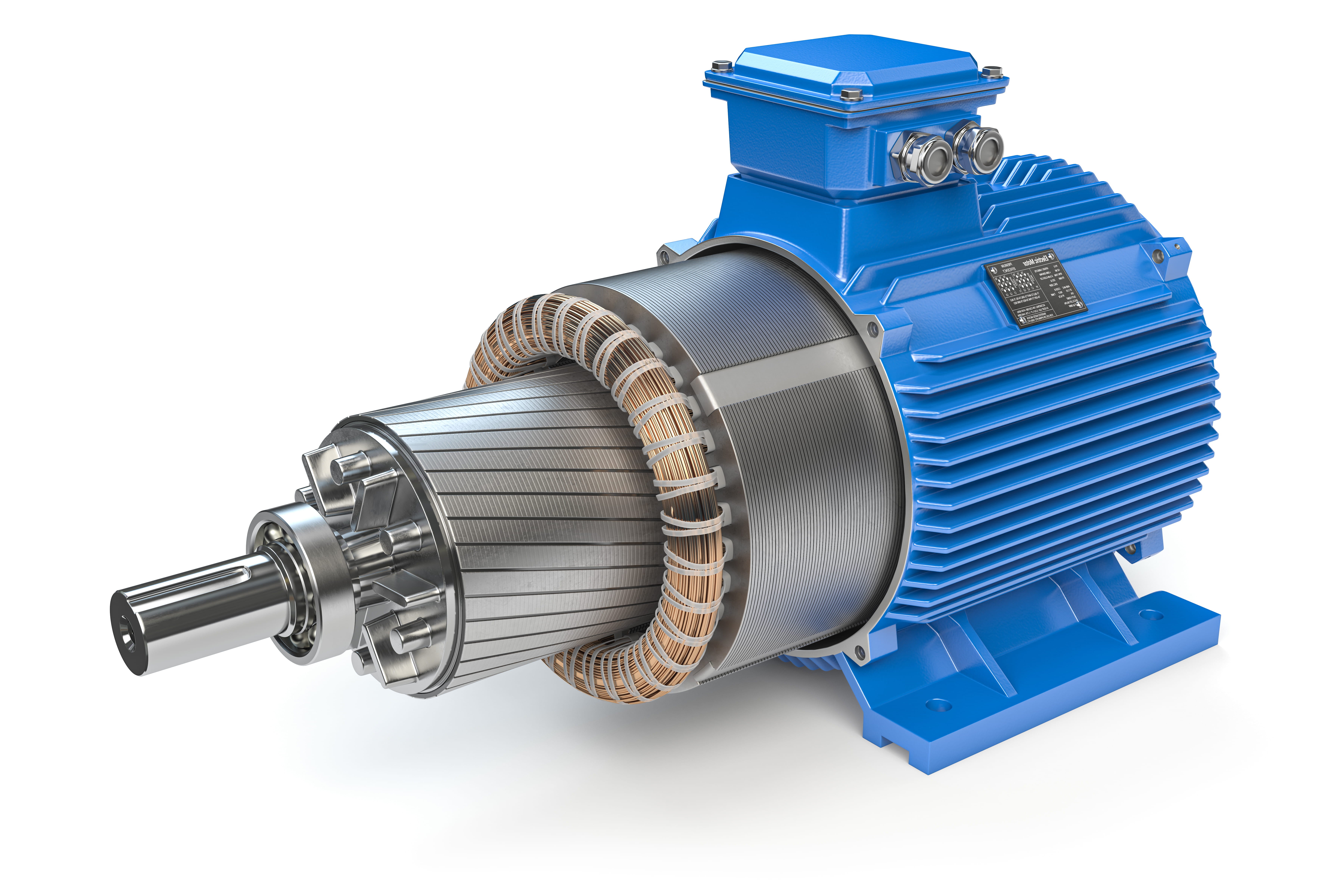

Types of Induction Motor

There are several types of induction motor, and each exists because one design doesn’t fit every situation. Before choosing a motor, people usually think about power supply, load type, and starting conditions.

Single-Phase Induction Motor

Single-phase motors are common in homes. They don’t start on their own and need extra help at the beginning. Once running, they perform well for light tasks. The working principle of single phase induction motor relies on creating a second phase temporarily. A single-phase supply produces a pulsating magnetic field, not a rotating one. To fix this, an auxiliary winding or capacitor is added.

Three-Phase Induction Motor

Three-phase induction motors don’t need help to start. The supply itself creates a rotating field. This makes them ideal for factories and commercial spaces. They offer better efficiency, smoother torque, and are capable of handling heavier loads for long operating hours.

Squirrel Cage Induction Motor

This is the most widely used design. It’s simple, strong, and needs very little maintenance. Its rugged construction allows it to operate reliably even in dusty, hot, or mechanically demanding environments.

Slip Ring Induction Motor

Slip ring motors are chosen when high starting torque is needed. They are less common but very useful in heavy-duty applications. These motors allow controlled starting current, which helps reduce mechanical stress during startup of large loads.

Applications of Induction Motor

The application of induction motor is almost everywhere, mainly because these motors tolerate long hours and imperfect conditions. Instead of precise control, they offer consistency.

Household Use: Fans, refrigerators, mixers, and pumps depend on induction motors for daily operation. Their quiet running, long life, and minimal servicing needs make them ideal for appliances used every single day.

Industrial Use: Factories rely on them for conveyors, compressors, crushers, and machine tools. These motors handle continuous duty cycles well and perform reliably under heavy loads and demanding environments.

Commercial Use: HVAC systems, elevators, and water circulation units use induction motors extensively. Their ability to run smoothly for long periods helps maintain comfort, airflow, and consistent system performance.

Agricultural Use: Irrigation pumps and processing equipment benefit from their durability. Induction motors withstand dust, moisture, and extended operating hours common in agricultural field conditions.

Also Read: Everything You Need To Know About Motor Controllers

Conclusion

Induction motors don’t attract attention, and that’s exactly why they succeed. Their design avoids unnecessary complexity. Their behaviour is predictable. Their maintenance needs are minimal. Understanding what is induction motor, how it reacts to load, and where it performs best helps in making better choices that last longer.

Access to reliable components also plays a role in performance and safety. Platforms like SmartShop of Lauritz Knudsen Electrical & Automation simplify the process by bringing trusted electrical solutions like inductions motors and motor starter together in one place. In the end, induction motors continue to do what they have always done- run quietly, consistently, and without asking for much in return.

FAQ's

Q1. Do induction motors stop working if the voltage isn’t perfect?

Ans: Not immediately. They usually keep going unless the fluctuation is constant or extreme. Most problems don’t appear suddenly. They creep in over time, often unnoticed until performance starts dipping.

Q2. Why do people trust induction motors for machines that never really shut down?

Ans: Probably because they have seen them survive things other motors don’t. Heat, long hours, missed maintenance- induction motors tend to tolerate all of it better than expected.

Q3. Does motor size change what happens when you switch it on?

Ans: It does, and installers notice it right away. Smaller motors start quietly. Bigger ones feel heavier on the system, which is why nobody treats them casually during startup.

Q4. When an induction motor fails, is replacement the only option?

Ans: Usually not. Many failures aren’t dramatic. Bearings wear out. Insulation ages. Cooling gets blocked. Whether it’s repaired or replaced often depends more on downtime pressure than damage itself.

Q5. Is using an induction motor outdoors a bad idea?

Ans: It can be, if it’s ignored. With the right enclosure and airflow, they handle rough environments surprisingly well. Left exposed, even the toughest motor won’t last long.
