What is a Power Transformer? Types & Working Principle

Electricity doesn’t move around in a neat, ready-to-use form. Before it reaches factories, cities, or even smaller substations, it goes through several changes. Voltage levels are raised, lowered, adjusted, and stabilised. Somewhere in that process, large transformers quietly do their job. This is usually when you start wondering what is power transformer.

What is Power Transformer?

Power transformers are installed in power stations and major substations. Their job is simple in theory- change voltage. But, it is demanding in practice.

A power transformer transfers electrical energy between circuits using electromagnetic induction. It is built to operate efficiently when loads are high and steady. This is a key part of the power transformer as a concept. These transformers are not meant for fluctuating demand. They are designed to sit in one place and run continuously.

Understanding what is power transformer also means recognising its role in reducing transmission losses. By stepping voltage up or down at the right stages, power can move efficiently across long distances without excessive current flow.

Transformers often work with an automatic power factor control panel. An automatic power factor control panel keeps power factor within limits. Using this improves efficiency and reduces losses.

Power Transformer Working Principle

The power transformer working principle relies on electromagnetic induction. When alternating current flows through one winding, it creates a changing magnetic field in the core. The field induces voltage in another winding. There’s no physical connection between the two sides.

Magnetic Field Formation

When AC supply is applied, current starts flowing in the primary winding. This produces a magnetic field inside the laminated core. The core guides the flux efficiently and reduces losses. Without a stable magnetic field, voltage transformation wouldn’t happen properly.

Induced Voltage Behaviour

As the magnetic field changes, voltage appears in the secondary winding. The amount depends on how many turns the coil has. This allows voltage to increase or decrease without electrical contact, which improves safety in high-voltage systems.

Turns Ratio Control

Voltage change depends on the turns ratio. More turns on the secondary side increase voltage. Fewer turns reduce it. This simple relationship is what makes transformers adaptable to different transmission needs.

Response Under Load

Current flows on the secondary side when a load is connected. The transformer automatically draws matching current on the primary side. This balance happens continuously during operation.

Power Transformer Specifications

Choosing the right transformer depends heavily on power transformer specifications. These values describe how the transformer behaves under real conditions. Important power transformer specifications include voltage rating, MVA capacity, insulation level, frequency, and cooling method.

Voltage Rating

This defines the maximum voltage the transformer can safely handle. It must match system voltage levels to prevent insulation breakdown. If the voltage rating is too low, insulation failure can occur over time. A properly rated transformer ensures safe operation during voltage fluctuations and protects connected equipment from electrical stress.

Power Rating

Measured in MVA, this shows how much load the transformer can carry continuously without overheating. Selecting the correct power rating is essential for reliable operation. Underrated transformers may overheat under load, while overrated ones increase costs unnecessarily and operate inefficiently at lower loads.

Cooling Method

Large transformers generate heat. Oil-based cooling systems help control temperature and extend service life. Effective cooling prevents insulation damage and maintains efficiency during continuous operation. Different cooling methods are chosen based on transformer size, load conditions, and installation environment to ensure stable thermal performance.

Core and Insulation

Good insulation and laminated cores reduce losses and improve long-term stability. The core material minimizes magnetic losses, while insulation prevents electrical leakage between windings. High-quality materials help the transformer operate reliably for decades under high voltage and continuous stress.

Types of Power Transformer

Not every power system behaves the same way, so using a single transformer type everywhere usually doesn’t work well. Voltage levels differ, locations differ, and how power is used changes from place to place. That’s why different types of power transformers exist. The idea is simply to pick what fits the situation, not what looks ideal in theory.

Step-Up Transformers

These are usually found near power plants. Their main job is to raise voltage so electricity can travel long distances without losing too much energy along the way. Once voltage is increased, current drops, which helps keep transmission losses under control during continuous operation.

Step-Down Transformers

These come into play at substations. Instead of pushing voltage higher, they bring it down to levels that make sense for industrial systems or further distribution. This step is important because equipment downstream isn’t designed to handle extremely high transmission voltages directly.

Three-Phase Transformers

Three-phase transformers are used when large amounts of power need to move efficiently. Rather than handling phases separately, everything is managed together in one unit. This saves space, simplifies the setup, and generally works better for large substations and transmission networks.

Difference Between Power and Distribution Transformer

The difference between power and distribution transformer comes down to purpose and operating behaviour. The difference between a power transformer and power distribution transformer also affects efficiency design and placement.

The power transformer vs distribution transformer clearly impacts maintenance needs.

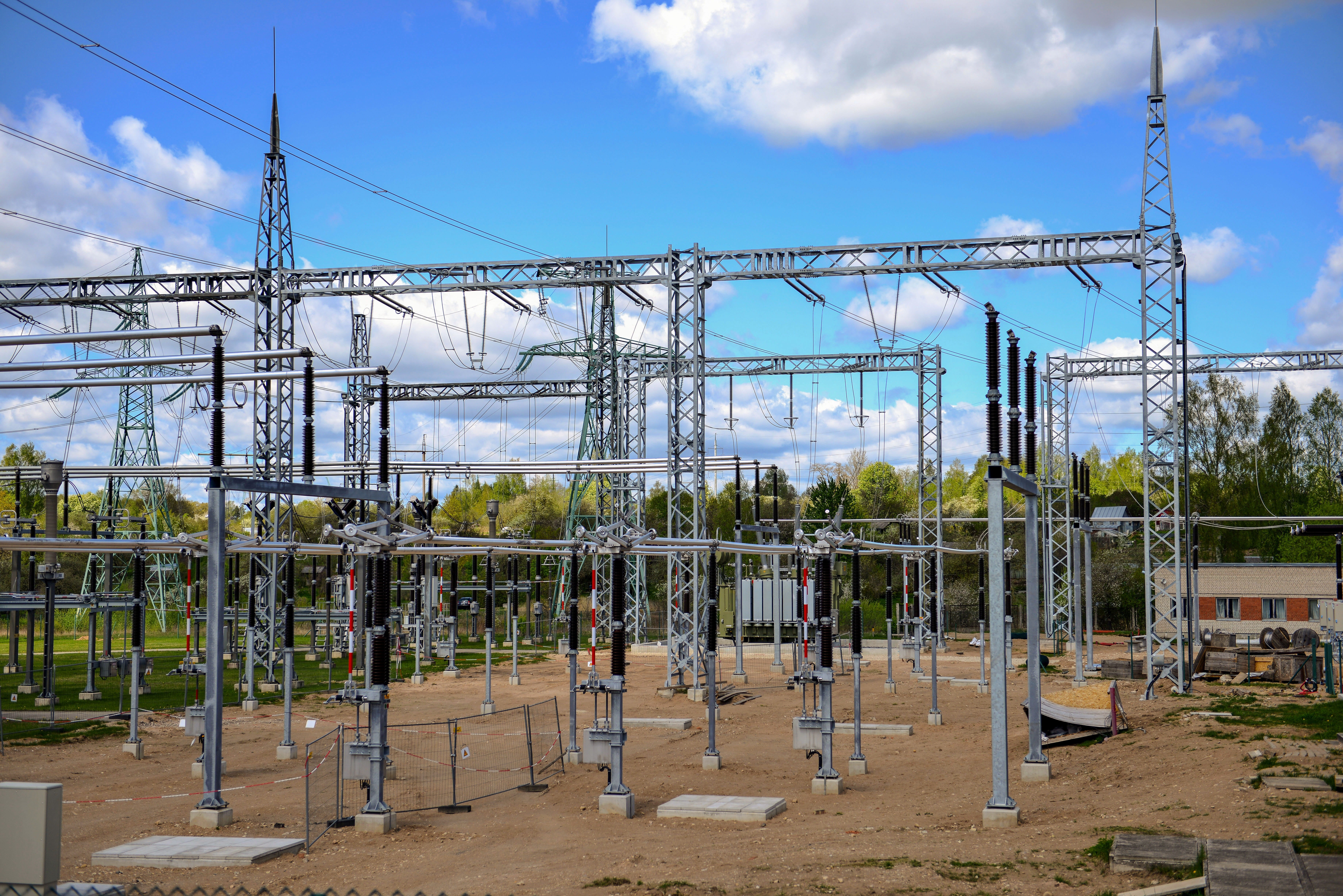

Power Transformer Applications

Power transformers are mainly used where voltage levels are high and power flow is continuous. These real-world power transformer applications keep electrical networks stable and efficient.

Power Generation Stations

At power generation stations, electricity is produced at a voltage that works well for generation, but not really for travelling long distances. Sending it out that way would lead to unnecessary losses. So power transformers are usually placed here to raise the voltage before transmission begins. It’s one of those steps that rarely gets noticed, but without it, long-distance power transfer wouldn’t work efficiently.

Transmission Substations

As electricity moves through the grid, it passes through transmission substations at different stages. Power transformers in these locations help keep voltage within a usable range. Sometimes the changes are small, sometimes more noticeable, depending on conditions. These adjustments help the grid stay balanced and reduce long-term stress on transmission equipment.

Large Industrial Power Systems

In large industrial setups, transmission-level voltage is simply too high to use directly. Power transformers are used to bring voltage down to levels that machinery can handle safely. They also help separate industrial systems from the main grid. This reduces the impact of voltage fluctuations that could otherwise interrupt operations or affect sensitive equipment.

Grid Interconnections

When different grids or regions are connected, their voltage levels don’t always line up naturally. Power transformers help smooth out those differences. They allow electricity to move between networks without creating instability. This becomes especially useful during peak demand or unexpected shortages, when support from another region may be needed.

Renewable Energy Plants

In renewable energy plants, power output isn’t always steady. Solar and wind generation change with weather conditions. Power transformers help adjust this output so it matches grid requirements. By stepping up voltage, they make it easier for renewable power to enter the transmission network without causing imbalance or disruption.

Power Transformer Symbol

The power transformer symbol is used in electrical drawings to show transformer connections. Engineers rely on this symbol to interpret system layouts. Understanding the power transformer symbol helps prevent wiring errors.

Also Read: A Complete Guide to Switch Mode Power Supply

Conclusion

Power transformers rarely get attention. But, they carry a massive responsibility. Understanding what is power transformer, how it works, and where it fits in the grid makes it easier to design reliable systems. Knowing the difference between power and distribution transformer prevents costly mistakes. With correct specifications and support from tools like an automatic power factor control panel, power transformers continue to keep large-scale power transmission stable and efficient.
