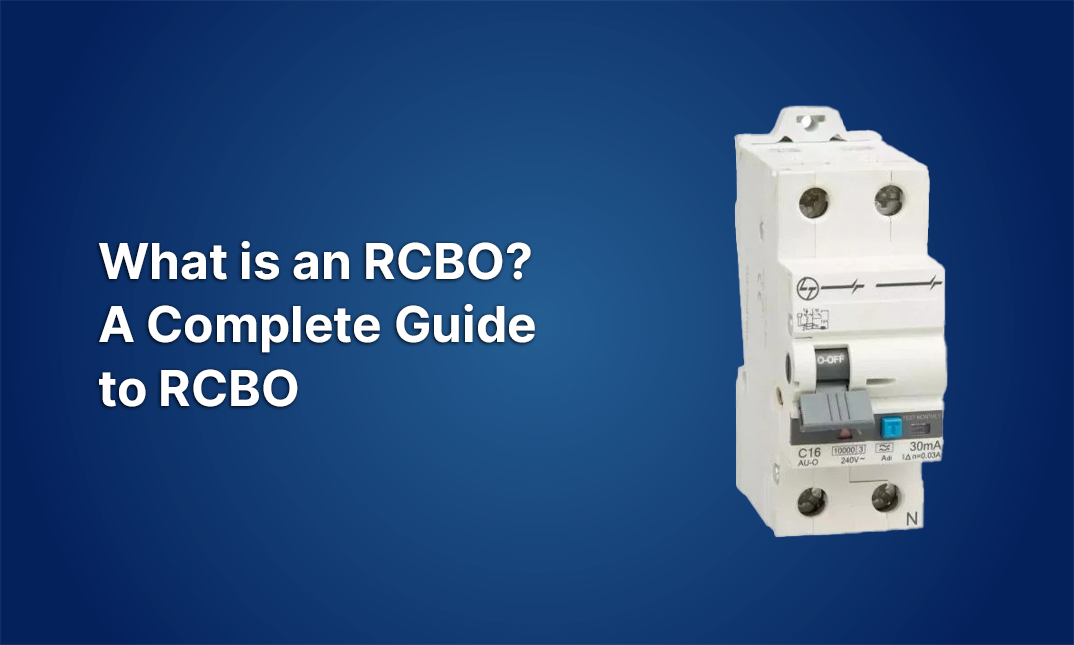

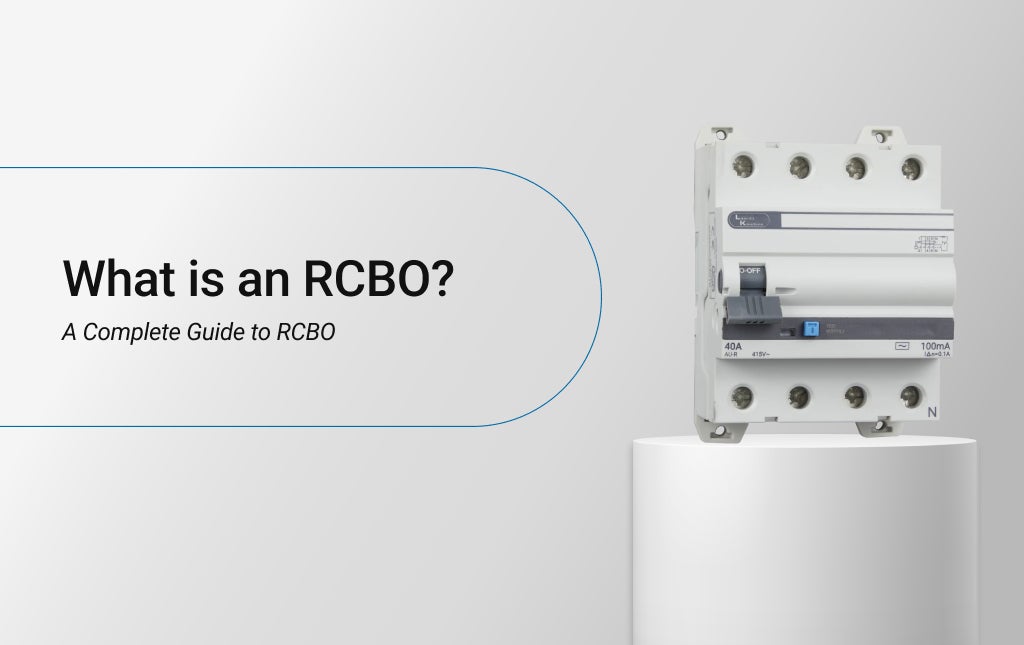

What is an RCBO? A Complete Guide to RCBO

Power quality issues, protection and safety always remain core concerns in electrical systems to prevent issues like short circuits or overloads. Every protection gadget, whether the Residual Current Breaker with Overload (RCBO), circuit breakers or fuses, has its special purpose in protecting electrical installations or equipment. But what is RCBO? How does an RCBO operate, and why is it important? In this guide, you will learn all the information about the RCBOs that can be useful for you: their types, applications and operation modes.

What is RCBO in Electrical?

RCBO full form is Residual Current Breaker with Overload. It is an advanced protection device that combines the functionality of two critical safety devices:

• Residual Current Device (RCD): Responsible for protecting against earth faults or leakage currents.

• Miniature Circuit Breaker (MCB): This can protect against overload and short circuits.

RCBO is one of the most critical circuit protection devices in modern-day electrical installation due to its unique ability to handle both electrical faults and overload challenges.

Importance of RCBO

The full form of RCBO clearly highlights the fact that it is a combination of two types of safety switch devices. RCBO offers both residual current protection and overcurrent protection. It replaces other devices, meaning that it saves space and costs. They are very common in houses, offices and factories where electrical safety is a major concern.

How Does an RCBO Work?

An RCBO operates on two main principles:

Residual Current Detection

The device measures the current flowing through a circuit. If it measures a leakage current when the current in the live conductor is not equal to the current in the neutral conductor, it shuts off the circuit to prevent accidents like electric shock or fire.

Overload and Short Circuit Protection

The RCBO also measures the current that is being drawn by the circuit. It trips when the current exceeds the device’s rated current because of an overload or short circuit to prevent the connected equipment from getting damaged due to heating up.

Types of RCBO

Some of the most common types of RCBO include:

Single-Pole RCBO

Single-phase circuits are commonly found in houses and other domestic establishments. They are intended for single-phase use.

Double-Pole RCBO

Covers the live wires and the neutral wire, which is suitable for a complicated wiring network.

Three-Phase RCBO

Made to suit industrial and commercial power usage areas to cater for 3 phase power supplies.

Type AC RCBO

Protection against AC earth faults is provided.

Type A RCBO

It protects both AC and pulsating direct current (DC) earth faults.

Type B RCBO

Highly useful at circuits with higher DC components, as often seen in photovoltaic utility and electric vehicle charging stations.

RCBO Working Principle

An RCBO comprises two key mechanisms:

Current Transformer

This component monitors the phase balance of the current, which is life, and the neutral conductor. If one is bigger than the other, there is a leakage current.

Thermal and Magnetic Trip Units

The thermal trip unit is triggered by an overload, and the magnetic trip unit is triggered by a short circuit. Together, these units ensure immediate tripping for the protection of the respective circuit.

Use of RCBO

The application of RCBO is widespread to some extent due to its versatility in protecting against various electrical problems. Some of its primary applications include:

• Residential Settings: Safeguards home circuits against any form of fault in order to provide safety to occupants of the house.

• Commercial Buildings: Protects basic infrastructure such as lighting, heating, ventilation, air conditioning, and office machines.

• Industrial Facilities: Offers consistent safeguards for many kinds of hefty vehicles, machines, and energy resources.

• Outdoor Installations: Suitable to use circuits that are affected by moisture and weather conditions, like garden lights and swimming pool lights.

RCBO Application

Due to its versatility and complete protection, RCBO can be applied to many different areas. Key RCBO application include:

• Circuit Protection: It saves money on power equipment by eradicating electrical faults before they cause further harm to electricity supply networks.

• Earth Fault Protection: Protects people from electric shocks occasioned by leakage currents.

• Overload and Short Circuit Protection: Satisfies electrical loads to various circuits to make sure that electrical currents used will not exceed the allowable limit.

• Energy Efficiency: RCBOs minimise wastage through electrical faults. Hence, they are part of the energy-saving drive.

• Integration with Smart Systems: Most of the contemporary RCBOs are compatible with smart monitoring systems that would help monitor their performance in real-time.

RCBO Price Overview

The RCBO price varies depending on the brand, type, and technical ability. The simple models are available at comparatively lower prices than more complex ones. Price comparisons, as well as feature comparisons, are vital to avoid any compromise of investments made.

Benefits of Using RCBO

• Enhanced Safety: RCD, with added features of an MCB, provides the most versatile form of protection.

• Space Efficiency: Reduces multiple pieces of equipment, hence reducing the available space on the electrical panels.

• Versatility: Applicable in various fields ranging from residential to commercial places or industries.

• Energy Savings: Saves on power wastage because there is a switch to cut off any circuit with a problem.

• Reliability: Gives a steady performance, especially when tested under conditions of high stress.

How to Select the Right RCBO?

Choosing the right RCBO involves considering factors like:

• Rated Current: It should be aligned with the load pointing to the circuit.

• Sensitivity: Higher sensitivity is needed to capture the slightest of flaws.

• Application Type: Choose one that is appropriate for the intended environment- residential, commercial or industrial.

• Brand and Quality: It is wise to opt for established manufacturers such as Lauritz Knudsen Electrical and Automation.

Electrical installations & Maintenance of RCBO

For the best result, installation and proper maintenance of RCBOs should be ensured by following the tips given below.

• Installation: You should hire a licensed electrician to install the RCBO as recommended by the manufacturer.

• Testing: Push the test button to test the device.

• Replacement: If they get damaged, RCBOs should be replaced as soon as possible.

Also Read - What Is the Difference Between MCB, MCCB, DB, RCB, RCD, RCCB, RCBO, and ELCB Breakers

Conclusion

Nowadays, an RCBO is an irreplaceable element of electrical networks that unites the functions of RCDs and MCBs. Residual current circuit breakers with overcurrent protection are devices used to safeguard homes, business premises, and industrial structures. Currently, there are several brands that manufacture RCBOs, such as Lauritz Knudsen Electrical and Automation, which provides many products to meet the needs of those who use them.
