Understanding Energy Meters: Exploring Types and Operational Mechanisms

Electronic, or energy meters, are the core of the processes that allow you to monitor, manage, and control electricity consumption. There are several types of energy meters and each of them has specialized working mechanisms. From the old electromechanical meters to the modern digital and intelligent meters, know-how on each type is essential for managing electricity and avoiding incorrect billing.

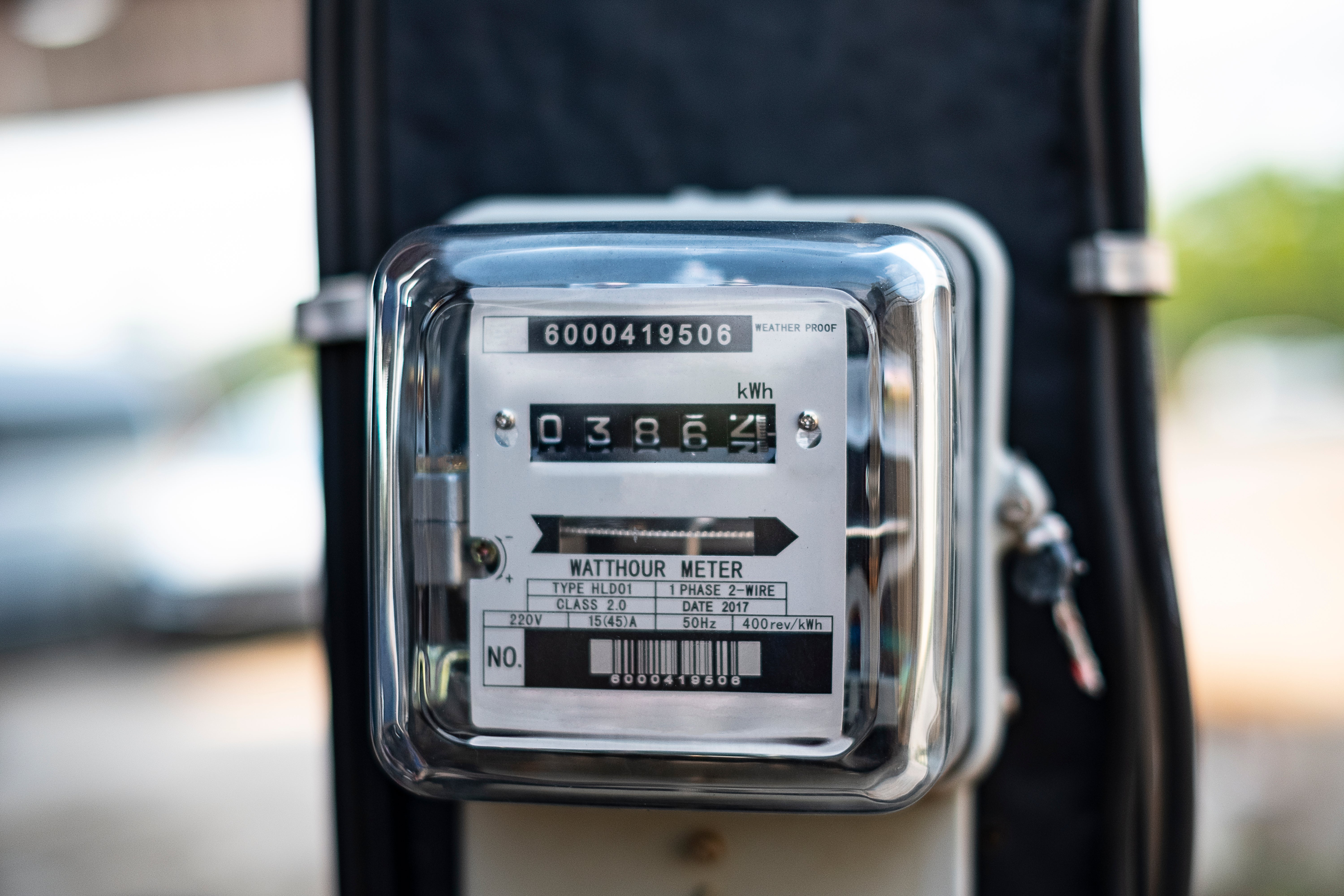

What is an Energy Meter?

The energy meters are used to measure the amount of energy consumed by an electric load and keep track of the total power usage over a set period of time. This device is a must for domestic and industrial AC circuits as it is a cost-effective and valuable power consumption tracer. It comprises four principal components: the Driving System, the Moving System, the Braking System, and the Registering System.

What are the Types of Energy Meters?

Different types of energy meters are as follows:

1. Analog Meters:

These are traditional electromechanical meters. The meter comprises a disc or a needle with an analogue display without connectivity.

2. Digital Energy Meters:

There are other kinds of meters with a clear digital display (LCD or LED) and functionalities like interaction for instant transition.

3. Smart Meters:

These meters can remotely communicate readings to the utility company via a wireless connection.

4. Induction Type Energy Meters:

Induction type energy meters are primarily used in both domestic and industrial AC circuits.

5. Single Phase Energy Meters:

These meters use two wires (for incoming and outgoing power) to obtain and record information about the net energy consumption and record it.

6. 3 Phase Energy Meters:

These meters operate independently of additional devices. Thus increases efficiency over single-phase meters.

7. Prepayment Meters:

They are also known as "pay-as-you-go" meters, requiring users to pay for energy in advance of consumption.

8. Multi-Circuit Energy Meters:

These meters are designed to measure kilowatt-hours (kWh) with an efficient communication output for monitoring multiple circuits.

Benefit of Energy Meter

Electronic energy meters present numerous benefits over their electromechanical counterparts, including:

• Enhanced precision: The digital versions of the meter are reputed for their reliable and exact function since they do not record errors in comparison to electromechanical versions.
• Broad measurement capability: The energy meters have a vast measuring scope, in addition to other functions. This allows them to record low-level energy consumption.
• Anti-tamper design: Fitted with highly advanced anti-tampering technologies, electronic meters prove to be of difficult access compared to traditional meters, as they have features that detect and log any tampering attempt.
• Remote functionalities: The inclusion of communication modules allows for remote monitoring, data collection, and analysis, providing greater convenience to utility providers.
• Additional functionalities: These smart meters could be designed with additional capacities like time-of-use and demand billing, consumption profiling, and performance analysis of power quality, which would, in turn, empower utilities and consumers with more insights.
• Reduced upkeep: Considering the absence of mechanical elements, the electronic tester needs minimal maintenance.

What is a Digital Energy Meter?

A digital energy meter is a modern tool employed to measure and track energy utilization in specific locations, such as residential, commercial, and industrial. In digital meters, as opposed to electromechanical ones, energy metering is done electronically using sophisticated technology, enabling precise accounting of all units of energy. Most of the time, these times feature a display demonstrating real-time energy usage in the form of an LCD or LED screen. Digital energy meters provide more optimal results than traditional mechanisms via features like higher level accuracy, measurement range extension, tamper-proof design, and embedded data transmission systems for remote readings and analytics.

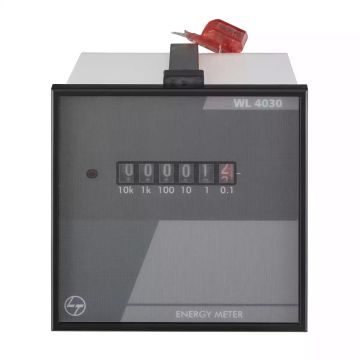

What are Counter Type Energy Meters?

Counter type energy meters, or electromechanical energy meters, represent the traditional appliances utilized to render measurements of the electricity used. This apparatus operates on the principle of electromagnetic induction in determining the rotations of a metal disk. The number of revolutions correlates with the amount of energy consumed. The rotation rate of the disc is frequency-dependent concerning the current through the load, and as a result, the device can register energy over periods with accuracy.

The main elements of a counter-energy meter may be the mobility system, the remaining system (often the rotatory disc), a braking system, and the counting system (the counter). On the other hand, the driving system produces torque, tangent to the circuit's current and voltage and causes the coil to rotate. The brake governs the overall rotation speed to regulate its speed correspondingly with the total efficiency. Registering by counting the spins, the machine tallies the rotations to calculate the consumed energy, directing it to a visible mechanical output.

Even though the counter-type meters were gradually replaced by digital and smart meters due to the higher accuracy degree, lower maintenance costs, and the list of various features, they are still found in several setups, most notably where the technology of digital metering was not fully embraced.

Conclusion

The history of the energy meter has undergone some essential changes, from the simple electromechanical model to the smart meter that can be considered today as an advanced form of energy management. The knowledge of different meter types (and how they operate) makes it possible for utilities, consumers, and other stakeholders to be sure about more accurate billing, better conservation of energy, and more efficiency in resource use.
