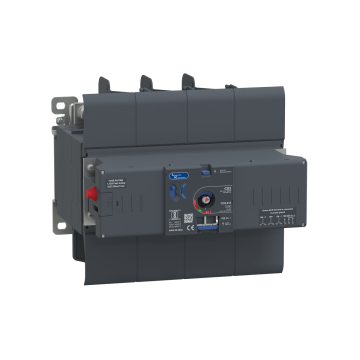

C-Line Enclosed Automatic Transfer Switch Fr3 315A 4P 415V AC

In stock
SKU
CK90165BSOO
Regular Price ₹117,200.00 Special Price ₹96,807.20
17% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
C-Line Enclosed Automatic Transfer Switch Fr3 315A 4P 415V AC

HSN Code - 85371000

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • Changeover Switch is electrical switchgear which switches a load between two power sources.
  • Available in variety of options such as Manual open execution, Manual SS enclosure, Motorised & Enclosed ATS, C-line Changeover is one stop solution for all your power transfer needs.
  • Loaded with safety features such as Terminal Shrouds, Source Separator & Phase Barriers
  • Patented dual-dead center interlocking mechanism
  • Staggered temirnation for ease of termination/inspection
Technical Specifications
  • Rated Operational Current (A)
    315
  • Conformance to Standards
    IS/IEC 60947-3, EN 60947-3 IS/IEC 60947-6-1, EN 60947-6-1
  • Utilization Category
    AC-23A, AC-32B
  • Rated operational voltage (Ue)
    415V
  • Operating Frequency(Hz)
    50/60
  • Mechanical Life (No. of operating cycles)
    16000
  • Rated Insulation Voltage Ui (V)
    1000
  • Short Time Withstand for 1sec (kA)
    18
  • Rated Operational Power (kW)
    160
  • Rated Breaking Capacity@AC-23A (A)
    2520
  • Rated Making Capacity@AC-23A (A)
    3150
  • Version
    ATS, SS enclosure
  • No. of Poles
    4P
  • Electrical life (Operating Cylces)
    2000
  • Mechanical Life (Operating Cycles)
    16000
  • Maximum Al termination (sq.mm)
    240
  • Standard Accessories
    Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft
  • Pollution Degree
    3
  • Rated impulse withstand voltage (Uimp)
    12
  • Discount Percentage
    Between 0-10 %
