The transfer switches play a very important role in providing a backup power supply during power blackouts. These offer a convenient and safe way to harness power from your generator, much better than having to plug and play your devices.

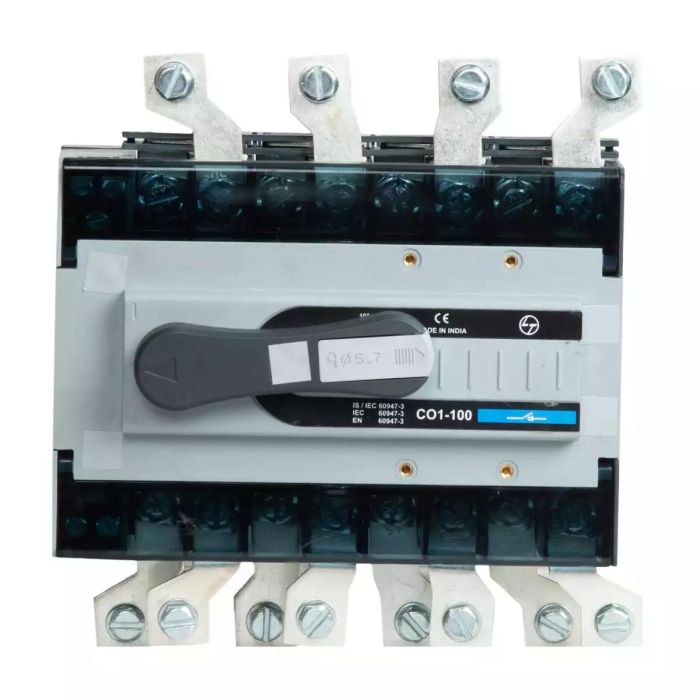

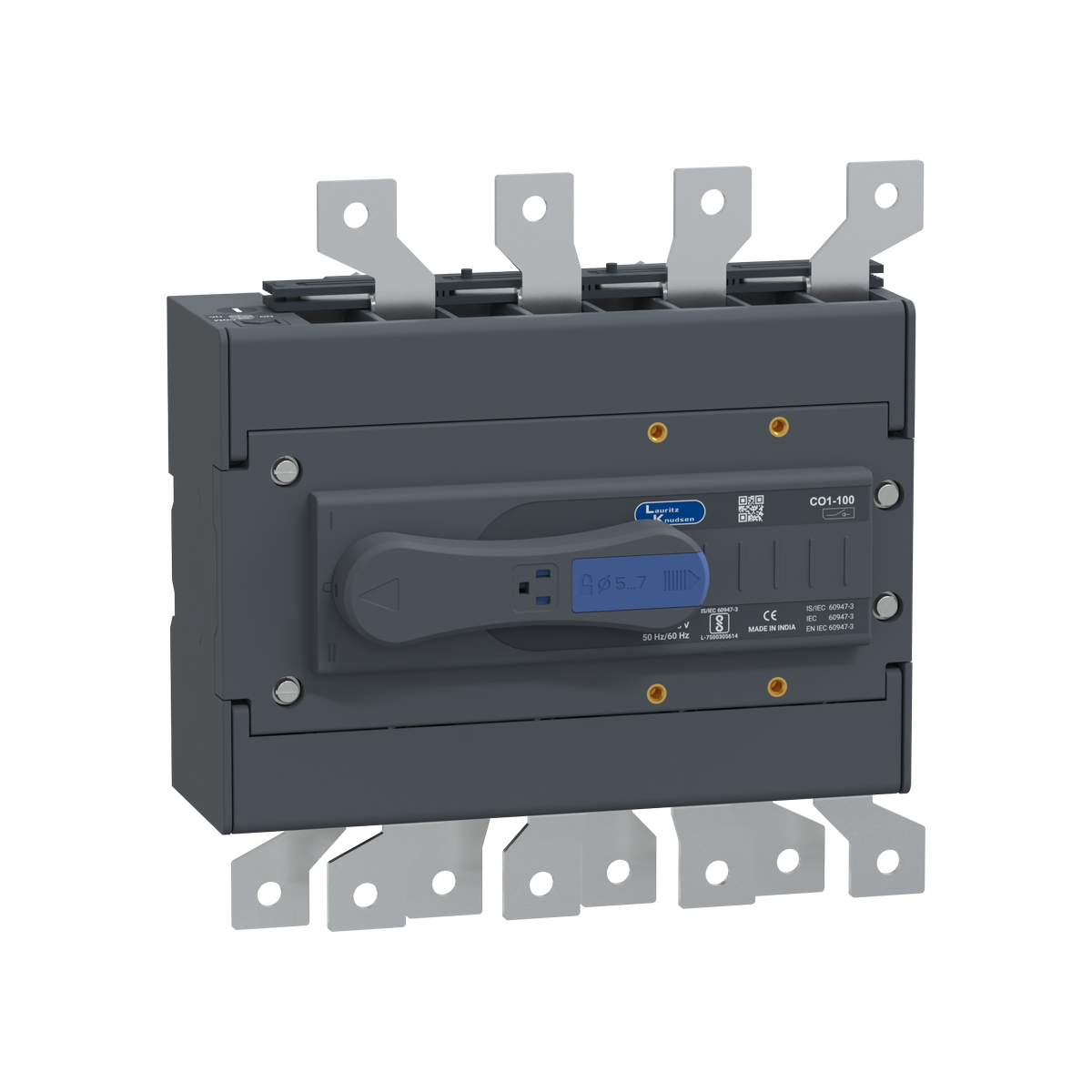

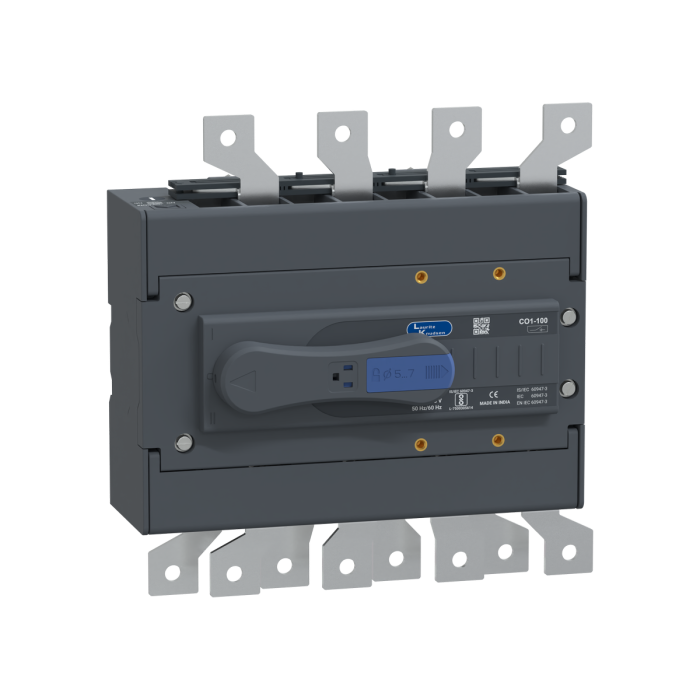

C-Line Manual Changeover Switch FR1 100A 4P 415V AC Open Execution Direct Handle
CO11000OOOD
₹7,360.00
₹4,689.79
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
CO11000OOOD
C-Line Manual Changeover Switch FR1 100A 4P 415V AC Open Execution Direct Handle
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
C-Line Manual Changeover Switch FR1 100A 4P 415V AC Open Execution Direct Handle
₹7,360.00
₹4,689.79
Description
- Changeover Switch is electrical switchgear which switches a load between two power sources.
- Available in variety of options such as Manual open execution, Manual SS enclosure, Motorised & Enclosed ATS, C-line Changeover is one stop solution for all your power transfer needs.
- Loaded with safety features such as Terminal Shrouds, Source Separator & Phase Barriers
- Patented dual-dead center interlocking mechanism
- Staggered temirnation for ease of termination/inspection
Product Details
| Rated Operational Current (A) | 100 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 20000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 5 |
| Rated Operational Power (kW) | 50 |
| Rated Breaking Capacity@AC-23A (A) | 800 |
| Rated Making Capacity@AC-23A (A) | 1000 |
| Version | Manual, Open Execution |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 3000 |
| Mechanical Life (Operating Cycles) | 20000 |
| Maximum Al termination (sq.mm) | 50 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator,Auxiliary Contacts, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 8 |
| Discount Percentage | Between 0-10 % |
