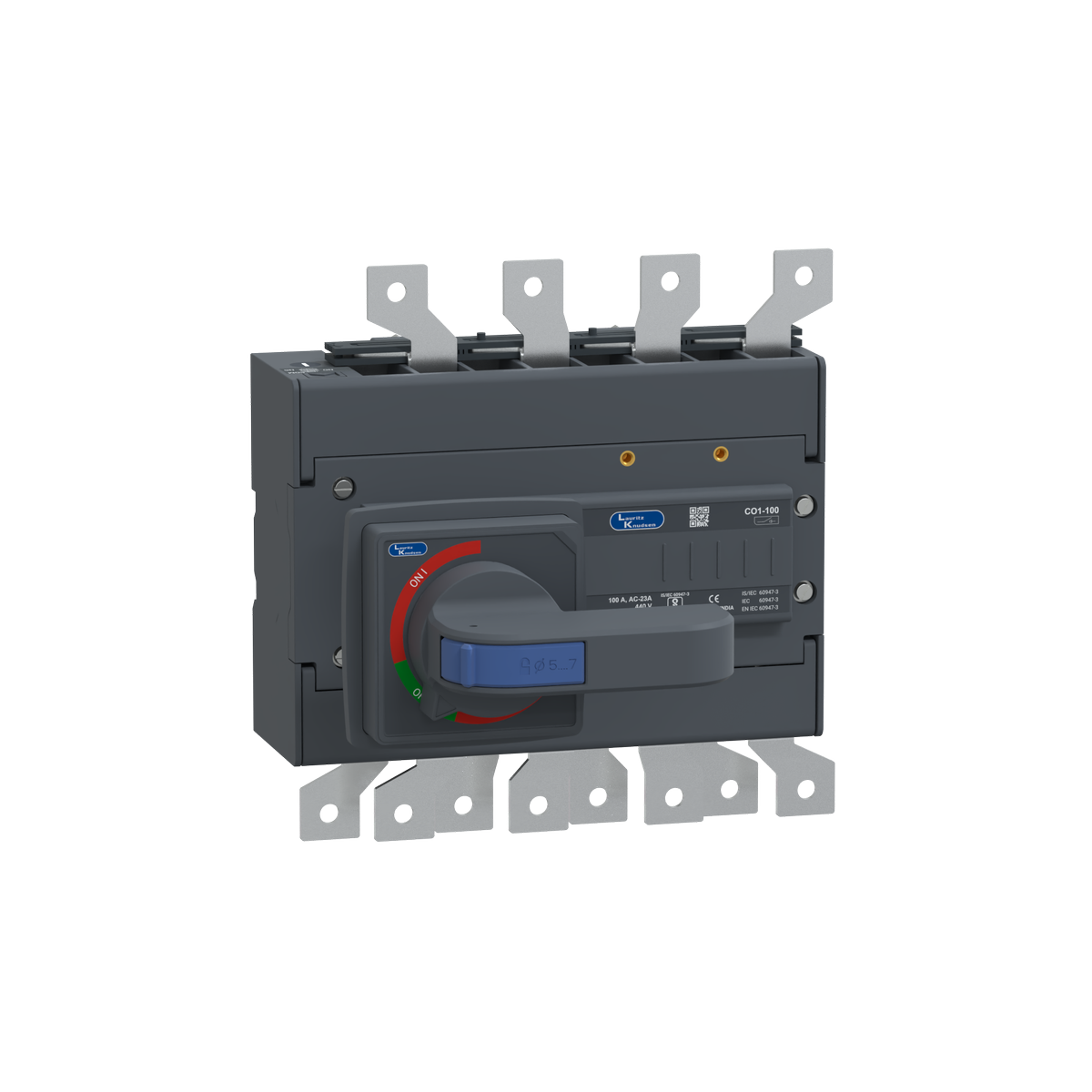

C-Line Manual Changeover Switch FR1 100A 4P 415V AC Open Execution Extended Handle

CO11000OOOO
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • Changeover Switch is electrical switchgear which switches a load between two power sources.
  • Available in variety of options such as Manual open execution, Manual SS enclosure, Motorised & Enclosed ATS, C-line Changeover is one stop solution for all your power transfer needs.
  • Loaded with safety features such as Terminal Shrouds, Source Separator & Phase Barriers
  • Patented dual-dead center interlocking mechanism
  • Staggered temirnation for ease of termination/inspection

Product Details

Rated Operational Current (A) 100
Conformance to Standards IS/IEC 60947-3, EN 60947-3
Utilization Category AC-23A
Rated operational voltage (Ue) 415V
Operating Frequency(Hz) 50/60
Mechanical Life (No. of operating cycles) 20000
Rated Insulation Voltage Ui (V) 1000
Short Time Withstand for 1sec (kA) 5
Rated Operational Power (kW) 50
Rated Breaking Capacity@AC-23A (A) 800
Rated Making Capacity@AC-23A (A) 1000
Version Manual, Open Execution
No. of Poles 4P
Electrical life (Operating Cylces) 3000
Mechanical Life (Operating Cycles) 20000
Maximum Al termination (sq.mm) 50
Mounting positions All Orientations
Standard Accessories Terminal Shroud,Phase Barriers,Source Separator,Auxiliary Contacts, Extended handle with shaft
Pollution Degree 3
Rated impulse withstand voltage (Uimp) 8
Discount Percentage Between 0-10 %

Related Posts (2)

A comprehensive guide to changeover switches

A comprehensive guide to changeover switches

An electrical switch that allows switching of load from one electrical source to another and vice versa is called a changeover switch. Changeover switches can be either manual or automatic. For example, in case of power failures, a generator changeover switch is used for quickly switching from grid power to generator power.
What is a Changeover Switch and Its Function? | Lauritz Knudsen Smartshop

What is a Changeover Switch and Its Function? | Lauritz Knudsen Smartshop

Within the domain of electrical systems, the changeover switch assumes a crucial role in facilitating smooth transitions between power sources. Its significance extends across diverse environments, encompassing residential, commercial, and industrial settings. An adept comprehension of the functions, classifications, and applications of changeover switches is paramount for proficient power management. This all-encompassing guide delves into the nuances of changeover switches, elucidating their operational mechanisms, diverse types, varied applications, and the merits and demerits linked to these adaptable electrical components.

Seller Information

Documents

Extended Warranty

Reviews

Write Your Own Review
This is a required field
You're reviewing: C-Line Manual Changeover Switch FR1 100A 4P 415V AC Open Execution Extended Handle
* Required Field
loader
Loading...

check-circle You submitted your review for moderation.

Customer Who Purchased This Product Also Bought

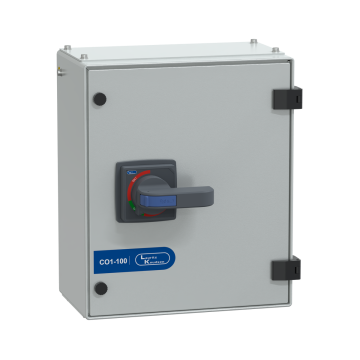

C-Line Manual Changeover Switch FR1 100A 4P 415V AC SS Enclosure Extended Handle
CO11000OSOO
Price starting from
₹11,450.00
₹7,295.94

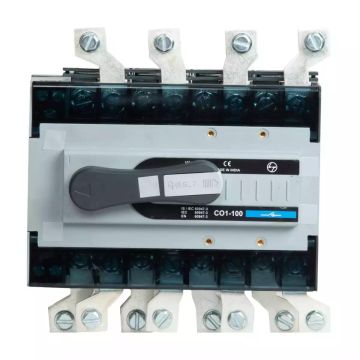

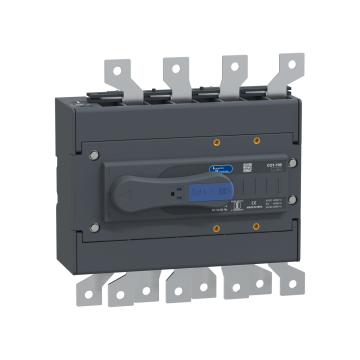

C-Line Manual Changeover Switch FR1 100A 4P 415V AC Open Execution Direct Handle
