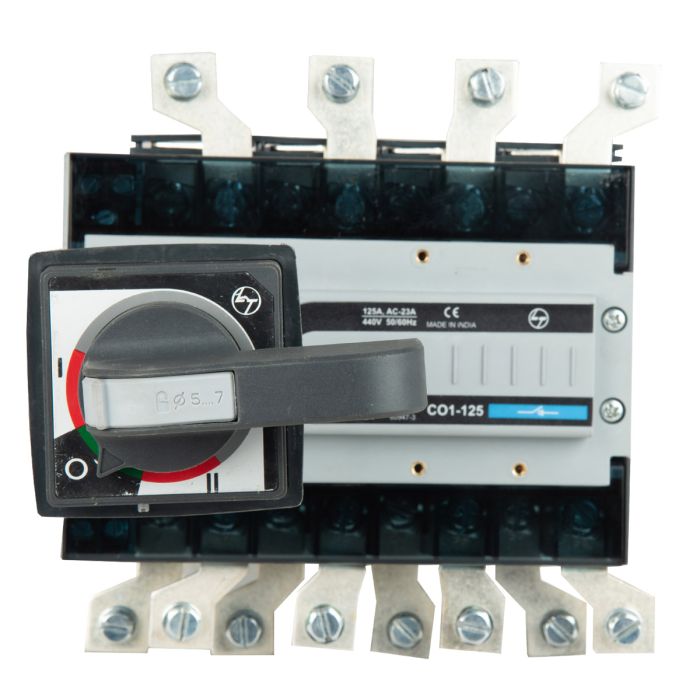

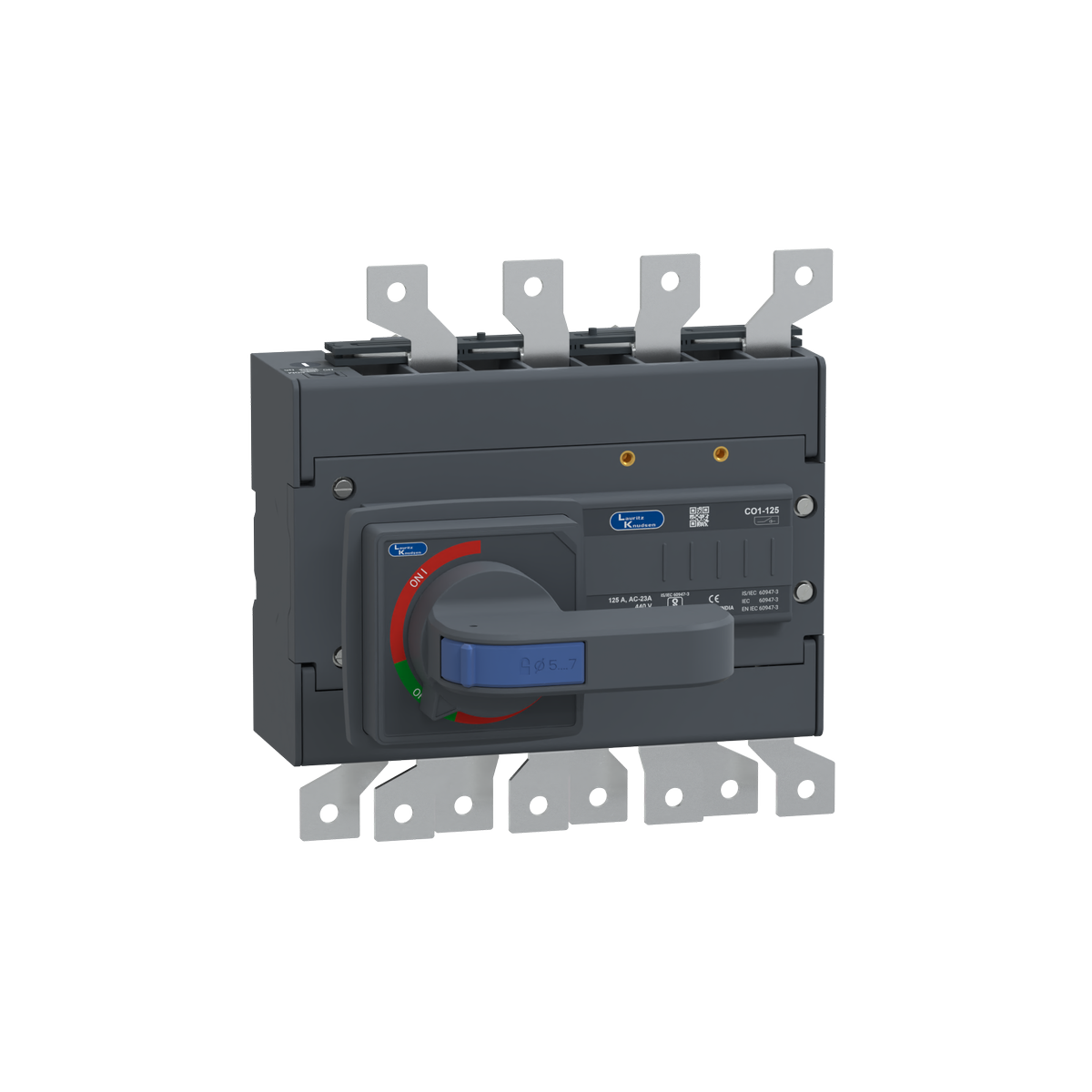

Lauritz Knudsen Manual Changeover Switch, C-Line, 125A, 415V AC | Frame 1 | 4 Pole | Open Execution Extended Handle| Load‑Handling Capability
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen Manual Changeover Switch, C-Line, 125A, 415V AC | Frame 1 | 4 Pole | Open Execution Extended Handle| Load‑Handling Capability
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen C-Line Manual Changeover Switch FR1 125A 4P 415V AC is a heavy-duty switching device engineered for safe & efficient transfer of electrical load between two power sources, such as mains supply & generator backup. With an open execution design & extended handle operation, it provides easy accessibility, clear visibility, & precise manual control.
Featuring a 4-pole (4P) configuration, this switch ensures complete isolation of all conductors including neutral, making it ideal for critical installations where safety & uninterrupted power supply are essential. Built under the reliable C-Line FR1 series, this model delivers robust performance & long service life in demanding industrial environments.
Purpose & Function
This manual changeover switch is designed for safe & controlled power management:
• Transfers electrical load between mains & generator
• Provides complete circuit isolation during switching
• Enables easy manual operation via extended external handle
• Ensures uninterrupted power supply during outages
• Enhances system safety & operational reliability
Electrical Configuration
• Type: Manual Changeover Switch
• Series: C-Line FR1
• Current rating: 125A
• Rated voltage: 415V AC
• Poles: 4 Pole (4P)
• Execution: Open type
• Operation: Extended handle
• Function: Power source switching & isolation
Construction & Design
The switch is built for heavy-duty & reliable performance:
• Rugged & industrial-grade construction
• Open execution for easy inspection & maintenance
• Extended handle for convenient operation from outside panels
• Compact & space-efficient design
• High-quality contacts for consistent switching performance
Safety & Protection
• Ensures safe transition between power sources
• 4-pole isolation provides maximum safety
• Reduces risk of electrical faults & short circuits
• Supports safe maintenance & operation
• Protects connected equipment & electrical systems
Mounting & Installation
• Suitable for panel or enclosure mounting
• Extended handle allows external & easy accessibility
• Quick & simple installation process
• Compatible with standard industrial electrical systems
• Supports clean & organized wiring layout
Application Domains
• Industrial power distribution systems
• Commercial buildings & infrastructure
• Generator backup systems
• Electrical control panels & switchboards
• Manufacturing & processing plants
• Large-scale power management systems
Key Features
• 125A current rating for high-load applications
• 415V AC operation for three phase systems
• 4-pole configuration for complete circuit isolation
• Open execution for easy maintenance
• Extended handle for convenient external operation
• Durable & industrial-grade design
Applications
• Generator changeover panels
• Industrial distribution boards
• Commercial electrical installations
• Backup power systems
• Control panels & switchgear assemblies
FAQs
1. What is a manual changeover switch?
Ans: A manual changeover switch allows safe transfer of power between two sources such as mains & generator.
2. What does 4P mean?
Ans: 4P (four-pole) means all conductors including neutral are isolated, ensuring maximum safety.
3. What is an extended handle?
Ans: An extended handle allows the switch to be operated from outside the panel or enclosure for easier access.
4. What is open execution?
Ans: Open execution means the switch has no enclosure, allowing easy inspection & maintenance.
5. Where is this switch typically used?
Ans: It is widely used in industrial plants, commercial buildings, & generator backup systems.
6. Why is full isolation important?
Ans: Full isolation ensures complete disconnection of the circuit, improving safety during switching & maintenance.
7. Is this suitable for industrial use?
Ans: Yes, it is designed for heavy-duty industrial & commercial applications requiring reliable power switching.
Overview
| Rated Operational Current (A) | 125 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 20000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 5 |
| Rated Operational Power (kW) | 65 |
| Rated Breaking Capacity@AC-23A (A) | 1000 |
| Rated Making Capacity@AC-23A (A) | 1250 |
| Version | Manual, Open Execution |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 2000 |
| Mechanical Life (Operating Cycles) | 20000 |
| Maximum Al termination (sq.mm) | 70 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator,Auxiliary Contacts, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 8 |
| Discount Percentage | Between 0-10 % |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
