Lauritz Knudsen Manual Changeover Switch, C-Line, 125A, 415V AC | Frame 1 | 4 Pole | SS Enclosure Extended Handle| Load‑Handling Capability
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product

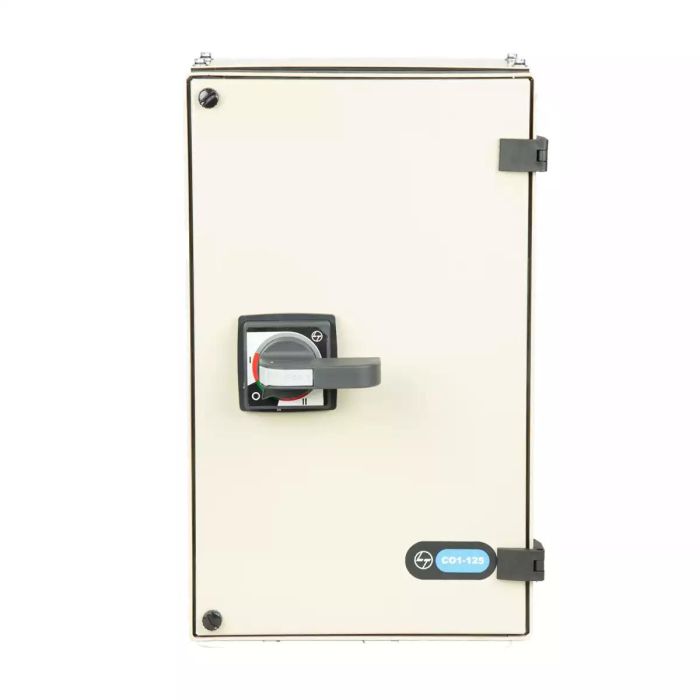

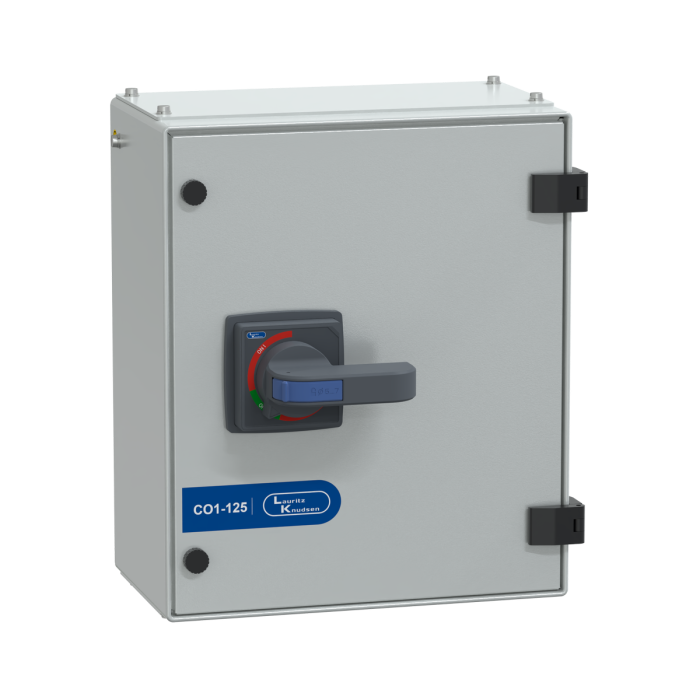

The Lauritz Knudsen C-Line Manual Changeover Switch FR1 125A 4P 415V AC with SS (stainless steel) enclosure is a durable & high-performance switching solution designed for safe transfer of electrical load between two power sources such as mains supply & generator backup.
This model features a robust stainless steel enclosure that protects internal components from dust, moisture, & harsh environmental conditions. The extended handle mechanism allows safe & easy external operation without opening the enclosure, enhancing both safety & convenience.
With a 4-pole (4P) configuration, the switch ensures complete isolation of all conductors including neutral, making it suitable for applications where safety, protection, & continuous power availability are critical.
Purpose & Function
This enclosed manual changeover switch ensures efficient & safe power switching:
• Transfers load between mains & generator supply
• Provides full circuit isolation during switching
• Enables external manual operation via extended handle
• Ensures uninterrupted power supply during outages
• Enhances system safety with enclosed design
Electrical Configuration
• Type: Manual Changeover Switch
• Series: C-Line FR1
• Current rating: 125A
• Rated voltage: 415V AC
• Poles: 4 Pole (4P)
• Enclosure: Stainless Steel (SS)
• Operation: Extended handle
• Function: Power source switching & isolation
Construction & Design
Engineered for durability & protection:
• Stainless steel enclosure for corrosion resistance & durability
• Strong & rugged construction for long service life
• Extended handle for convenient external operation
• Compact design for efficient installation
• High-quality contacts for reliable switching performance
Safety & Protection
• SS enclosure protects against dust, moisture, & accidental contact
• 4-pole design ensures complete electrical isolation
• Reduces risk of electrical faults & operational hazards
• Improves operator safety during switching
• Ensures dependable performance in harsh environments
Mounting & Installation
• Suitable for wall or panel mounting
• Enclosed design allows use in exposed or semi-outdoor environments
• Extended handle enables operation without opening the enclosure
• Compatible with standard industrial electrical systems
• Supports secure & organized internal wiring
Application Domains
• Industrial power distribution systems
• Commercial buildings & infrastructure
• Generator backup systems
• Outdoor & semi-outdoor installations
• Electrical panels in harsh environments
• Manufacturing & processing units
Key Features
• 125A current rating for medium to high-load applications
• 415V AC operation for three phase systems
• 4-pole configuration for complete isolation
• Stainless steel enclosure for enhanced protection
• Extended handle for safe external operation
• Durable & industrial-grade construction
Applications
• Generator changeover panels
• Industrial distribution boards
• Commercial electrical installations
• Outdoor electrical setups
• Backup power management systems
FAQs
1. What is the benefit of an SS enclosure?
Ans: It protects the switch from environmental factors like dust, moisture, & corrosion, ensuring longer service life.
2. What does 4P mean?
Ans: 4P (four-pole) ensures all conductors including neutral are isolated for maximum safety.
3. What is the purpose of the extended handle?
Ans: It allows operation of the switch from outside the enclosure without opening it.
4. Can this be used in outdoor installations?
Ans: Yes, the enclosed design makes it suitable for semi-outdoor & harsh environments.
5. What is a manual changeover switch used for?
Ans: It is used to safely switch between two power sources such as mains & generator.
6. Why is complete isolation important?
Ans: It ensures safety during maintenance & switching by fully disconnecting the circuit.
7. Is this suitable for industrial use?
Ans: Yes, it is ideal for industrial & commercial applications requiring safe & reliable power switching.
Overview
| Rated Operational Current (A) | 125 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 20000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 5 |
| Rated Operational Power (kW) | 65 |
| Rated Breaking Capacity@AC-23A (A) | 1000 |
| Rated Making Capacity@AC-23A (A) | 1250 |
| Version | Manual, SS enclosure |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 2000 |
| Mechanical Life (Operating Cycles) | 20000 |
| Maximum Al termination (sq.mm) | 70 |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 8 |
| Discount Percentage | Between 0-10 % |
