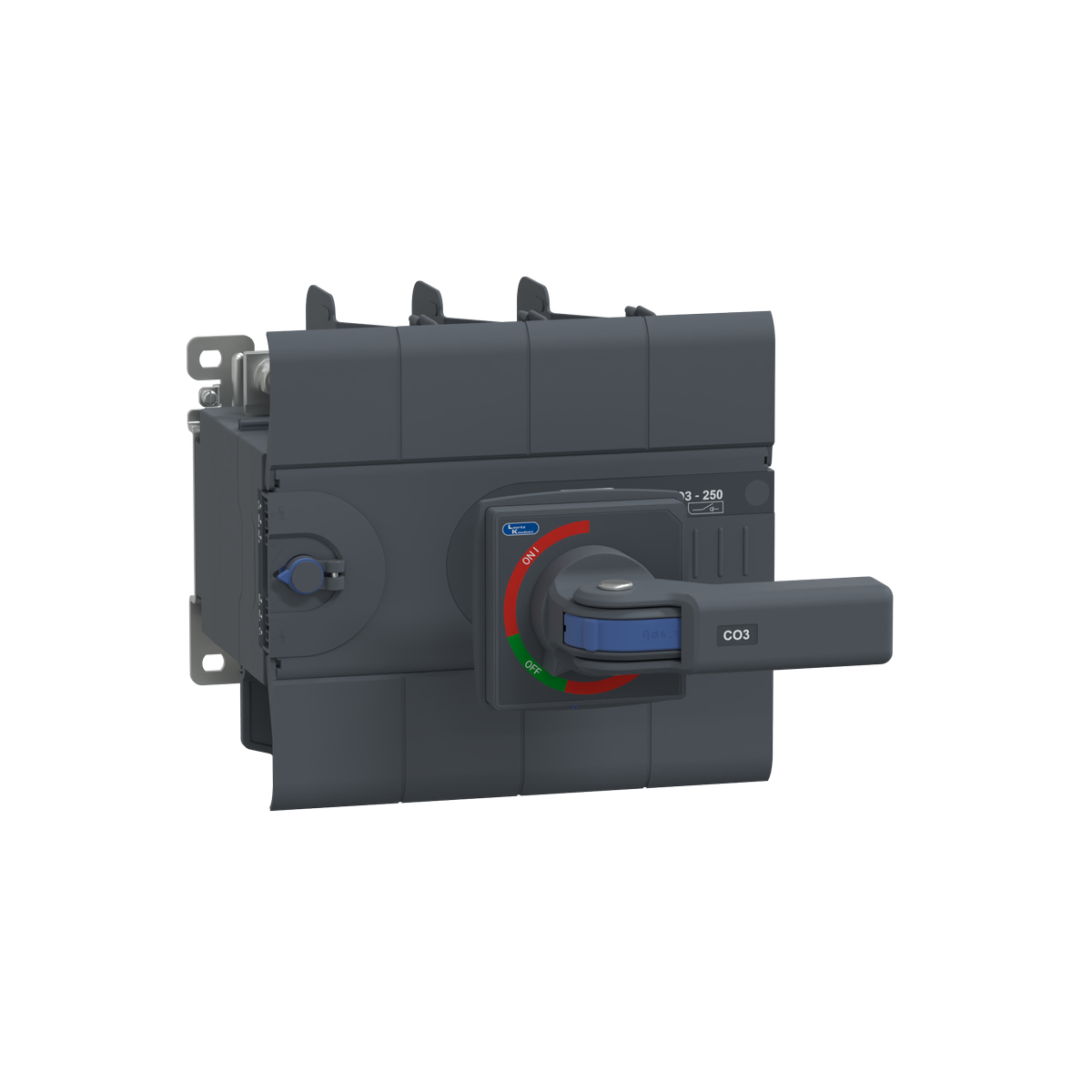

Lauritz Knudsen Manual Changeover Switch, C-Line, 250A, 415V AC | Frame 3 | 4 Pole | Open Execution Extended Handle| Load‑Handling Capability
SKU :
CO32500OOOO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CO32500OOOO
Lauritz Knudsen Manual Changeover Switch, C-Line, 250A, 415V AC | Frame 3 | 4 Pole | Open Execution Extended Handle| Load‑Handling Capability
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹21,890.00
₹20,664.16
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Lauritz Knudsen Manual Changeover Switch, C-Line, 250A, 415V AC | Frame 3 | 4 Pole | Open Execution Extended Handle| Load‑Handling Capability
₹21,890.00
₹20,664.16
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen Changeover Switch is electrical switchgear which switches a load between two power sources.
- Available in variety of options such as Manual open execution, Manual SS enclosure, Motorised & Enclosed ATS, C-line Changeover is one stop solution for all your power transfer needs.
- Loaded with safety features such as Terminal Shrouds, Source Separator & Phase Barriers
- Patented dual-dead center interlocking mechanism
- Staggered temirnation for ease of termination/inspection
Overview
| Rated Operational Current (A) | 250 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 16000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 16 |
| Rated Operational Power (kW) | 132 |
| Rated Breaking Capacity@AC-23A (A) | 2000 |
| Rated Making Capacity@AC-23A (A) | 2500 |
| Version | Manual, Open Execution |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 2000 |
| Mechanical Life (Operating Cycles) | 16000 |
| Maximum Al termination (sq.mm) | 185 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator,Auxiliary Contacts, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 12 |
| Discount Percentage | Between 0-10 % |
