Lauritz Knudsen Manual Changeover Switch, C-Line, 800A, 415V AC | Frame 5 | 4 Pole | SS Enclosure Extended Handle| Load‑Handling Capability
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product

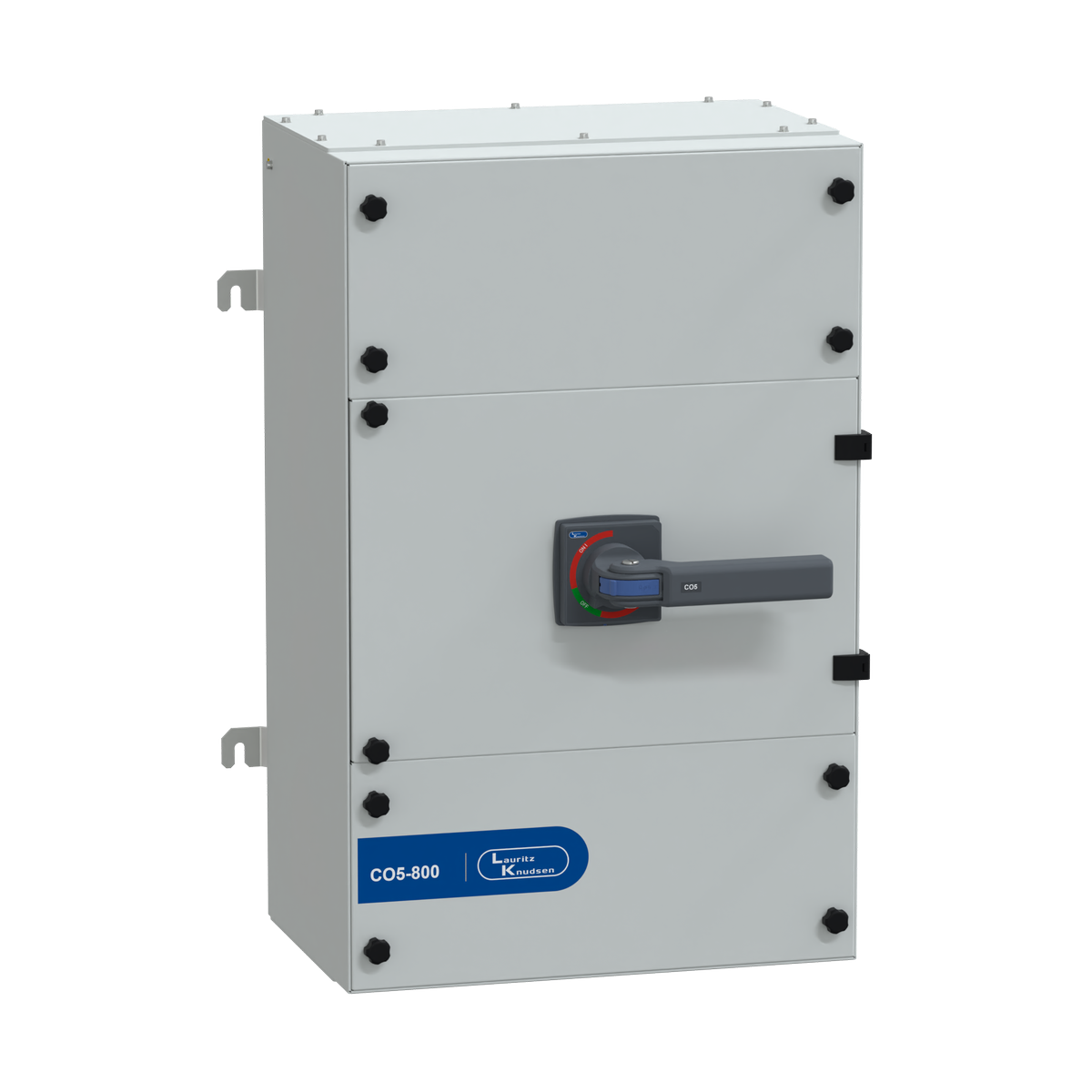

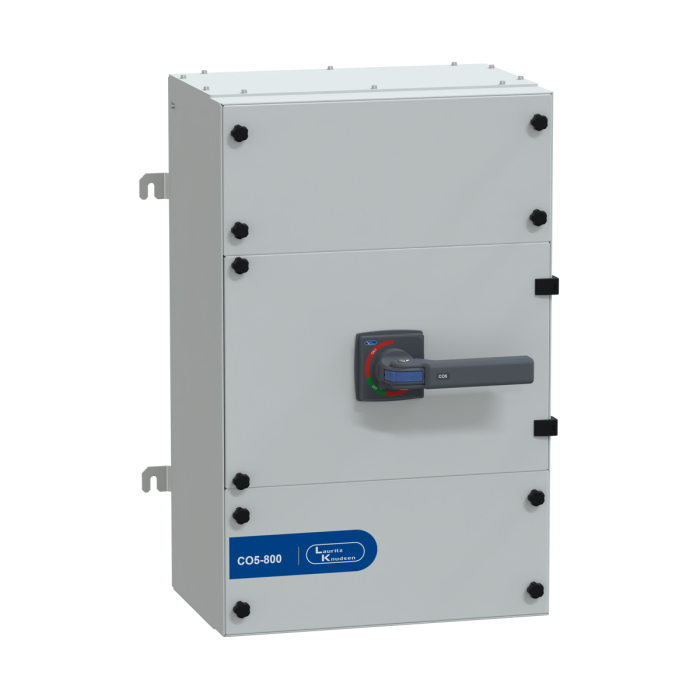

The Lauritz Knudsen C-Line Manual Changeover Switch FR5 800A 4P 415V AC with SS (stainless steel) enclosure is an ultra heavy-duty & high-capacity switching solution engineered for safe & efficient transfer of electrical load between two power sources such as mains supply & generator backup.
This model is equipped with a robust stainless steel enclosure that offers superior protection against dust, moisture, corrosion, & harsh environmental conditions. The extended handle allows smooth & safe external operation without opening the enclosure, ensuring maximum operator safety & ease of use.
Belonging to the FR5 series, it is designed for extreme industrial environments & critical infrastructure where reliable performance under very high loads is essential. The 4-pole (4P) configuration ensures complete isolation of all conductors including neutral, providing maximum safety, efficiency, & operational reliability.
Purpose & Function
This enclosed manual changeover switch ensures safe & reliable power management:
• Transfers load between mains & generator supply
• Provides complete electrical isolation during switching
• Enables safe external operation using an extended handle
• Ensures uninterrupted power during supply transitions
• Enhances system safety with enclosed design
Electrical Configuration
• Type: Manual Changeover Switch
• Series: C-Line FR5
• Current rating: 800A
• Rated voltage: 415V AC
• Poles: 4 Pole (4P)
• Enclosure: Stainless Steel (SS)
• Operation: Extended handle
• Function: Power source switching & isolation
Construction & Design
The switch is built for extreme durability & high-performance applications:
• Stainless steel enclosure for corrosion resistance & environmental protection
• Ultra heavy-duty industrial-grade construction
• Extended handle for safe & convenient external operation
• Designed for very high current handling capacity
• High-quality contact system for reliable & stable switching performance
Safety & Protection
• SS enclosure protects against dust, moisture, & mechanical damage
• 4-pole configuration ensures full circuit isolation including neutral
• Reduces risk of electrical faults & accidental contact
• Improves operator safety during operation
• Ensures consistent performance in harsh & demanding environments
Mounting & Installation
• Suitable for wall or panel mounting
• Enclosed design allows installation in outdoor or semi-outdoor environments
• Extended handle enables operation without opening enclosure
• Compatible with standard heavy-duty industrial electrical systems
• Supports secure & organized internal wiring
Application Domains
• Heavy industrial power distribution systems
• Large infrastructure & utility projects
• Generator backup systems for critical operations
• Electrical substations & main distribution panels
• Manufacturing & process industries
• Ultra high-load power management systems
Key Features
• 800A current rating for ultra high-capacity applications
• 415V AC operation for three phase systems
• 4-pole configuration for complete circuit isolation
• Stainless steel enclosure for superior protection & durability
• Extended handle for safe external operation
• Ultra heavy-duty & industrial-grade construction
Applications
• Generator changeover panels
• Industrial distribution boards
• Infrastructure electrical systems
• Backup & emergency power systems
• High-capacity control panels & switchgear
FAQs
1. What is the purpose of this changeover switch?
Ans: It is used to safely transfer electrical load between two sources such as mains supply & generator backup.
2. What does 4P mean?
Ans: 4P (four-pole) means all conductors including neutral are fully isolated, ensuring maximum safety.
3. Why is a stainless steel enclosure important?
Ans: It protects the switch from dust, moisture, corrosion, & environmental damage, increasing durability & reliability.
4. What is the advantage of the extended handle?
Ans: It allows the switch to be operated externally without opening the enclosure, improving safety & convenience.
5. Can this switch be used outdoors?
Ans: Yes, the SS enclosed design makes it suitable for outdoor & semi-outdoor installations.
6. Is this suitable for heavy industrial applications?
Ans: Yes, it is designed for ultra high-load industrial & infrastructure applications.
7. Why is full isolation important?
Ans: Full isolation ensures safe switching & maintenance by completely disconnecting the electrical circuit.
Overview
| Rated Operational Current (A) | 800 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 10000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 50 |
| Rated Operational Power (kW) | 400 |
| Rated Breaking Capacity@AC-23A (A) | 6400 |
| Rated Making Capacity@AC-23A (A) | 8000 |
| Version | Manual, SS enclosure |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 1000 |
| Mechanical Life (Operating Cycles) | 10000 |
| Maximum Al termination (sq.mm) | 2*400 |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 12 |
| Discount Percentage | Between 0-10 % |
