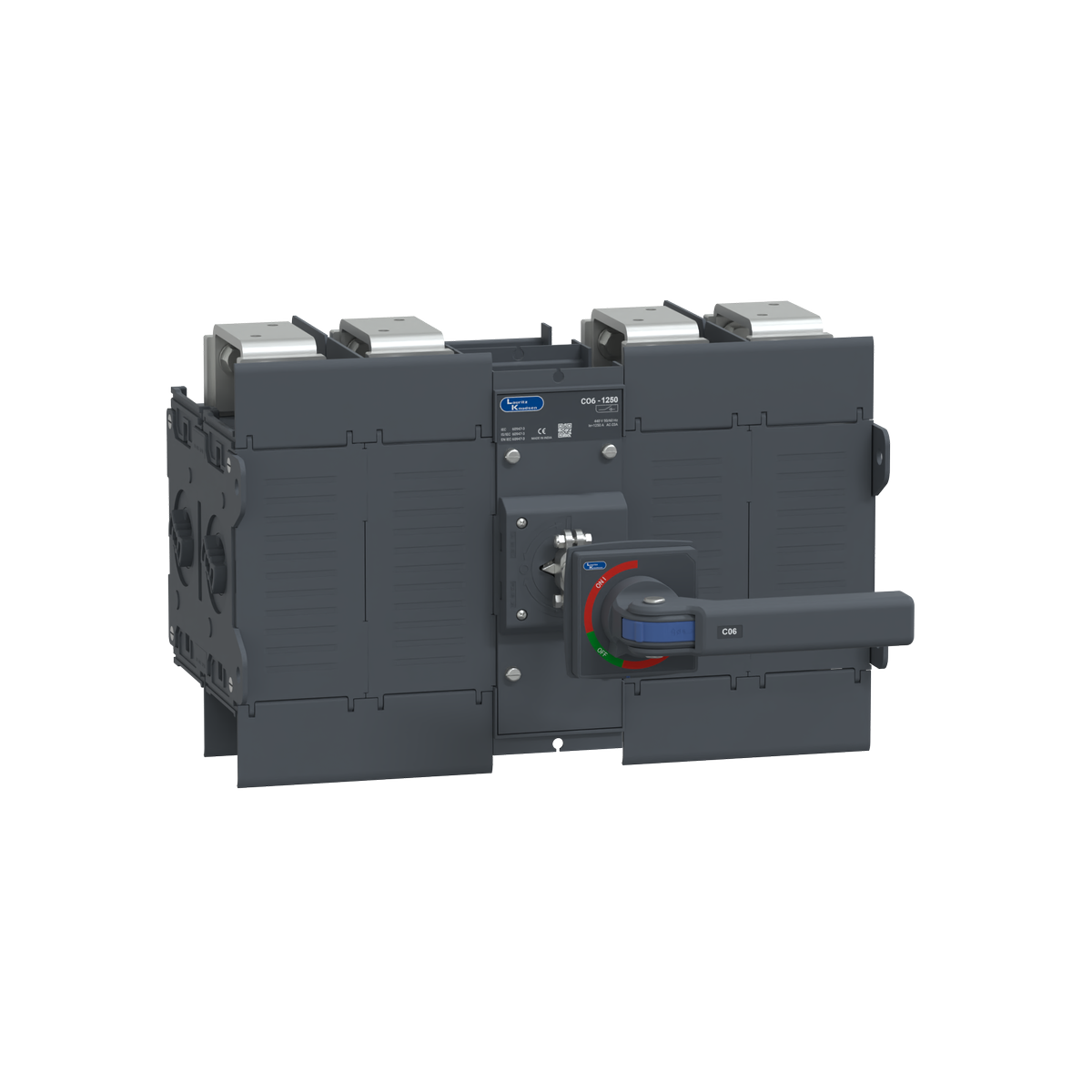

Lauritz Knudsen Manual Changeover Switch, C-Line, 1250A, 415V AC | Frame 6 | 4 Pole | Open Execution Extended Handle Centre Operation| Load‑Handling Capability
₹133,770.00
₹126,278.88
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen Changeover Switch is electrical switchgear which switches a load between two power sources.
- Available in variety of options such as Manual open execution, Manual SS enclosure, Motorised & Enclosed ATS, C-line Changeover is one stop solution for all your power transfer needs.
- Loaded with safety features such as Terminal Shrouds, Source Separator & Phase Barriers
- Patented dual-dead center interlocking mechanism
- Staggered temirnation for ease of termination/inspection
Overview
| Rated Operational Current (A) | 1250 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 10000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 50 |
| Rated Operational Power (kW) | 710 |
| Rated Breaking Capacity@AC-23A (A) | 10000 |
| Rated Making Capacity@AC-23A (A) | 12500 |
| Version | Manual, Open Execution |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 1000 |
| Mechanical Life (Operating Cycles) | 10000 |
| Maximum Al termination (sq.mm) | 2*12*63 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator,Auxiliary Contacts, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 12 |
| Discount Percentage | Between 0-10 % |
