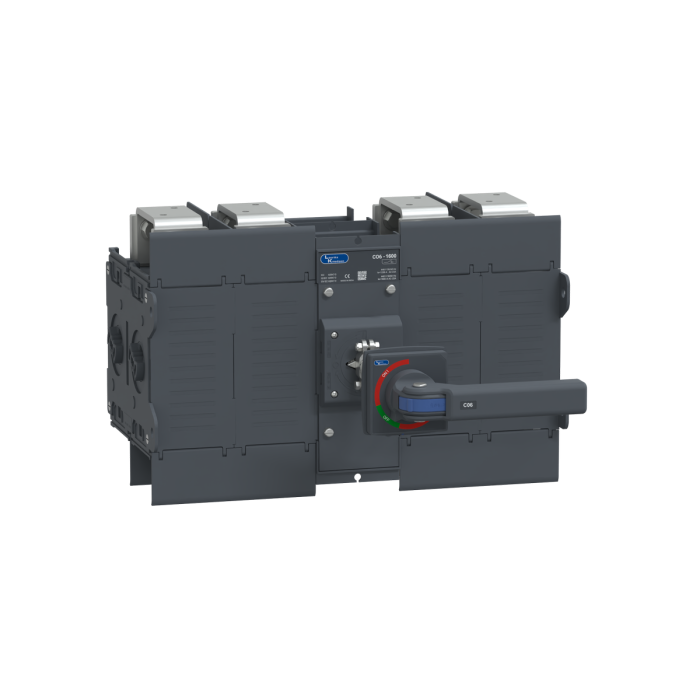

C-Line Manual Changeover Switch FR6 1600A 4P 415V AC Open Execution Extended Handle Center Operation

In stock
SKU
CO61600OOOO
Regular Price ₹149,700.00 Special Price ₹123,652.20
17% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
C-Line Manual Changeover Switch FR6 1600A 4P 415V AC Open Execution Extended Handle Center Operation

HSN Code - 85365010

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • Changeover Switch is electrical switchgear which switches a load between two power sources.
  • Available in variety of options such as Manual open execution, Manual SS enclosure, Motorised & Enclosed ATS, C-line Changeover is one stop solution for all your power transfer needs.
  • Loaded with safety features such as Terminal Shrouds, Source Separator & Phase Barriers
  • Patented dual-dead center interlocking mechanism
  • Staggered temirnation for ease of termination/inspection
Technical Specifications
  • Rated Operational Current (A)
    1600
  • Conformance to Standards
    IS/IEC 60947-3, EN 60947-3
  • Utilization Category
    AC-22A
  • Rated operational voltage (Ue)
    415V
  • Operating Frequency(Hz)
    50/60
  • Mechanical Life (No. of operating cycles)
    10000
  • Rated Insulation Voltage Ui (V)
    1000
  • Short Time Withstand for 1sec (kA)
    50
  • Rated Operational Power (kW)
    710
  • Rated Breaking Capacity@AC-23A (A)
    10000
  • Rated Making Capacity@AC-23A (A)
    12500
  • Version
    Manual, Open Execution
  • No. of Poles
    4P
  • Electrical life (Operating Cylces)
    1000
  • Mechanical Life (Operating Cycles)
    10000
  • Maximum Al termination (sq.mm)
    4*8*50
  • Mounting positions
    All Orientations
  • Standard Accessories
    Terminal Shroud,Phase Barriers,Source Separator,Auxiliary Contacts, Extended handle with shaft
  • Pollution Degree
    3
  • Rated impulse withstand voltage (Uimp)
    12
  • Discount Percentage
    Between 0-10 %
