CURRENT CONT. 15-45A,220-415VAC,DEF.TIME
In stock
SKU
17B322AA0
Regular Price
₹2,185.00
Special Price
₹1,804.81
17% Off
( Prices are all inclusive of taxes )CURRENT CONT. 15-45A,220-415VAC,DEF.TIME
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY

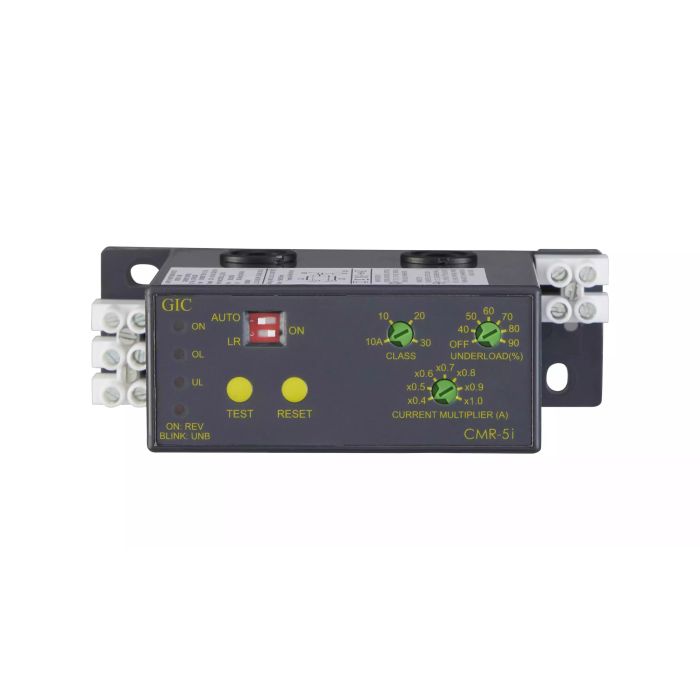

Current monitoring Relay (17B322AA0) is a protective control device which is used to receive input current signals. It monitors the currentsignals and raises an output in case threshold is reached.
Features:
- Protects against Overload, Phase reverse, Phase loss, Phase unbalance faults
- Auto/ Manual reset selection
- Failsafe protection with in built CT upto 45A
- Inverse time model with underload, locked rotor protection and selectable trip class (10A, 10, 20, 30)
- Definite time model with underload and selectable start and trip time
- Designed for Industrial & Agricultural Applications
-
Conformance to IEC standardsIEC-60947-5-1
-
Internationals & Environemnt Compliances ConformanceCE, & RoHS
-
IP rating65
-
no of contacts1
-
Current Range15 - 45A
-
Type of Sysytem (phases)3Ph
-
Type Of MountingDin Mounting
-
TypeDefinite Time Current Monitoring Relay
