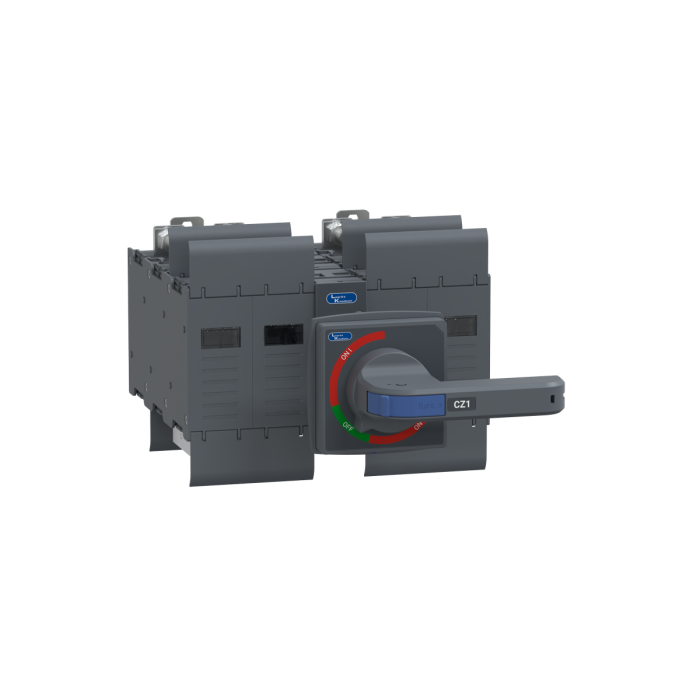

main product photo

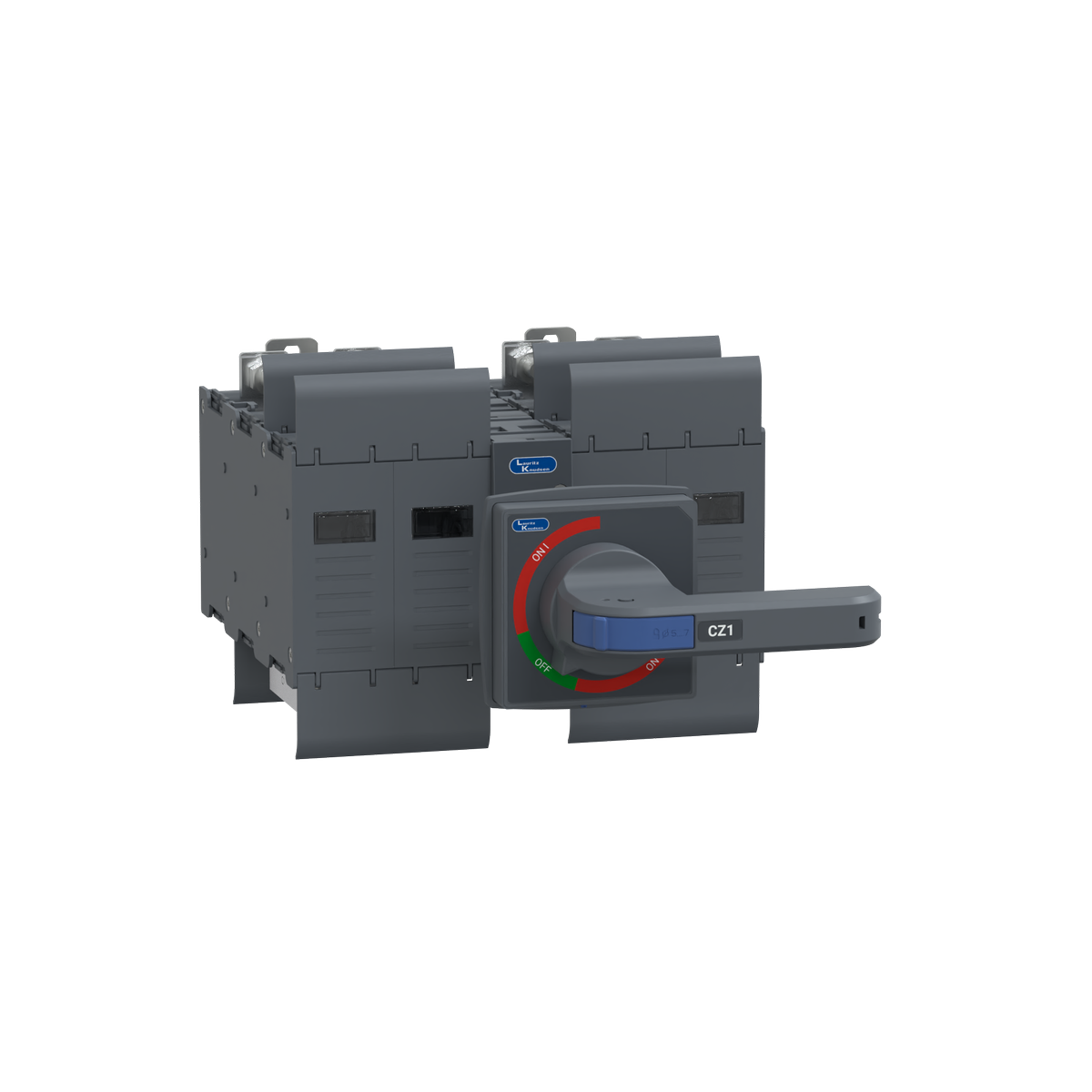

CZ1 Bypass 250A 4P 440Vac Ext Handle

In stock
SKU
CK90816OOOO
Regular Price ₹29,200.00 Special Price ₹24,119.20
17% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
CZ1 Bypass 250A 4P 440Vac Ext Handle

HSN Code - 85365010

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • Bypass Switches are meant for special application and help to maintain continuity of supply to the load in case of breakdown/maintenance of UPS or Servo stabilizer used in the circuit
  • Available from 125A to 630A, CZ Bypass Switches provide a quick, safe & compact bypass solution.
  • No hassle of operating multiple devices for safe and positive isolation on both sides of Servo/UPS
  • Easy to fit and long phase barriers for complete isolation between phases
  • The entire range is suitable for Aluminum cable/link termination as per the size prescribed by the standards
  • A door interlock is provided in ON position with defeat feature Also, Bypass Switch can be padlocked in OFF position; up to 3 padlocks can be fitted
  • Suitable for mounting in horizontal as well as vertical orientation. Also, the shaft is ‘cut-able’ and can be adjusted to suit different panel depth requirements.
  • Finger proof protection (IP30)
  • Terminal Shrouds provide protection against accidental contact with live terminals.
  • As it is swivellable, there is no need to remove during termination
Technical Specifications
  • Rated Operational Current (A)
    250
  • Conformance to Standards
    IS/IEC 60947-3, EN 60947-3
  • Utilization Category
    AC-23A
  • Operating Frequency(Hz)
    50/60
  • Mechanical Life (No. of operating cycles)
    20000
  • Rated Insulation Voltage Ui (V)
    1250
  • Short Time Withstand for 1sec (kA)
    8
  • Rated Operational Power (kW)
    132
  • Rated Making Capacity@AC-23A (A)
    2000
  • Version
    Manual
  • No. of Poles
    4P
  • Electrical life (Operating Cylces)
    2000
  • Mechanical Life (Operating Cycles)
    20000
  • Maximum Al termination (sq.mm)
    2*185
  • Mounting positions
    All Orientations
  • Standard Accessories
    Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft
  • Pollution Degree
    3
  • Rated impulse withstand voltage (Uimp)
    12
  • Discount Percentage
    Between 0-10 %
