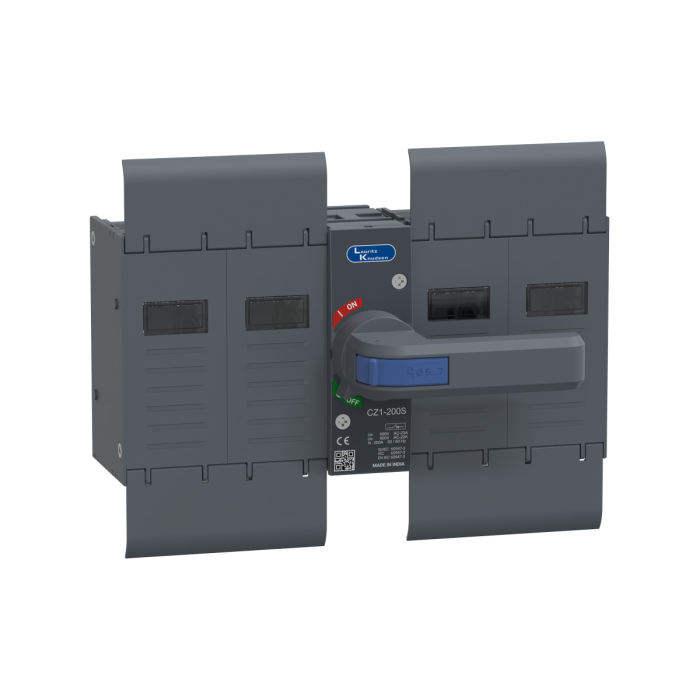

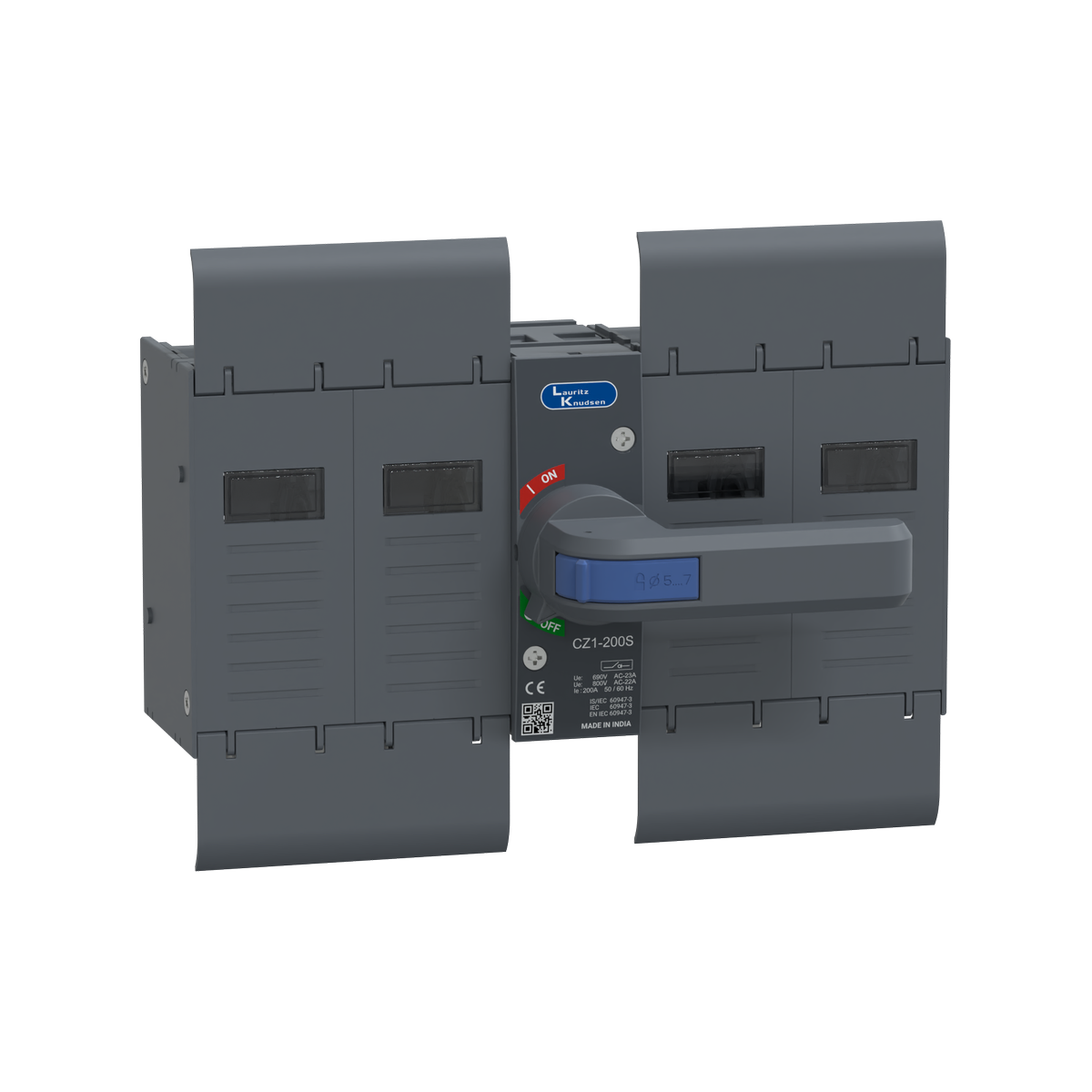

Lauritz Knudsen CZ1 Switch Disconnector 200A, 4 Pole, Open Execution Direct Handle, 50/60Hz, 690/800V AC
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen CZ1 Switch Disconnector 200A, 4 Pole, Open Execution Direct Handle, 50/60Hz, 690/800V AC
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen CZ1 SD 200A, 4 Pole, 690/800V AC Open Execution Switch Disconnector (Direct Handle, 50/60 Hz) is a high-capacity electrical switching device engineered for safe isolation & control of high-voltage circuits. Its open execution design enables easy integration into switchgear panels while providing convenient access for installation, wiring, inspection, & maintenance.
Equipped with a direct handle mechanism, this switch disconnector allows immediate & precise manual operation directly on the device, ensuring quick response & reliable control. Built with premium-grade materials & advanced engineering, it delivers consistent switching performance in demanding industrial environments. It is widely used in industrial distribution systems, switchgear panels, & high-voltage installations, ensuring safe & efficient power management.
Purpose & Function
This switch disconnector is designed for reliable circuit control & isolation:
• Ensures safe disconnection of four-pole electrical circuits
• Provides complete isolation during maintenance & servicing
• Enables direct manual operation through handle mechanism
• Minimizes risk of electrical hazards during operation
• Supports stable & controlled power distribution
Electrical Configuration
• Product type: Switch Disconnector (Open Execution, Direct Handle)
• Rated current: 200A
• Rated voltage: 690/800V AC
• Poles: 4 Pole (4P)
• Frequency: 50/60 Hz
• Function: Switching & isolation
Construction & Design
Engineered for reliable & compact industrial performance:
• High-quality insulating materials for enhanced electrical safety
• Direct handle for instant & precise manual operation
• Open execution design for easy installation & panel integration
• Durable construction suitable for high-voltage applications
• Precision-engineered mechanism for consistent performance
Safety & Protection
• Ensures safe isolation of high-voltage circuits
• Direct handle provides firm & controlled operation
• Reduces risk of accidental switching
• Enhances overall system safety & reliability
• Protects connected equipment & infrastructure
Mounting & Installation
• Designed for switchgear & panel mounting
• Direct handle allows easy on-device operation
• Open execution ensures accessibility for wiring & maintenance
• Provides secure & stable installation
• Simplifies servicing & replacement
Application Domains
• High-voltage switchgear systems
• Industrial electrical panels
• Power distribution networks
• Infrastructure & utility installations
• Commercial high-power systems
• Machinery & process industries
Key Features
• Rated 200A, 690/800V AC, 4 Pole configuration
• Direct handle for immediate manual operation
• Open execution design for easy installation
• Reliable switching & isolation performance
• Durable industrial-grade construction
Applications
• High-voltage circuit switching
• Electrical isolation during maintenance
• Industrial power distribution systems
• Switchgear & panel applications
• Safety & control systems
FAQs
1. What is a switch disconnector?
Ans: It is a device used to safely isolate electrical circuits during operation & maintenance.
2. What is a direct handle?
Ans: A direct handle allows manual operation directly on the device without external linkage.
3. What does 4P (4 Pole) mean?
Ans: It means the device switches four conductors simultaneously.
4. What voltage does this device support?
Ans: It supports high-voltage systems up to 690/800V AC.
5. What is the current rating?
Ans: It is rated for 200A applications.
6. Where is this device used?
Ans: It is used in industrial panels, switchgear systems, & power distribution networks.
7. Does it include fuse protection?
Ans: No, it is designed solely for switching & isolation without fuse protection.
Overview
| Rated Operational Current (A) | 200A |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 690V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 20000 |
| Rated Insulation Voltage Ui (V) | 1250V |
| Short Time Withstand for 1sec (kA) | 8 |
| Rated Breaking Capacity@AC-23A (A) | 1600 |
| Rated Making Capacity@AC-23A (A) | 2000 |
| Version | Open Execution |
| No. of Poles | 4P |
| Maximum Al termination (sq.mm) | 2 X 185 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shrouds, Phase Barriers, Direct Handle |
| Pollution Degree | 3 |
| Discount Percentage | Between 0-10 % |
