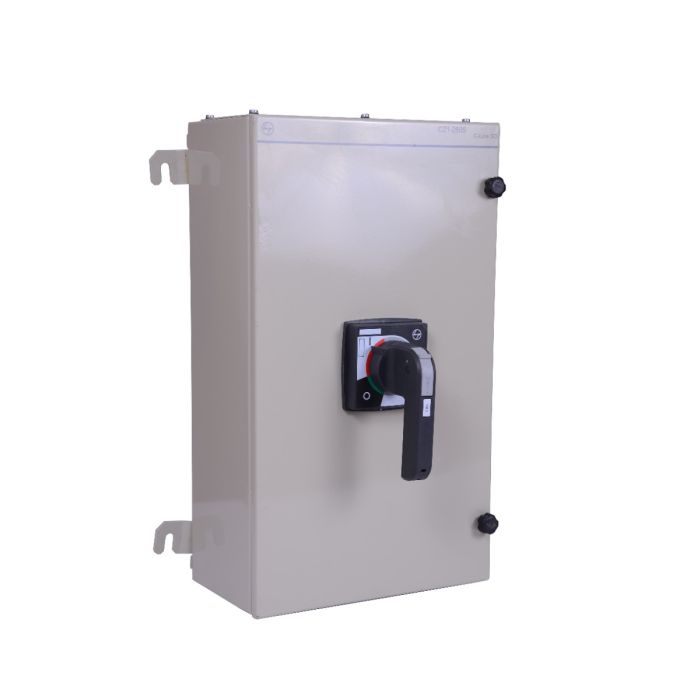

CZ1 SD 200A 4P 690/800V AC Open Execution SS Encl 50/60 Hz
CK90821OOOO
₹18,640.00
₹13,197.12
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
CK90821OOOO
CZ1 SD 200A 4P 690/800V AC Open Execution SS Encl 50/60 Hz
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
CZ1 SD 200A 4P 690/800V AC Open Execution SS Encl 50/60 Hz
₹18,640.00
₹13,197.12
Description
CZ SDs, FN SDs, C-line SDs are with the following safety features as a standard offering:
- Terminal Shrouds on both line and load side
- Phase barriers
- High clearances and creepage distances
- High ground clearance
- FN SD range: 32A to 1000A
- CZ SD Range: 125A to 630A
- C-Line SD Range: 1000A to 2000A
- AC-23A utilization category for entire range
- Quick-make /Quick-break mechanism
- Suitable for Aluminum termination
- Door interlocking in ON position with defeat feature
Product Details
| Rated Operational Current (A) | 200A |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 690V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 20000 |
| Rated Insulation Voltage Ui (V) | 1250V |
| Short Time Withstand for 1sec (kA) | 8 |
| Rated Breaking Capacity@AC-23A (A) | 1600 |
| Rated Making Capacity@AC-23A (A) | 2000 |
| Version | SS enclosure |
| No. of Poles | 4P |
| Maximum Al termination (sq.mm) | 2 X 185 |
| Standard Accessories | Terminal Shrouds, Phase Barriers, Extended handle with shaft |
| Discount Percentage | Between 0-10 % |
