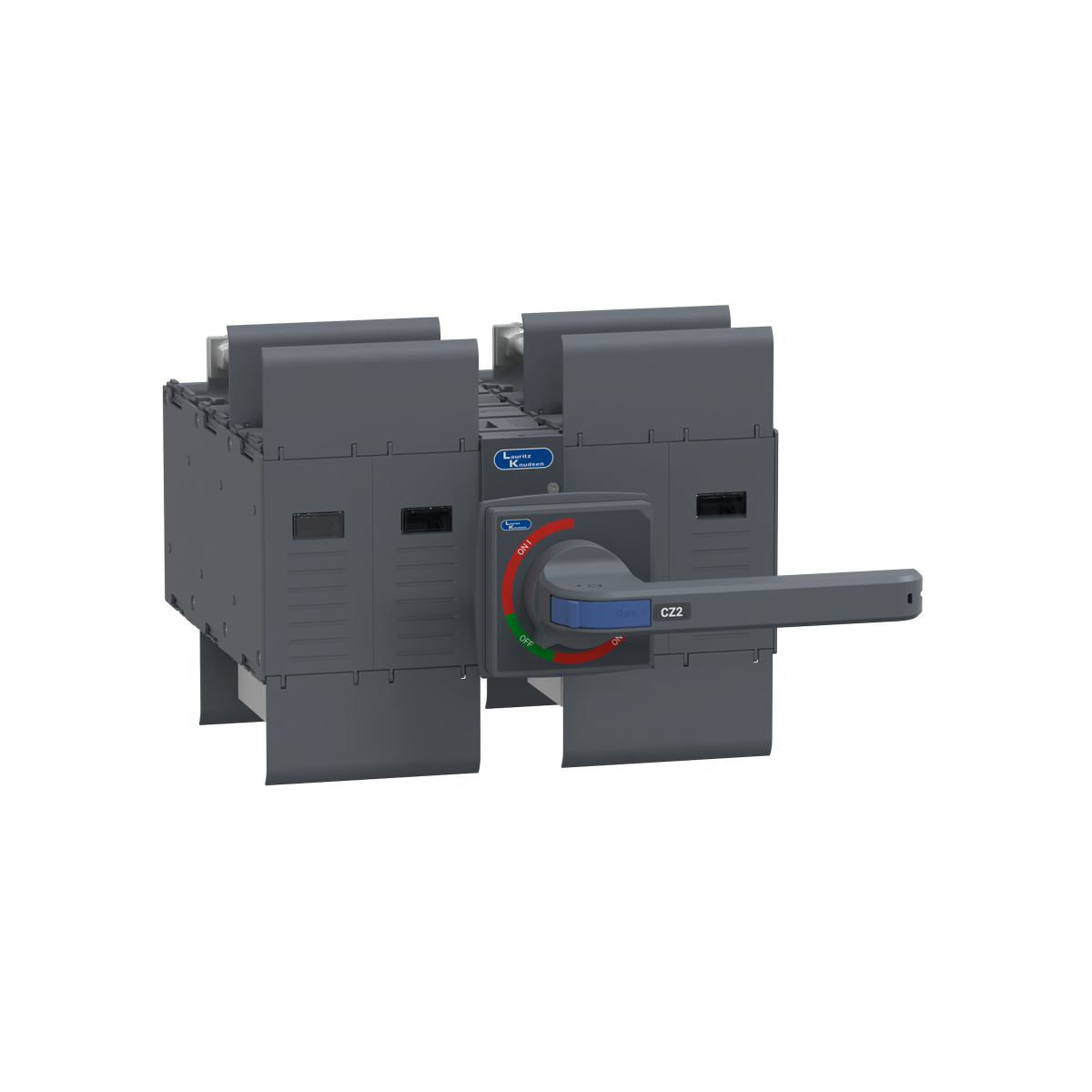

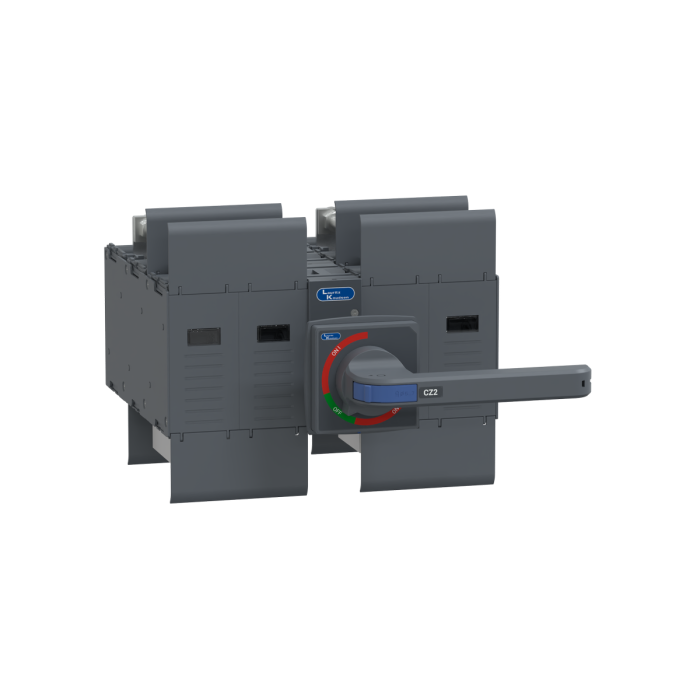

Lauritz Knudsen Bypass Switch CZ2, 400A | 4 Pole | Open Execution with extended handle | 440V AC
SKU :
CK90876OOOO
calcPageSize())"
/>
calcActive())">
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CK90876OOOO
Lauritz Knudsen Bypass Switch CZ2, 400A | 4 Pole | Open Execution with extended handle | 440V AC
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹52,330.00
₹35,286.72
Incl. Tax
To View the best prices please Log In / Register
Shipping:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping:
Out of stock
Lauritz Knudsen Bypass Switch CZ2, 400A | 4 Pole | Open Execution with extended handle | 440V AC
₹52,330.00
₹35,286.72
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen Bypass Switches are meant for special application and help to maintain continuity of supply to the load in case of breakdown/maintenance of UPS or Servo stabilizer used in the circuit
- Available from 125A to 630A, CZ Bypass Switches provide a quick, safe & compact bypass solution.
- No hassle of operating multiple devices for safe and positive isolation on both sides of Servo/UPS
- A long phase barriers for complete isolation between phases
- The entire range is suitable for Aluminum cable/link termination as per the size prescribed by the standards
- A door interlock is provided in ON position with defeat feature Also, Bypass Switch can be padlocked in OFF position; up to 3 padlocks can be adjusted to suit different panel depth requirements.
- Suitable for mounting in horizontal as well as vertical orientation.
- Finger proof protection (IP30)
- Terminal Shrouds provide protection against accidental contact with live terminals.
- As it is swivellable, there is no need to remove during termination
Overview
| Rated Operational Current (A) | 400 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 20000 |
| Rated Insulation Voltage Ui (V) | 1250 |
| Short Time Withstand for 1sec (kA) | 16 |
| Rated Operational Power (kW) | 200 |
| Rated Making Capacity@AC-23A (A) | 3200 |
| Version | Manual |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 2000 |
| Mechanical Life (Operating Cycles) | 20000 |
| Maximum Al termination (sq.mm) | 2*300 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 12 |
| Discount Percentage | Between 0-10 % |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
