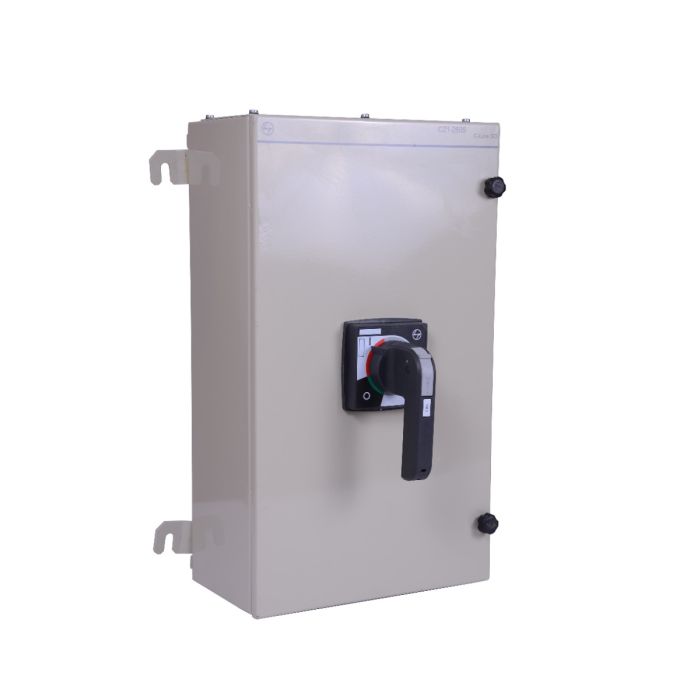

CZ2 SD 315A 4P 690/800V AC Open Execution SS Encl 50/60 Hz
In stock
SKU
CK90878OOOO
Regular Price
₹24,900.00
Special Price
₹20,567.40
17% Off
( Prices are all inclusive of taxes )CZ2 SD 315A 4P 690/800V AC Open Execution SS Encl 50/60 Hz
HSN Code - 85365010
HSN Code - 85365010
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
CZ SDs, FN SDs, C-line SDs are with the following safety features as a standard offering:
- Terminal Shrouds on both line and load side
- Phase barriers
- High clearances and creepage distances
- High ground clearance
- FN SD range: 32A to 1000A
- CZ SD Range: 125A to 630A
- C-Line SD Range: 1000A to 2000A
- AC-23A utilization category for entire range
- Quick-make /Quick-break mechanism
- Suitable for Aluminum termination
- Door interlocking in ON position with defeat feature
-
Rated Operational Current (A)315A
-
Conformance to StandardsIS/IEC 60947-3, EN 60947-3
-
Utilization CategoryAC-23A
-
Rated operational voltage (Ue)690V
-
Operating Frequency(Hz)50/60
-
Mechanical Life (No. of operating cycles)20000
-
Rated Insulation Voltage Ui (V)1250V
-
Short Time Withstand for 1sec (kA)16
-
Rated Breaking Capacity@AC-23A (A)2500
-
Rated Making Capacity@AC-23A (A)3150
-
VersionSS enclosure
-
No. of Poles4P
-
Maximum Al termination (sq.mm)2 X 300
-
Standard AccessoriesTerminal Shrouds, Phase Barriers, Extended handle with shaft
-
Discount PercentageBetween 0-10 %
