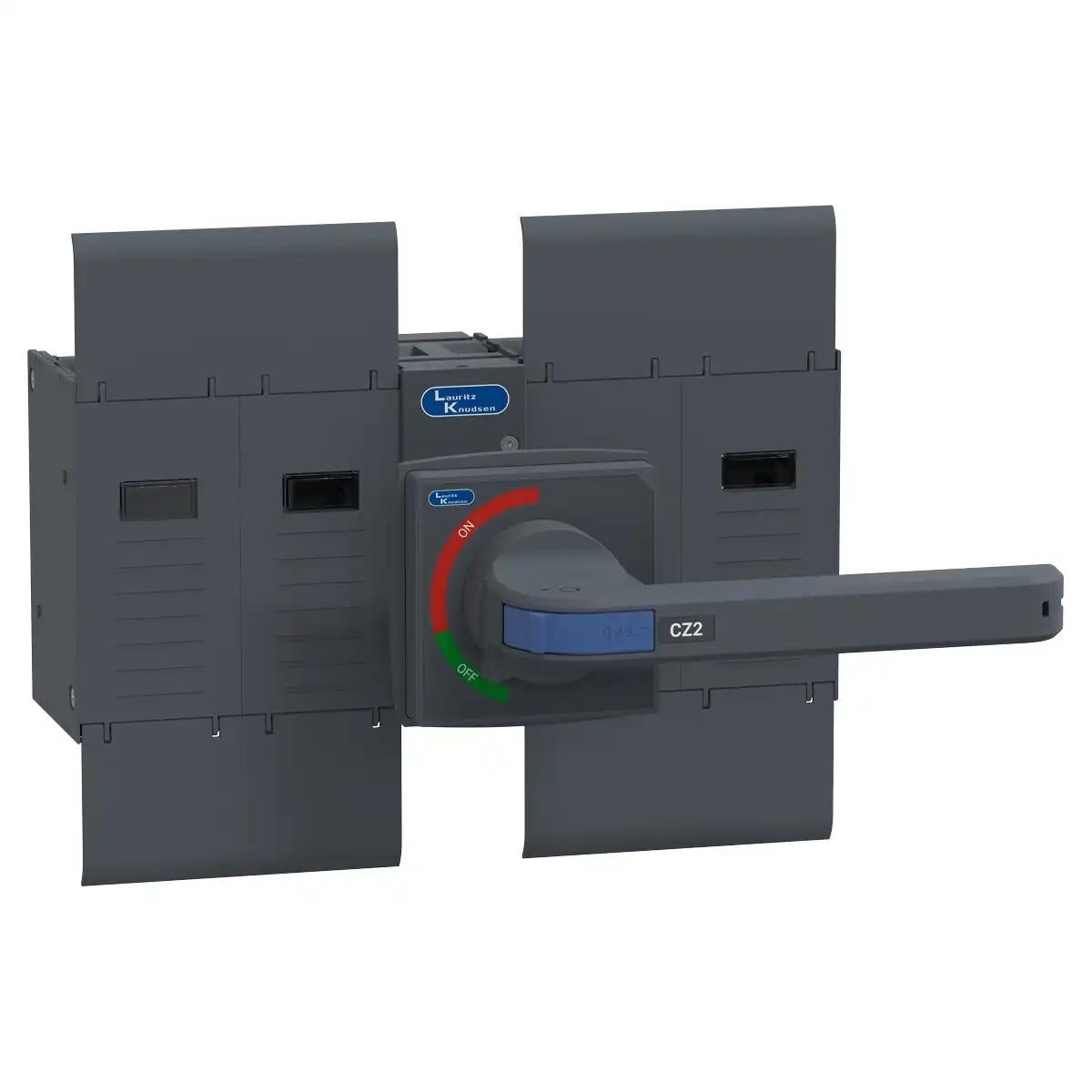

CZ2 SD 630A 4P 690/800V AC Open Execution Ext Handle 50/60 Hz

CK90859OOOO
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

CZ SDs, FN SDs, C-line SDs are with the following safety features as a standard offering:
  • Terminal Shrouds on both line and load side
  • Phase barriers
  • High clearances and creepage distances
  • High ground clearance
Offering:
  • FN SD range: 32A to 1000A
  • CZ SD Range: 125A to 630A
  • C-Line SD Range: 1000A to 2000A
Salient Features:
  • AC-23A utilization category for entire range
  • Quick-make /Quick-break mechanism
  • Suitable for Aluminum termination
  • Door interlocking in ON position with defeat feature

Product Details

Rated Operational Current (A) 630A
Conformance to Standards IS/IEC 60947-3, EN 60947-3
Utilization Category AC-23A
Rated operational voltage (Ue) 690V
Operating Frequency(Hz) 50/60
Mechanical Life (No. of operating cycles) 20000
Rated Insulation Voltage Ui (V) 1250V
Short Time Withstand for 1sec (kA) 20
Rated Breaking Capacity@AC-23A (A) 5000
Rated Making Capacity@AC-23A (A) 6300
Version Open Execution
No. of Poles 4P
Maximum Al termination (sq.mm) 2 X 300
Mounting positions All Orientations
Standard Accessories Terminal Shrouds, Phase Barriers, Extended handle with shaft
Pollution Degree 3
Discount Percentage Between 0-10 %
