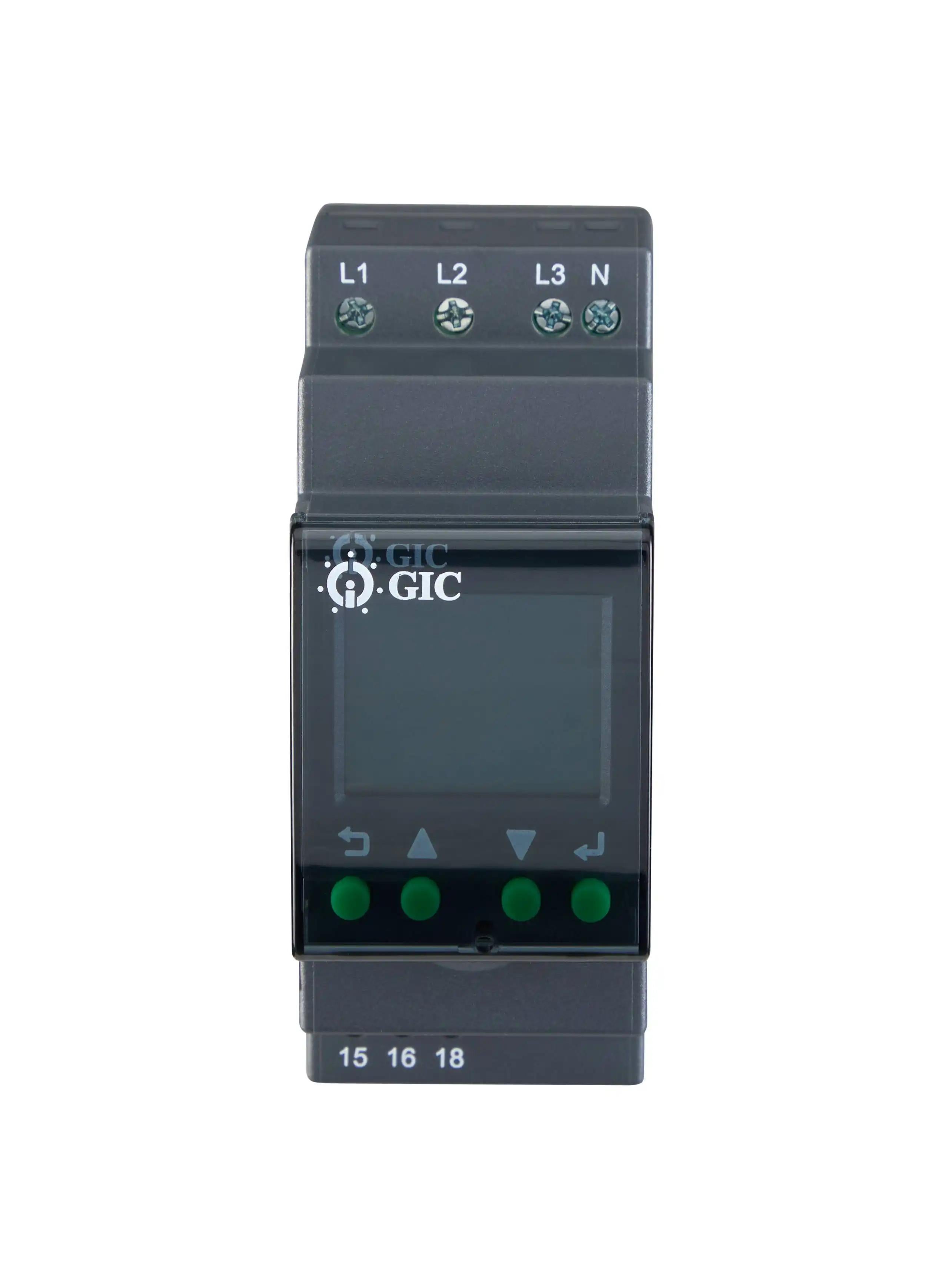

Digital SPP 145-500 VAC (Line Voltage
In stock
SKU
DMS110
Regular Price
₹1,965.00
Price
₹1,965.00
20% Off
( Prices are all inclusive of taxes )Digital SPP 145-500 VAC (Line Voltage
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
Monitoring Relay with display is a protective control device which is used to receive input voltage signals. It monitors the voltage signals and raises an output in case threshold is reached. Features Protects against Phase Loss, Phase Sequence & phase to phase unbalance and neutral loss
Can be configured for 3 phase 3 wire and 3 phase 4 wire system
Adjustable ON delay and Trip time delay
LED Indications for Power ON, UV, OV and phase faults
1 C/O & 2 C/O Configuration
Wide range of supply Voltage: 145VAC-500VAC Application: MCC Panels/Process automation panels
-
Rated operational voltage (Ue)145-500 VAC
-
Conformance to IEC standardsIEC-60947-5-1
-
Internationals & Environemnt Compliances ConformanceCE, & RoHS
-
IP rating65
-
time rangePower ON Delay (0 to 999 sec) , OFF Delay (0.1 to 999 sec) & ON delay (0.5 to 999 sec)
-
no of contacts1
-
Phase SymmetryVoltage: 5 to 99 VAC (Default 60V) , Percentage : 2 to 50% (Default 10%)
-
Type of Sysytem (phases)3Ph, 3W/4W
-
Type Of MountingDin Mounting
-
TypeSingle Phasing Preventor + Selectable Under Voltage + Selectable Over Voltage + Neutral Loss ( Applicable for 3P4W).
