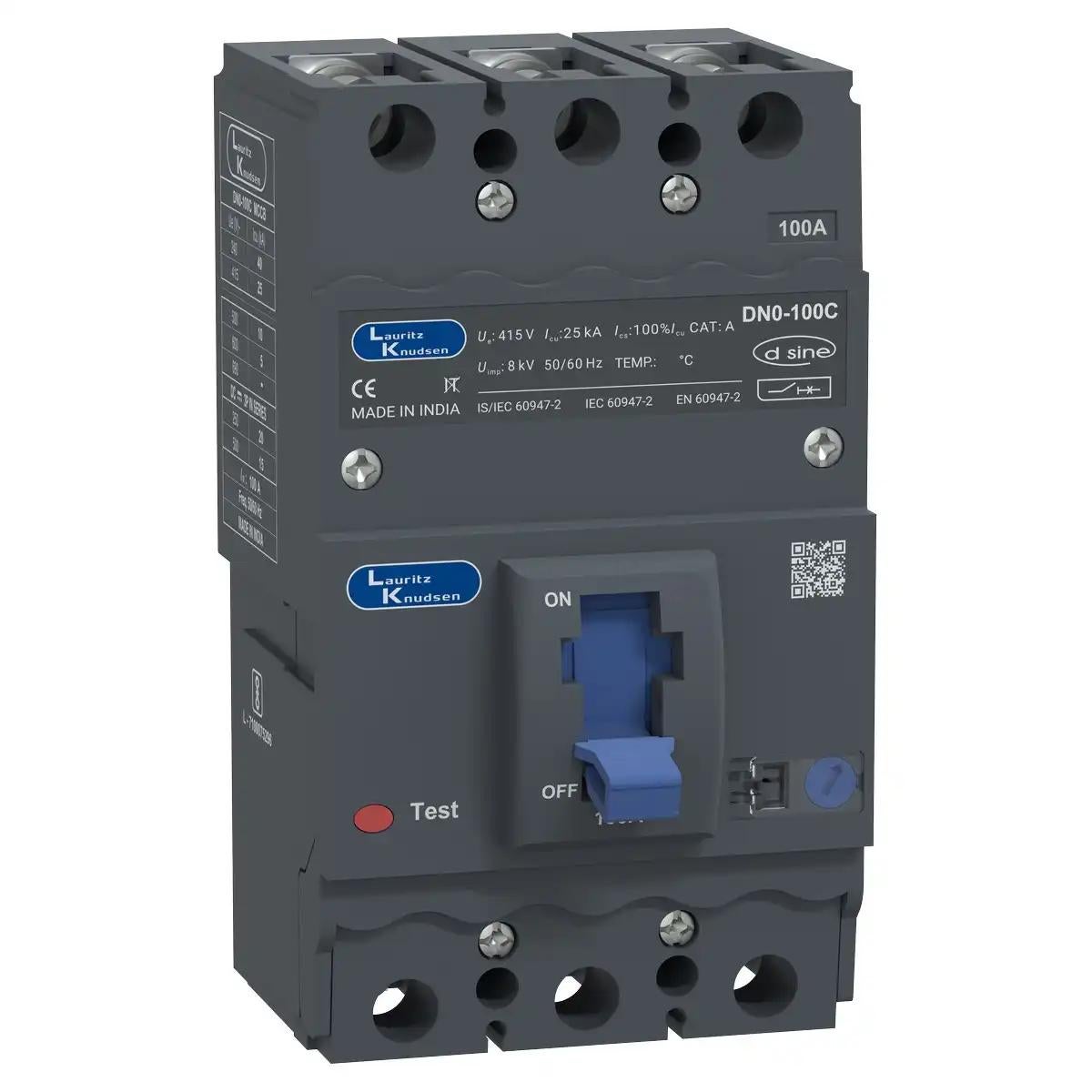

Lauritz Knudsen DN0C, MCCB, 3 Pole, 415V AC, 25kA Breaking Capacity, 100A | Thermal-Magnetic Release | IP40 Protection
SKU :
CM91612OOKOOG
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CM91612OOKOOG
Lauritz Knudsen DN0C, MCCB, 3 Pole, 415V AC, 25kA Breaking Capacity, 100A | Thermal-Magnetic Release | IP40 Protection
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹9,920.00
₹8,193.92
Incl. Tax
To View the best prices please Log In / Register
Shipping:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping:
Out of stock
Lauritz Knudsen DN0C, MCCB, 3 Pole, 415V AC, 25kA Breaking Capacity, 100A | Thermal-Magnetic Release | IP40 Protection
₹9,920.00
₹8,193.92
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
Overview
| Rated Operational Current | 100A |
|---|---|
| Mechanical Life (No. of operating cycles) | 40000 |
| No. of Poles | 3P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 25kA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 1 |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 12000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 75 |
| Height(mm) | 130 |
| Depth(mm) | 60 |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
