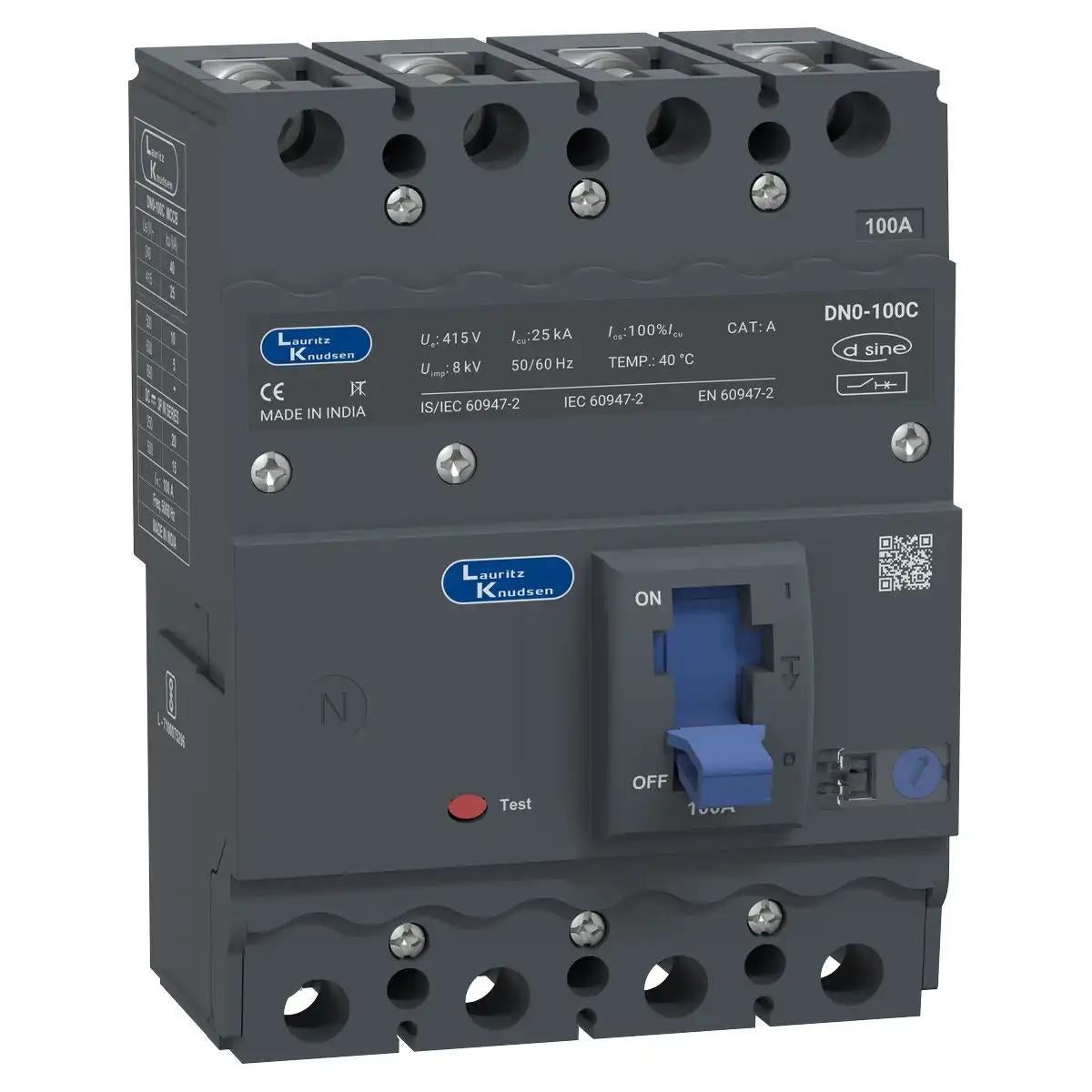

Lauritz Knudsen DN0C, MCCB, 4 Pole, 415V AC, 25kA Breaking Capacity, 100A | Thermal-Magnetic Release | IP40 Protection
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax

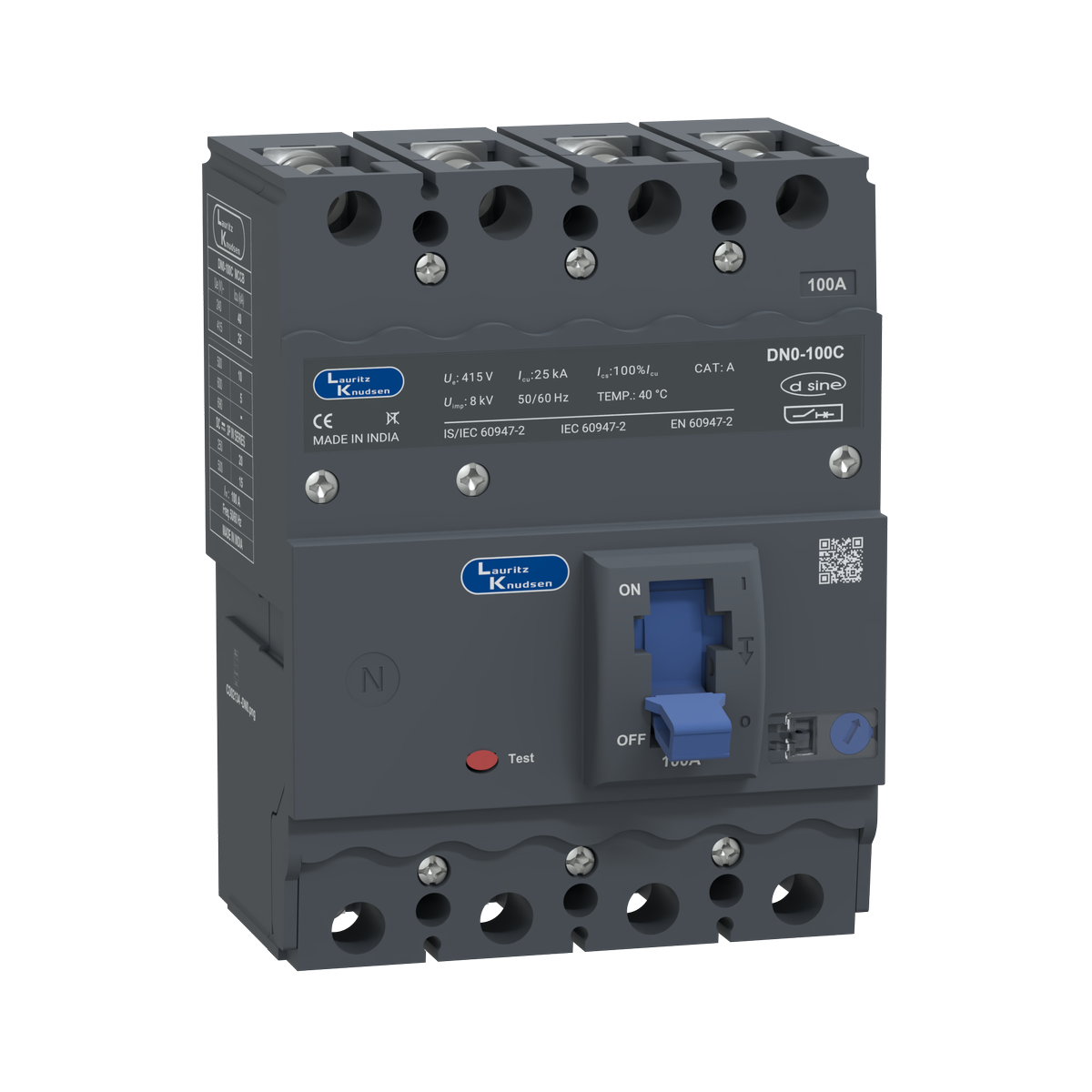

Lauritz Knudsen DN0C, MCCB, 4 Pole, 415V AC, 25kA Breaking Capacity, 100A | Thermal-Magnetic Release | IP40 Protection
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen DN0C MCCB 100A 4 Pole 415V AC 25kA Thermal Magnetic is a robust molded case circuit breaker engineered to deliver efficient protection for electrical distribution systems. Designed for reliable interruption of fault currents & overload conditions, it helps safeguard electrical equipment, cables, & installations from damage caused by abnormal operating conditions.
Featuring a 100A rated current, 4 Pole configuration, 415V AC operating voltage, & 25kA short-circuit breaking capacity, this MCCB is suitable for protecting three-phase electrical systems where neutral protection & isolation are also required. It is widely used in commercial buildings, industrial facilities, utility installations, & infrastructure projects.
The thermal magnetic trip mechanism offers dual protection by providing thermal protection against overloads & magnetic protection against short circuits, ensuring dependable circuit safety & system reliability.
How the Mechanism Works
The product functions by:
• Protecting circuits against overload conditions
• Interrupting short-circuit fault currents
• Automatically disconnecting faulty circuits
• Protecting electrical equipment & wiring
• Providing phase & neutral isolation
• Enhancing electrical system safety
• Supporting reliable power distribution
• Delivering dependable fault-clearing performance
It serves as a reliable protective device for modern electrical distribution systems requiring comprehensive circuit protection.
Electrical Configuration
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: DN0C
• Current Rating: 100A
• Pole Configuration: 4 Pole
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 25kA
• Trip Type: Thermal Magnetic
• Application: Circuit Protection
• Suitable For: Three-Phase Electrical Systems with Neutral Protection
• Catalog Number: CM91712OOKOOG
Construction & Design
Designed for reliable circuit protection:
• Thermal magnetic trip mechanism
• 100A rated current capacity
• 4-pole protection configuration
• 25kA short-circuit breaking capability
• Durable MCCB construction
• Reliable contact system
• Compact installation design
• Long operational lifespan
Safety & Protection
• Reliable overload protection
• Fast short-circuit interruption
• Enhanced electrical system safety
• Improved equipment protection
• Phase & neutral disconnection
• Dependable fault-clearing performance
• Reduced downtime risks
• Long-term operational reliability
Mounting & Durability
• Suitable for electrical distribution panels
• Compatible with commercial & industrial installations
• Rugged molded case construction
• Reliable mechanical endurance
• High-quality manufacturing standards
• Designed for continuous operation
• Minimal maintenance requirements
• Suitable for demanding operating environments
Application Domains
• Industrial Facilities
• Manufacturing Plants
• Commercial Buildings
• Data Centers
• Utility Installations
• Electrical Distribution Panels
• Infrastructure Projects
• Power Management Systems
Key Features
• DN0C MCCB series
• 100A current rating
• 4 Pole configuration
• 415V AC operation
• 25kA breaking capacity
• Thermal magnetic protection
• Overload protection
• Short-circuit protection
• Neutral isolation capability
• Long service life
Applications
• Three-phase power distribution
• Electrical panel installations
• Commercial power systems
• Industrial machinery protection
• Utility distribution networks
• Infrastructure electrical systems
• Critical load protection
• Equipment circuit protection
FAQs
1. What is the CM91712OOKOOG MCCB used for?
Ans: It is used for protecting electrical circuits & equipment against overloads & short circuits in three-phase electrical systems with neutral protection.
2. What is the current rating of this MCCB?
Ans: The MCCB is rated at 100A.
3. What does 4 Pole mean?
Ans: A 4 Pole MCCB provides protection & switching for all three phase conductors & the neutral conductor.
4. What is the breaking capacity of this MCCB?
Ans: It has a 25kA short-circuit breaking capacity, enabling safe interruption of high fault currents.
5. What is a thermal magnetic trip mechanism?
Ans: It combines thermal protection for overload conditions & magnetic protection for short-circuit faults.
6. Where can this MCCB be installed?
Ans: It can be installed in distribution boards, industrial panels, commercial buildings, utility systems, & power distribution networks.
7. Why choose a 4 Pole MCCB?
Ans: A 4 Pole MCCB provides complete protection & isolation of all phases & the neutral conductor, improving system safety & maintenance capability.
8. Does it require frequent maintenance?
Ans: No, its durable construction & dependable protection mechanism provide long-term, low-maintenance operation under normal operating conditions.
Overview
| Rated Operational Current | 100A |
|---|---|
| Mechanical Life (No. of operating cycles) | 40000 |
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 25kA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 1 |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 12000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 100 |
| Height(mm) | 130 |
| Depth(mm) | 60 |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
