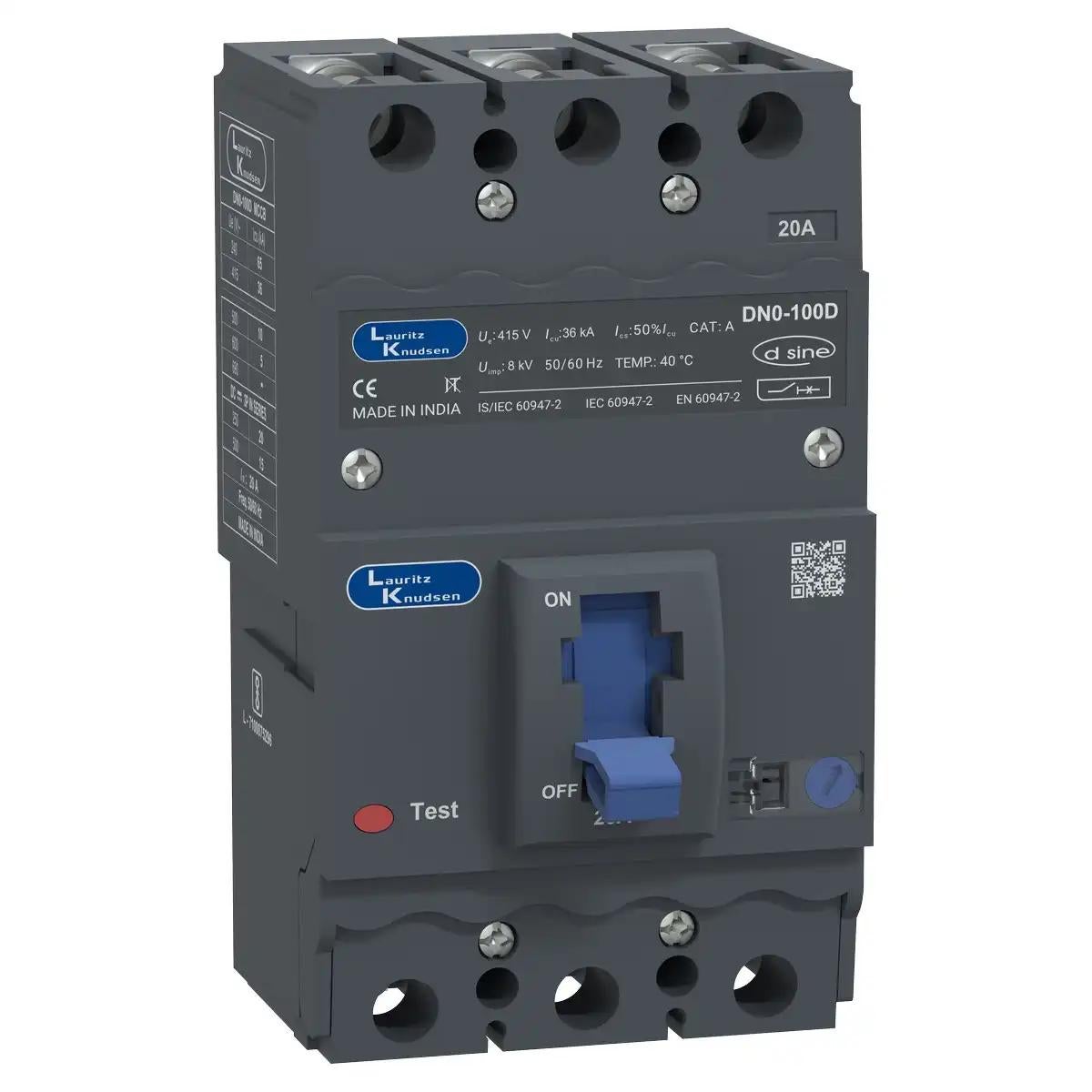

Lauritz Knudsen DN0D, MCCB, 3 Pole, 415V AC, 36kA Breaking Capacity, 20A | Thermal-Magnetic Release | IP40 Protection
CM97893OOC2OG
₹9,930.00
₹8,202.18
Incl. Tax
To View the best prices please Log In / Register
Loading...
All Sellers
CM97893OOC2OG
Lauritz Knudsen DN0D, MCCB, 3 Pole, 415V AC, 36kA Breaking Capacity, 20A | Thermal-Magnetic Release | IP40 Protection
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Lauritz Knudsen DN0D, MCCB, 3 Pole, 415V AC, 36kA Breaking Capacity, 20A | Thermal-Magnetic Release | IP40 Protection
₹9,930.00
₹8,202.18
Description
The dsineDN series, State-of-the-art design, user-friendly features and a wide spectrum of protection releases form the hallmarks of the range. Also recognised for its ergonomics, aesthetics and compactness, it belongs to a new generation of MCCBs. Specially designed and developed for extreme tropical conditions, it promises reliable performance at high
ambient and humid environment. dsineDN Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2, NABL accreditation and the products conform to international standards, carry CE marking.
dsine, unfailingly, caters to the ever-evolving needs of customers, derived after in-depth analysis and customer feedback. Because we understand our customers' requirements and demands, our contemporary range of MCCBs never fall short of ensuring complete customer satisfaction. Moreover, complemented by a host of accessories, the dsine range delivers comprehensive solutions to customer applications ensuring operational safety, reliability and
versatility..
Product Details
| Rated Operational Current | 20A |
|---|---|
| Mechanical Life (No. of operating cycles) | 40000 |
| No. of Poles | 3P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 36kA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 0.5 |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 8000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 75 |
| Height(mm) | 130 |
| Depth(mm) | 60 |
