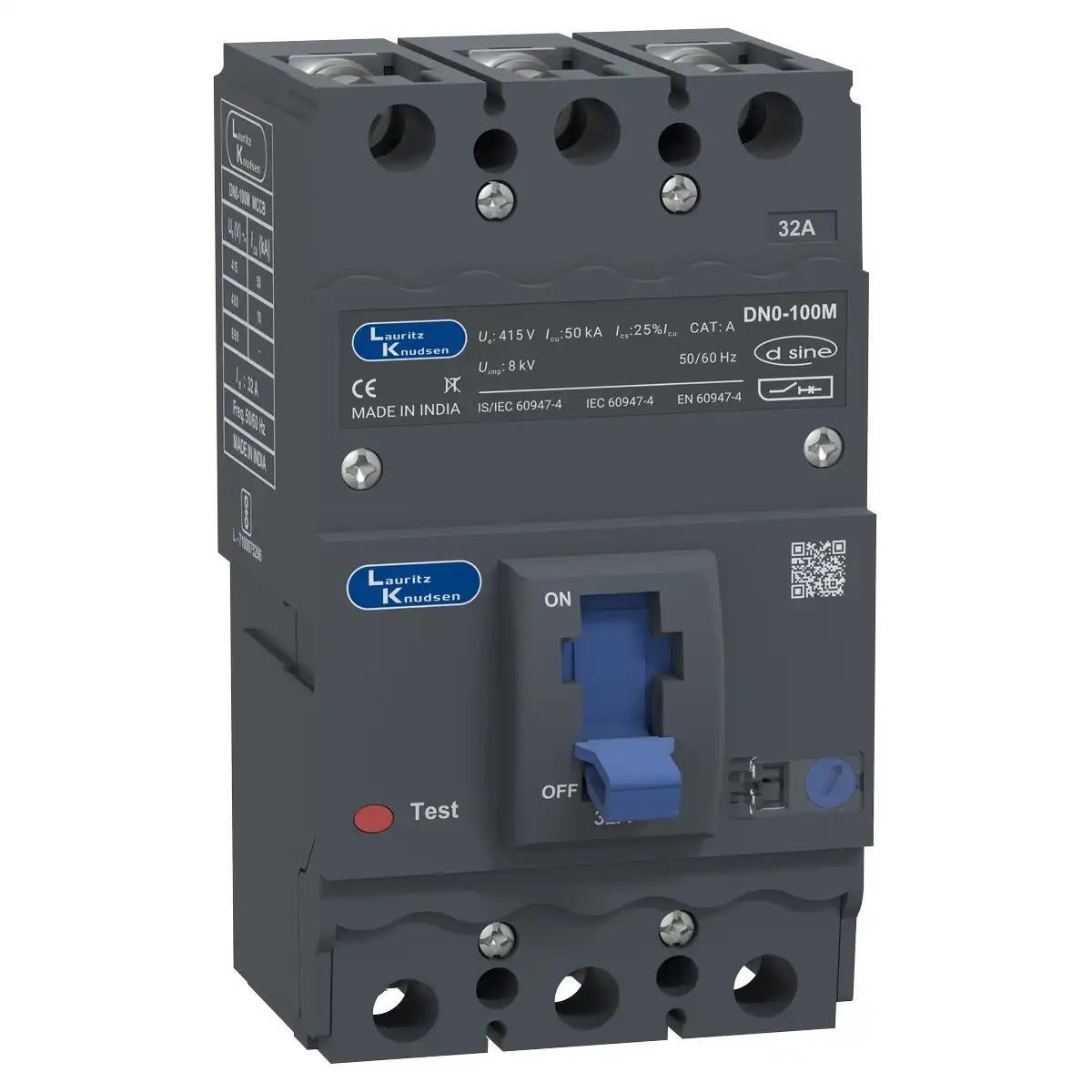

DN0M MCCB 32 3P 415V AC 50kA M 50/60 Hz

CM98944OOEO
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

The dsineDN series, State-of-the-art design, user-friendly features and a wide spectrum of protection releases form the hallmarks of the range. Also recognised for its ergonomics, aesthetics and compactness, it belongs to a new generation of MCCBs. Specially designed and developed for extreme tropical conditions, it promises reliable performance at high ambient and humid environment. dsineDN Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2, NABL accreditation and the products conform to international standards, carry CE marking. dsine, unfailingly, caters to the ever-evolving needs of customers, derived after in-depth analysis and customer feedback. Because we understand our customers' requirements and demands, our contemporary range of MCCBs never fall short of ensuring complete customer satisfaction. Moreover, complemented by a host of accessories, the dsine range delivers comprehensive solutions to customer applications ensuring operational safety, reliability and versatility..

Product Details

Rated Operational Current 32A
Mechanical Life (No. of operating cycles) 40000
No. of Poles 3P
Rated Operational voltage (Ue) 415V AC
Rated Insulation Voltage Ui (V) 800 V
Conformance to Standards IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4
Rated impulse withstand voltage (Uimp) 8 kV
Operational Frequency (Hz) 50/60 Hz
Release Type Magnetic
Rated Short Circuit Breaking capacity Icu(kA) 50kA
Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC 0.25
Ambient temperature -5°C to 55°C
Suitable for isolation Yes
Load-line bias No
Electrical Life (Operating Cycles) 8000
IP Protection IP40
Pollution Degree III
Width(mm) 75
Height(mm) 130
Depth(mm) 60
