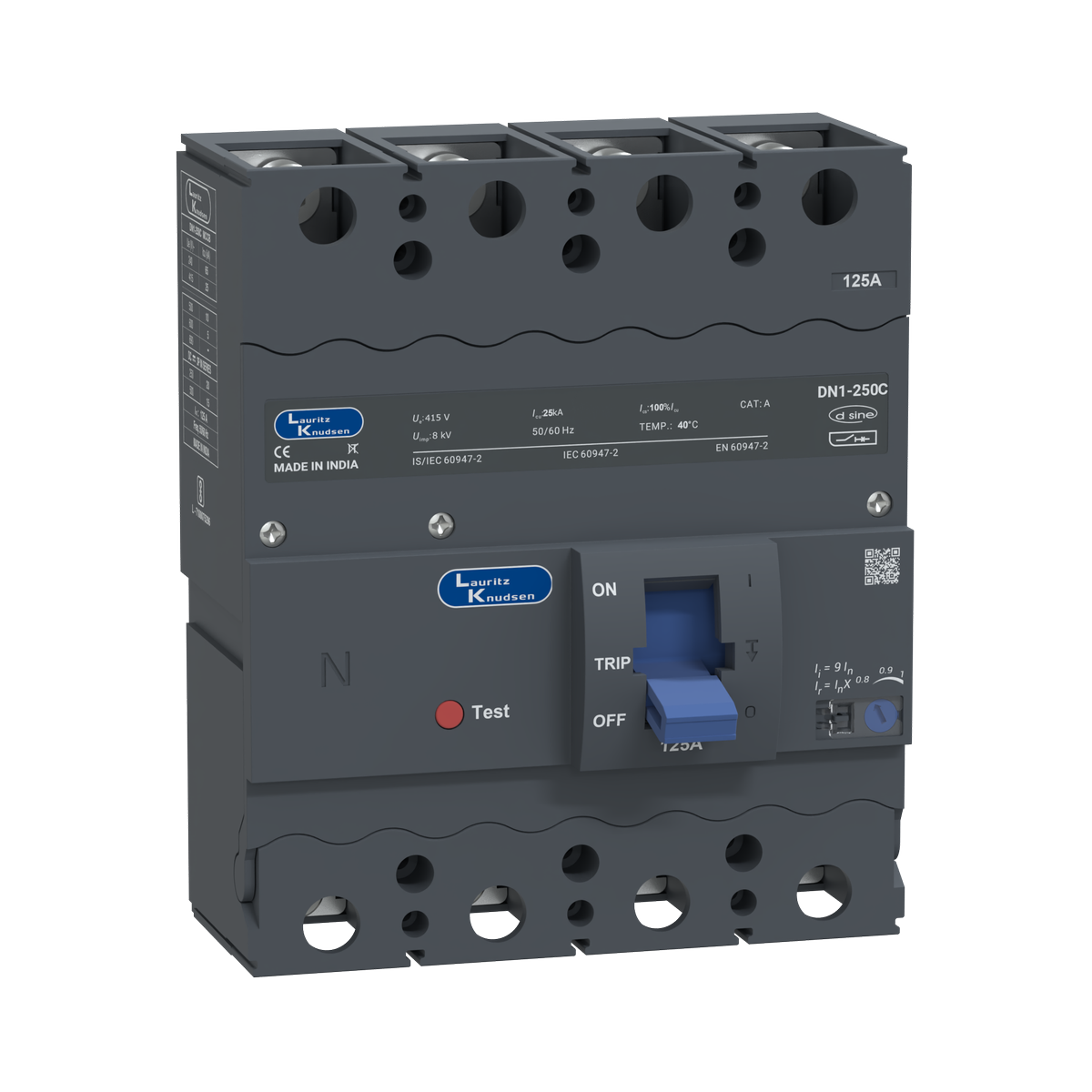

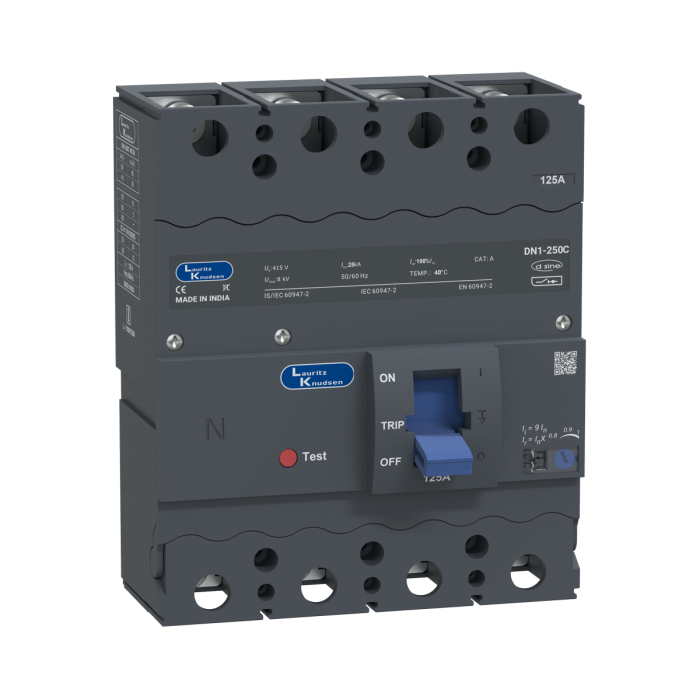

Lauritz Knudsen DN1C, MCCB, 4 Pole, 415V AC, 25kA Breaking Capacity, 125A | Thermal-Magnetic Release | IP40 Protection
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen DN1C MCCB 125A 4 Pole 415V AC 25kA Thermal Magnetic is a robust molded case circuit breaker engineered to deliver efficient protection for electrical distribution systems. Designed for reliable interruption of overload & short-circuit fault currents, it helps safeguard electrical equipment, cables, motors, & installations from damage caused by abnormal operating conditions.
Featuring a 125A rated current, 4 Pole configuration, 415V AC operating voltage, & 25kA short-circuit breaking capacity, this MCCB is ideal for protecting three-phase electrical systems where neutral protection & isolation are also required. It is widely used in industrial facilities, commercial buildings, infrastructure projects, power distribution panels, & utility installations.
The integrated thermal magnetic trip mechanism provides dual protection by offering thermal protection against overload conditions & magnetic protection against short-circuits, ensuring reliable fault management, electrical safety, & equipment protection.
How the Mechanism Works
The product functions by:
• Protecting circuits against overload conditions
• Interrupting short-circuit fault currents
• Automatically disconnecting faulty circuits
• Protecting electrical equipment & cables
• Providing simultaneous phase & neutral isolation
• Supporting safe power distribution
• Reducing the risk of electrical damage
• Delivering dependable fault-clearing performance
It serves as a reliable protection device for modern electrical distribution systems requiring comprehensive circuit protection & complete isolation capability.
Electrical Configuration
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: DN1C
• Current Rating: 125A
• Pole Configuration: 4 Pole
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 25kA
• Trip Type: Thermal Magnetic
• Application: Circuit Protection
• Suitable For: Three-Phase Electrical Systems with Neutral Protection
• Catalog Number: CM90642OOLO
Construction & Design
Designed for dependable circuit protection:
• Thermal magnetic trip mechanism
• 125A rated current capacity
• 4-pole protection configuration
• 25kA short-circuit breaking capability
• Durable molded case construction
• Reliable contact system
• Compact installation design
• Long operational lifespan
Safety & Protection
• Reliable overload protection
• Fast short-circuit interruption
• Enhanced electrical safety
• Improved equipment protection
• Complete phase & neutral isolation
• Dependable fault-clearing performance
• Reduced downtime risks
• Long-term system reliability
Mounting & Durability
• Suitable for electrical distribution panels
• Compatible with commercial & industrial installations
• Rugged molded case construction
• Reliable mechanical endurance
• High manufacturing standards
• Designed for continuous duty operation
• Minimal maintenance requirements
• Suitable for demanding environments
Application Domains
• Industrial Facilities
• Manufacturing Plants
• Commercial Buildings
• Infrastructure Projects
• Utility Installations
• Data Centers
• Electrical Distribution Panels
• Power Management Systems
Key Features
• DN1C MCCB series
• 125A current rating
• 4 Pole configuration
• 415V AC operation
• 25kA breaking capacity
• Thermal magnetic protection
• Overload protection
• Short-circuit protection
• Neutral isolation capability
• Long operational life
Applications
• Three-phase power distribution
• Industrial machinery protection
• Electrical panel installations
• Motor feeder protection
• Commercial electrical systems
• Utility distribution networks
• Power management systems
• Equipment circuit protection
FAQs
1. What is the CM90642OOLO MCCB used for?
Ans: It is used for protecting electrical circuits & equipment against overloads & short circuits in three-phase electrical systems with neutral protection requirements.
2. What is the current rating of this MCCB?
Ans: The MCCB is rated at 125A.
3. What does 4 Pole mean?
Ans: A 4 Pole MCCB provides protection & switching for all three phase conductors & the neutral conductor.
4. What is the breaking capacity of this MCCB?
Ans: It has a 25kA short-circuit breaking capacity, enabling safe interruption of high fault currents.
5. What is a thermal magnetic trip mechanism?
Ans: It combines thermal overload protection & instantaneous magnetic short-circuit protection to provide comprehensive circuit protection.
6. Where can this MCCB be installed?
Ans: It can be installed in distribution boards, industrial control panels, commercial buildings, utility systems, & power distribution networks.
7. Why choose a 4 Pole MCCB?
Ans: A 4 Pole MCCB provides complete isolation of all phases & neutral, improving electrical safety, maintenance efficiency, & operational reliability.
8. Does it require frequent maintenance?
Ans: No, its durable construction & reliable protection mechanism ensure long-term, low-maintenance operation under normal operating conditions.
Overview
| Rated Operational Current | 125 |
|---|---|
| Mechanical Life (No. of operating cycles) | 25000 |
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | TM |
| Rated Short Circuit Breaking capacity Icu(kA) | DN1C MCCB 125 4P 415V AC 25kA Thermal Magnetic 50/60 Hz |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 25kA |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 10000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 140 |
| Height(mm) | 165 |
| Depth(mm) | 60 |
