Lauritz Knudsen DN2D, MCCB, 3 Pole, 415V AC, 36kA Breaking Capacity, 250A | Microprocessor Release MTX1.0 | IP40 Protection
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax

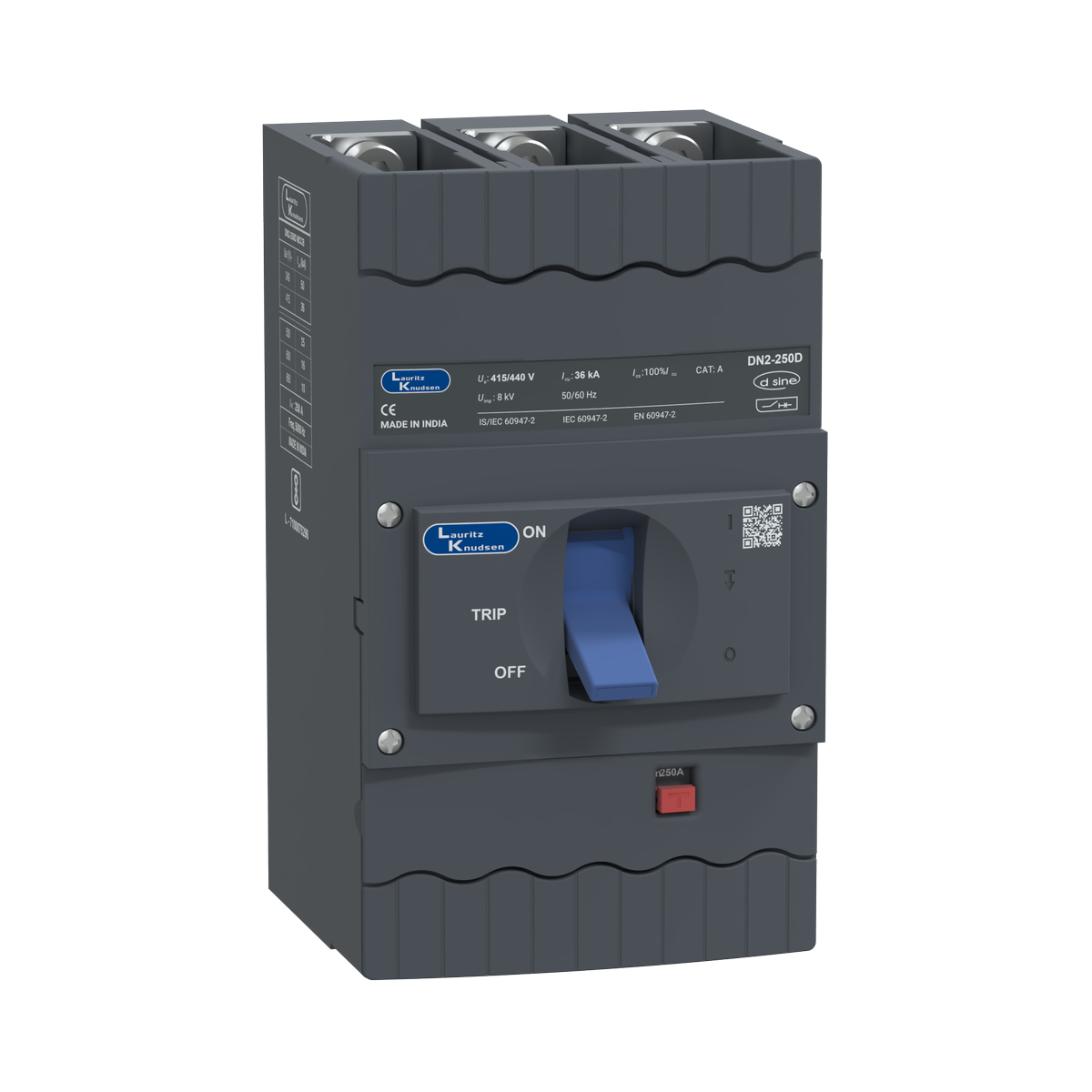

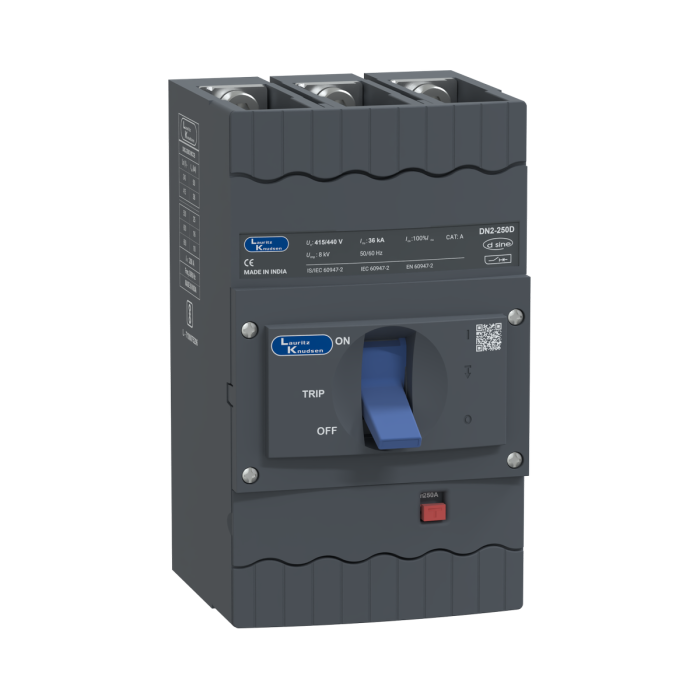

Lauritz Knudsen DN2D, MCCB, 3 Pole, 415V AC, 36kA Breaking Capacity, 250A | Microprocessor Release MTX1.0 | IP40 Protection
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen DN2D MCCB 250A 3 Pole 415V AC 36kA MTX1.0 Thermal Magnetic is a robust molded case circuit breaker engineered to provide efficient protection for electrical distribution systems. Designed to safeguard circuits against overloads & short-circuit faults, it helps protect electrical equipment, cables, motors, transformers, & switchboards from damage caused by abnormal operating conditions.
Featuring a 250A rated current, 3 Pole configuration, 415V AC operating voltage, & a 36kA short-circuit breaking capacity, this MCCB is suitable for commercial buildings, industrial facilities, power distribution panels, infrastructure projects, & utility installations.
The integrated MTX1.0 thermal magnetic trip unit provides combined overload & short-circuit protection, ensuring reliable fault interruption & enhanced operational safety.
How the Mechanism Works
The product functions by:
• Protecting circuits from overload conditions
• Interrupting short-circuit fault currents
• Automatically disconnecting faulty circuits
• Protecting motors, transformers, cables, & equipment
• Supporting safe power distribution
• Reducing risks of electrical damage
• Improving system reliability
• Delivering dependable fault-clearing performance
It serves as a reliable protection device for three-phase electrical installations requiring dependable overload & short-circuit protection.
Electrical Configuration
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: DN2D
• Current Rating: 250A
• Pole Configuration: 3 Pole
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 36kA
• Trip Unit: MTX1.0 Thermal Magnetic
• Application: Circuit Protection & Switching
• Suitable For: Three-Phase Electrical Systems
• Catalog Number: CM92054OOOOX1
Construction & Design
Designed for dependable protection:
• MTX1.0 thermal magnetic trip mechanism
• 250A rated current capacity
• 3-pole protection configuration
• 36kA short-circuit breaking capability
• Durable molded case construction
• Reliable contact system
• Compact installation profile
• Long operational lifespan
Safety & Protection
• Reliable overload protection
• Fast short-circuit interruption
• Enhanced electrical safety
• Improved equipment protection
• High fault-clearing capability
• Reduced operational downtime
• Long-term system reliability
• Consistent performance under demanding conditions
Mounting & Durability
• Suitable for electrical distribution panels
• Compatible with industrial & commercial switchboards
• Rugged molded case construction
• High mechanical endurance
• Quality manufacturing standards
• Designed for continuous operation
• Low maintenance requirements
• Suitable for demanding environments
Application Domains
• Industrial Facilities
• Manufacturing Plants
• Commercial Buildings
• Utility Installations
• Infrastructure Projects
• Data Centers
• Electrical Distribution Panels
• Power Management Systems
Key Features
• DN2D MCCB series
• 250A current rating
• 3 Pole configuration
• 415V AC operation
• 36kA breaking capacity
• MTX1.0 thermal magnetic trip unit
• Overload protection
• Short-circuit protection
• Durable molded case construction
• Long service life
Applications
• Three-phase power distribution
• Motor feeder protection
• Industrial machinery protection
• Electrical panel installations
• Commercial electrical systems
• Utility power networks
• Infrastructure electrical projects
• Equipment circuit protection
FAQs
1. What is the CM92054OOOOX1 MCCB used for?
Ans: It is used for protecting electrical circuits & equipment against overloads & short circuits in three-phase electrical systems.
2. What is the current rating of this MCCB?
Ans: The MCCB is rated at 250A.
3. What does 3 Pole mean?
Ans: A 3 Pole MCCB protects & switches all three phase conductors in a three-phase electrical system.
4. What is the breaking capacity of this MCCB?
Ans: It offers a 36kA short-circuit breaking capacity, allowing safe interruption of high fault currents.
5. What is the MTX1.0 trip unit?
Ans: The MTX1.0 thermal magnetic trip unit provides thermal overload protection & instantaneous magnetic protection against short circuits.
6. Where can this MCCB be installed?
Ans: It can be installed in electrical distribution panels, industrial control systems, commercial buildings, utility installations, & infrastructure projects.
7. Is it suitable for industrial applications?
Ans: Yes, it is designed for industrial, commercial, utility, & infrastructure electrical installations.
8. Does it require frequent maintenance?
Ans: No, its durable construction & reliable protective mechanism ensure long-term, low-maintenance operation under normal operating conditions.
Overview
| Rated Operational Current | 250 |
|---|---|
| Mechanical Life (No. of operating cycles) | 25000 |
| No. of Poles | 3P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | MTX1.0 |
| Rated Short Circuit Breaking capacity Icu(kA) | DN2D MCCB 250 3P 415V AC 36kA MTX1.0 50/60 Hz |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 36kA |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 10000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 105 |
| Height(mm) | 179 |
| Depth(mm) | 96 |
