Lauritz Knudsen DN2SD, MCCB, 3 Pole, 415V AC, 250A | Switch Disconnector | IP40 Protection | MCCBs without protection release
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen DN2SD, MCCB, 3 Pole, 415V AC, 250A | Switch Disconnector | IP40 Protection | MCCBs without protection release
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product

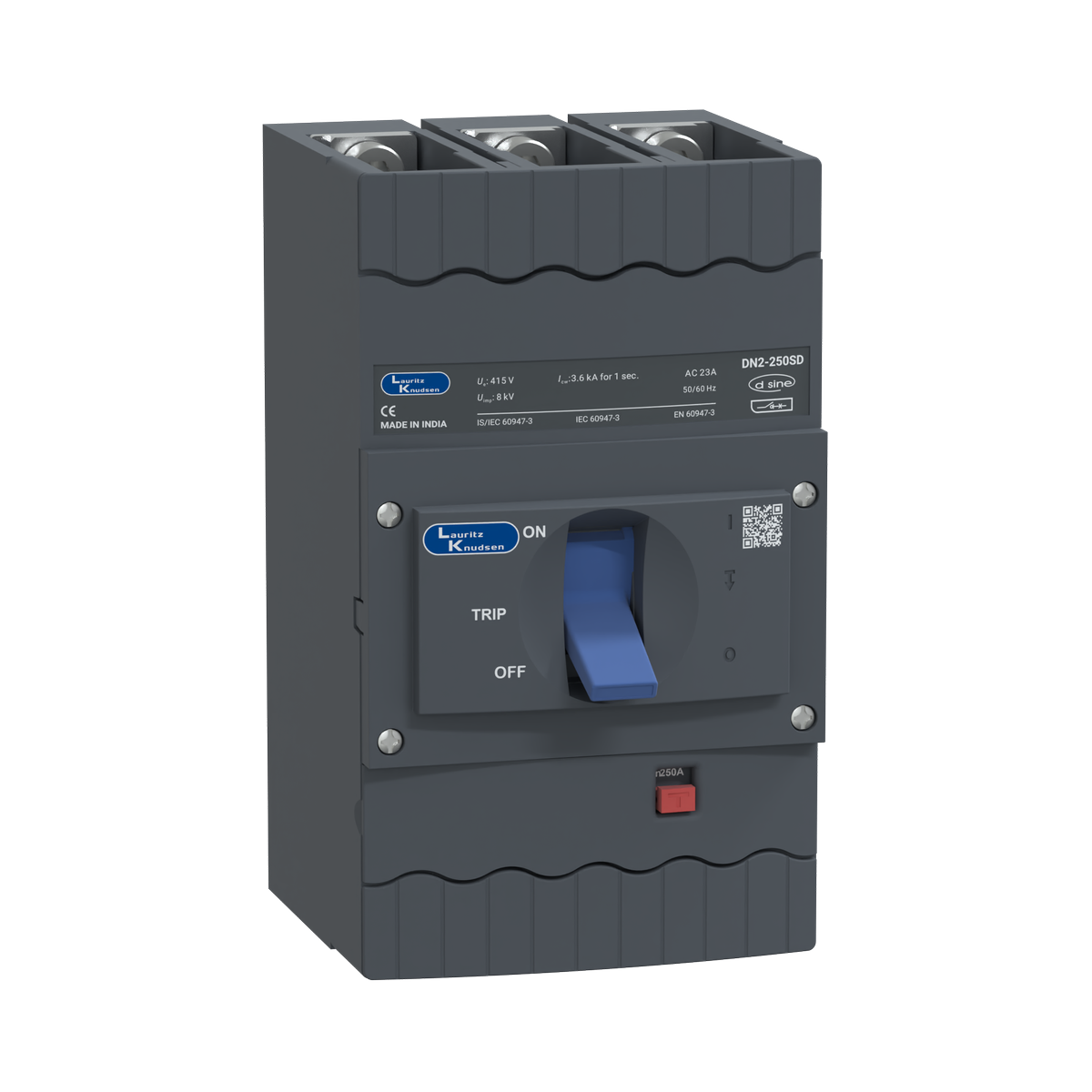

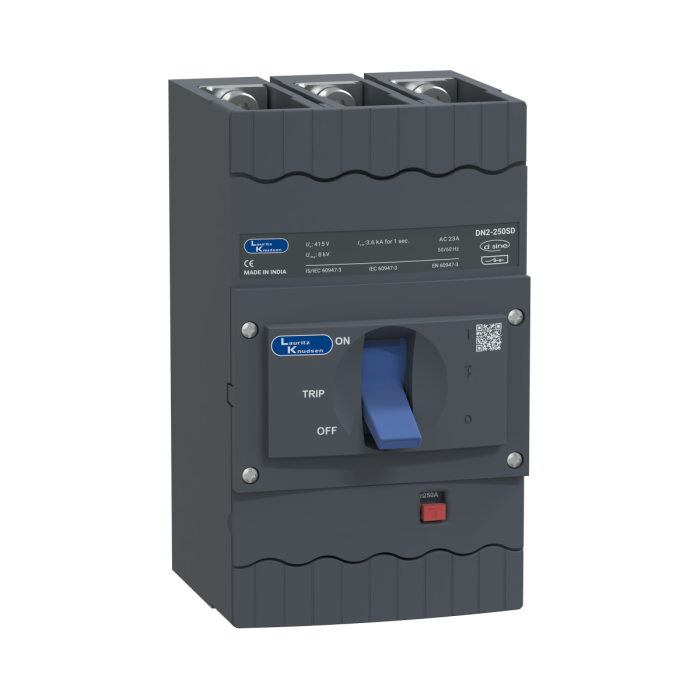

The Lauritz Knudsen DN2SD MCCB 250A 3 Pole 415V AC Magnetic Trip is a rugged molded case circuit breaker engineered to provide dependable switching & short-circuit protection for low-voltage power distribution systems. Designed to protect electrical equipment, motors, transformers, cables, switchboards, & distribution networks from severe fault conditions, this MCCB ensures safe & reliable operation in demanding electrical environments.
Featuring a 250A rated current, 3 Pole configuration, & 415V AC operating voltage, this MCCB is suitable for industrial facilities, manufacturing plants, commercial buildings, infrastructure projects, utility installations, & OEM control panels requiring rapid fault isolation & reliable system protection.
The magnetic trip mechanism is specifically designed to provide instantaneous fault interruption during short-circuit conditions, helping reduce equipment damage, improve safety, & enhance system reliability.
How the Mechanism Works
The product functions by:
• Detecting high fault currents instantly
• Interrupting short-circuit conditions rapidly
• Automatically disconnecting faulty circuits
• Protecting motors, transformers, & cables
• Preventing damage to electrical equipment
• Supporting safe power distribution
• Minimizing system downtime
• Delivering dependable fault-clearing performance
It serves as a critical protection & switching device within electrical distribution systems.
Electrical Configuration
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: DN2SD
• Current Rating: 250A
• Pole Configuration: 3 Pole
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Trip Type: Magnetic Trip
• Application: Short-Circuit Protection & Switching
• Suitable For: Three-Phase Electrical Systems
• Catalog Number: CM96802OOPOOG
Construction & Design
Designed for dependable protection:
• Instantaneous magnetic trip mechanism
• 250A current carrying capacity
• 3-pole switching configuration
• Industrial-grade molded case design
• Durable contact assembly
• Reliable switching operation
• Robust mechanical construction
• Long operational lifespan
Safety & Protection
• Fast fault interruption capability
• Enhanced short-circuit protection
• Improved electrical safety
• Reduced equipment damage risk
• Reliable switching performance
• Improved system uptime
• Stable long-term operation
• Consistent protection characteristics
Mounting & Durability
• Suitable for switchboards & distribution panels
• Compatible with industrial & commercial installations
• Rugged molded case construction
• High mechanical endurance
• Designed for continuous-duty operation
• Low maintenance requirements
• Quality-engineered construction
• Suitable for demanding environments
Application Domains
• Industrial Facilities
• Manufacturing Plants
• Commercial Buildings
• Utility Installations
• Infrastructure Projects
• Electrical Distribution Systems
• OEM Control Panels
• Power Management Applications
Key Features
• DN2SD MCCB series
• 250A current rating
• 3 Pole configuration
• 415V AC operation
• Magnetic trip protection
• Instantaneous short-circuit protection
• Reliable switching functionality
• Durable molded case design
• Industrial-grade construction
• Long service life
Applications
• Three-phase power distribution
• Feeder circuit protection
• Industrial machinery protection
• Motor protection systems
• Transformer protection circuits
• Commercial electrical installations
• OEM panel applications
• Infrastructure electrical projects
FAQs
1. What is the CM96802OOPOOG MCCB used for?
Ans: It is used for short-circuit protection & switching in three-phase electrical distribution systems.
2. What is the current rating of this MCCB?
Ans: The MCCB is rated at 250A.
3. What does 3 Pole mean?
Ans: A 3 Pole MCCB protects & switches all three phase conductors simultaneously in a three-phase electrical system.
4. What is a magnetic trip MCCB?
Ans: A magnetic trip MCCB provides instantaneous tripping in response to short-circuit currents, helping rapidly isolate faults & protect equipment.
5. What voltage is this MCCB designed for?
Ans: It is designed for operation in 415V AC electrical systems.
6. Where can this MCCB be installed?
Ans: It can be installed in switchboards, distribution panels, industrial facilities, commercial buildings, OEM equipment, & infrastructure projects.
7. Is it suitable for industrial applications?
Ans: Yes, its robust construction & dependable magnetic trip protection make it suitable for demanding industrial & commercial electrical systems.
8. Does it require frequent maintenance?
Ans: No, the durable molded case construction & reliable operating mechanism provide long-term, low-maintenance service under normal operating conditions.
Overview
| Rated Operational Current | 250 |
|---|---|
| Mechanical Life (No. of operating cycles) | 25000 |
| No. of Poles | 3P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Conformance to Standards | IEC 60947-1, EN 60947-1, IS/IEC 60947-1 IEC 60947-2, EN 60947-2, IS/IEC 60947-2 IEC 60947-3, EN 60947-3, IS/IEC 60947-3 IEC 60947-4, EN 60947-4, IS/IEC 60947-4 |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | SD |
| Rated Short Circuit Breaking capacity Icu(kA) | DN2SD MCCB 250 3P 415V AC - SD 50/60 Hz |
| Ambient temperature | -5°C to 55°C |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 10000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 105 |
| Height(mm) | 179 |
| Depth(mm) | 96 |
